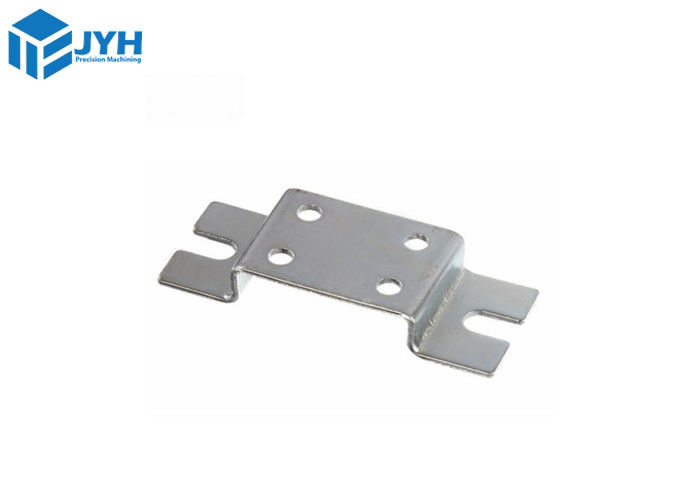

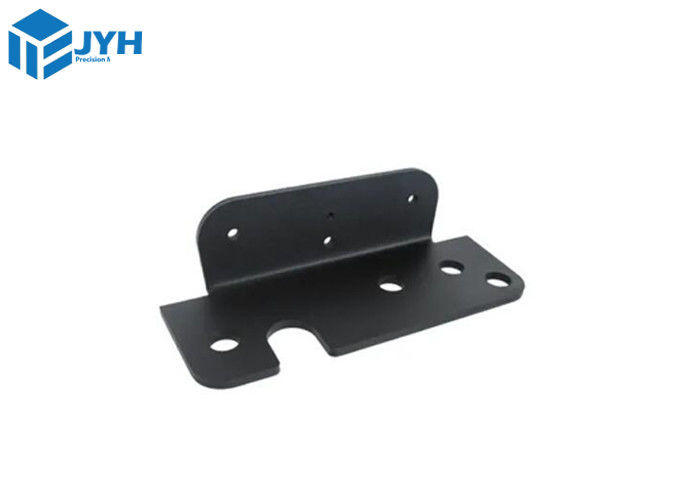

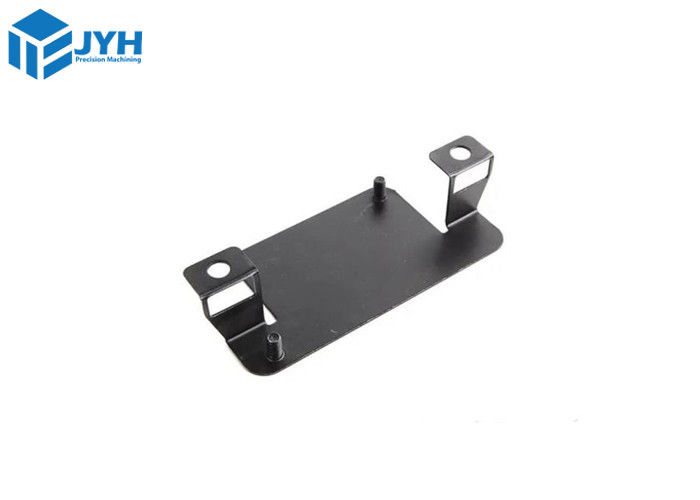

SECC SPCC SGCC Sheet Metal Fabrication Prototype Services By Laser Cutting Process
Place of Origin | China |
---|---|
Brand Name | Sheet Metal Fabrication Service |
Certification | ISO9001 Certificate of quality system/16949 |
Model Number | SPCC,SHCC ,SECC ,SGCC |
Minimum Order Quantity | 1 piece |
Price | USD 20-100 pieces,negotiable |
Packaging Details | Use boxes made of corrugated cardboard,Wrap with bubbles facing inward or Custom wooden cases larger than 25KG. |
Delivery Time | 5-8 works day |
Payment Terms | T/T, Western Union,Paypal |
Supply Ability | 1000 piecs one weeks |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xName | Sheet Metal Prototyping Services | Process Way | Sheet Metal Process |
---|---|---|---|
Sheet Thick | 0.5-6mm,Can Choose | Structure And Size | It Can Be Customized. |
Tolerance | ±0.01mm, Based On Clients' Drawings | Lead Time | Can Support Your Target Delivery Time |
Sheet Material | SPCC,SECC,SGCC , Al 5052 , SS316 / SS304 | Surface Treatment | Powder Coating , Zinc Plating , Nickel Plating , Based On Customer's Requst, |
High Light | SGCC Sheet Metal Prototyping Services,SECC Sheet Metal Fabrication Prototype |
SECC SPCC SGCC Sheet Metal Fabrication Prototype Services By Laser Cutting Process
JYH Precision Sheet Metal Fabrication Service
We specialize in lighter gauge materials, anywhere from .008 thick up to .250 in some alloys. We work in steel, aluminum, pre-coated alloys, copper, brass, and some plastics, and utilize three CNC turret presses to punch out any contour you might require. These are backed up by complete quality control, shearing, deburring, brake, welding and hardware departments. We only use top grade, prime materials, with traceability back to the original manufacturer, for every piece we create. We can provide certificates of conformance, material, and plating/paint certifications for any job that requires it. All certifications are scanned by job and kept on record indefinitely.
- ISO 9001: 2015
- Fast delivery service with DHL/FEDEX/UPS
- Standard-DIN-2768-1-fine
- Free quotation with DFM review in 1 hours
- Deburr all sharp edges: 0.1 - 0.2 mm
- Surface roughness: Ra 1.6
- Sandblast 180# before anodize color
What Are Laser-Cut Prototypes?
Prototyping using laser cutting is the non-contact cutting process of using electromagnetic energy to create parts for design and functional verification prior to mass production. Laser cutting technology is made possible by the use of a focused, coherent beam of light that is conditioned by a series of mirrors and lenses to create a spot as small as one square micron.
JYH Precision Quality assurance
Our unwavering commitment to product quality assurance in sheet metal fabrication is evident in every aspect of our process.
Our ISO 9001:2015, ISO 13485, and AS9100D certifications reinforce our commitment to maintaining the highest standards.
JYH Precision Available materials for sheet metal:
Below is a list of our standard available metals for sheet metal fabrication
Aluminum
|
Stainless steel
|
Mild steel
|
Copper
|
5052/6061 | 304/316 | 1018/A36 | C110 |
JYH Precision Sheet Metal Fabrication Standards
Dimension Detail | Metric Units |
Imperial Units
|
Edge to edge, single surface |
+/- 0.127 mm |
+/- 0.005 in. |
Edge to hole, single surface |
+/- 0.127 mm |
+/- 0.005 in. |
Hole to hole, single surface |
+/- 0.127 mm |
+/- 0.005 in.
|
Bend to edge / hole, single surface |
+/- 0.254 mm |
+/- 0.010 in. |
Edge to feature, multiple surface |
+/- 0.762 mm |
+/- 0.030 in. |
Why use JYH’s for sheet metal fabrication?
Fast quoting & Free DFM feedback
|
High Quality & reliability |
Build and edit your quote within 30 minutes. Review your parts for manufacturability and assess the cost of different materials, processes and lead times for your project in real time.
|
Dedicated JYH’s team to ensure your parts consistently meet your quality expectations. We also offer phone, email and chat support for any concerns or questions you may have. |
JYH Precision Available Sheet Metal Fabrication Processes
Processes | Description | Thickness | Area |
Laser Cutting |
Laser cutting is a thermal cutting process that uses high-power laser to cut metals. |
Up to 40 mm
|
Up to 4000 x 6000 mm |
Water jet Cutting |
It finds particular utility in the cutting of highly thick metals, notably steel. |
Up to 200 mm |
Up to 3000 x 6000 mm |
Plasma Cutting |
CNC plasma cutting proves effective for slicing through thicker sheet metals. |
Up to 40 mm
|
Up to 4000 x 6000 mm |
Bending |
It is utilized to sculpt customized prototypes of sheet metal subsequent to the cutting procedure. |
Up to 20 mm |
Up to 4000 mm |
JYH Precision surface finishes for sheet metal
Surface finishes are applied after machining and can change the appearance, surface roughness, hardness and chemical resistance of the produced parts.
Picture of surface finish
|
Name
|
Description
|
Standard surface finish |
This is our standard finish. Parts as delivered as cut and bent, no additional treatment applied. Sharp edges are broken and deburred for safe handling. | |
Sand Bead Blasted | Parts are bead blasted with glass beads which results in a grainy texture. Sharp edges are broken and deburred for safe handling. | |
Brushed | Parts are manually brushed with grit #180 after cutting and bending. Sharp edges are broken and deburred for safe handling. Ideal to reduce the surface roughness of a part. | |
Brused + Anodized type II | Parts are dipped in an anodizing bath (type II) after manual brushing. Ideal for increasing the corrosion resistance of the part. Ideal for increasing the corrosion resistance of the part. | |
Powder coating | Powder coating layer is applied directly after fabrication. Sharp edges are broken and deburred for safe handling. | |
Black oxidization | Parts are dipped in a black oxide bath after fabrication. Ideal to improve improve corrosion resistance and minimize light reflection in steel components. |
JYH Precision Shipping way
JYH Precision Payment method
JYH Precision workshop
Frequently Asked Questions
1. What’s K factor in sheet metal?
K factor is the sheet metal process is the ratio of neutral axis to material thickness. This value changes with respect to the various physical properties and thickness of materials used.
2. What are the tolerances for fabricated parts?
Sheet metal fabrication tolerances refer to the acceptable deviations for features of sheet metal parts required for accurate and consistent installation and integration.For sheet metal parts, ISO 2768-mk is usually used to ensure proper control of the elements of geometry and size.
The following will show you 7 tolerance standards range of linear and angular dimensions, flatness & straightness, cylindricity, and circularity.
3. How much does sheet metal fabrication cost?
Every aspect of a sheet metal fabrication project comes with an associated cost — the design, possible prototype, finishing processes, and others. Asides from the process itself, materials also cost money.
JYH is your best partner of Sheet Metal Fabrication SPCC Steel 7075 Parts Service For Medical Equipment!
