UAV Accessories Magnesium Alloy Parts Processing By Precision Machining Service







We can provide Precise Tolerance with +/- 0.001mm of CNC Machining Magnesium Alloy Services.

JYH's Machining Magnesium Alloy service is a good choice for high quality, ISO 9001 certified parts.





Magnesium



Magnesium is lightweight and has excellent castability and high specific strength, which gives it application in the automotive industry.

Magnesium has applications in producing engine blocks, gearboxes, clutch housings, wheels and engine cradles, and oil pans.



Lead time: <10 days

Max Part Size: 300 x 100 x 200 cm





Application Range:



Car engine accessory bracket, clutch housing, gearbox housing, instrument panel frame, steering wheel frame, seat frame, valve body mobile phone,Drone/camera.



ISO9001 Drone Camera Parts , Precision Magnesium Alloy Machining Service 0








The Characteristics of Magnesium Parts Can be as follows:



  1. CNC machining magnesium product have high strength, the ratio of strength to quality of magnesium alloy has a capacity.
  2. Magnesium parts have small elastic modulus, good rigidity, strong shock resistance, and are not easily deformed after long-term use.
  3. Magnesium machining product have good resistance to electromagnetic interference and shielding.



Type


 Tolerance

Linear dimension


+/- 0.015 mm
+/- 0.002 inch

Hole diameters (not reamed)

+/- 0.015 mm
+/- 0.002 inch

Shaft diameters

+/- 0.015 mm
+/- 0.002 inch

Part size's limit

850 * 650 *550 mm
39.0 * 23.5 * 23.5 inch





Available material





Material Type Tensile Strength Elongation Yield Stress Density Maximum Temperature Tensile Modulus
AZ91D 230MPa 3.0% 150MPa 1.81g/㎤ 595℃ 44.8GPa
AZ80A 290MPa 2.0~5.0% 179MPa 1.81g/㎤ 595℃ 45Gpa
AZ31B 280MPa 8% 160MPa 1.76g/㎤ 595℃ 46GPa
ZK61B 330Mpa 12% 178MPa 1.81g/㎤ 630℃ 47GPa
AZ61B 280Mpa 14% 165Mpa 1.81g/㎤ 653℃ 45GPa
AM60B 221MPa 4.0% 131Mpa 1.81g/㎤ 428℃ 44.8GPa







Quality Inspection



  • Customers' CAD drawings can be directly imported in the coordinate measuring machines (CMM) for a direct comparison to the dimensions that are taken from the physical part.All components and sub-assemblies are 100% inspected,identified with a logo if required and a final inspection is generated pertaining to all the critical dimensions.



  • All testing is conducted in a 20 degree Celsius climate-controlled inspection room and the CMM is calibrated to

GB/T 16857.2-2006 (ISO10360-2:2001) standards.




ISO9001 Drone Camera Parts , Precision Magnesium Alloy Machining Service 1



Our payment method



ISO9001 Drone Camera Parts , Precision Magnesium Alloy Machining Service 2





Our shipping method



ISO9001 Drone Camera Parts , Precision Magnesium Alloy Machining Service 3



After sales service



ISO9001 Drone Camera Parts , Precision Magnesium Alloy Machining Service 4



Our workshop



ISO9001 Drone Camera Parts , Precision Magnesium Alloy Machining Service 5

FAQ:


1-Is magnesium hard to machine?

  • Drilling, milling, turning, and other processes are smoother when using magnesium, and machining the material requires a significantly lower cutting force and overall production time than other metals.

2-Can you CNC magnesium?

  • Magnesium is a lightweight metal with high level of machining ability that can be CNC machined to create parts with high strength and excellent corrosion resistance. However, magnesium can be difficult to machine due to its tendency to ignite or explode if proper precautions are not taken



3-How many machines do you have?

  • We currently have more than 60 machines: roughly 40+ CNC mills and 30 Injection mold machine,10+ 3D printers. With our long history of growth, this number is always changing.



4-How do I get a quote?

  • To get a quote for all of our services, simply send us your 3D CAD model to us. You'll get an interactive quote within hours with free design feedback. If there are problem areas in the submitted design,we will provide free design feedback(DFM).

5-What types of files do you accept?

  • We can accept native SolidWorks or ProE files as well as solid 3D CAD models from other CAD systems output in IGES (.igs), STEP (.stp), ACIS (.sat) or Parasolid (.x_t or .x_b) format.

6-Do you provide First Article of Inspection (FAI) Service?

  • We can provide FAI as part of the unlimited offer.





7-What is payment term does your company can be acceptable?

  • We can accept T/T (50 prepayment should be paid before start the production; the 50% remaining payment should be paid after finish the project).

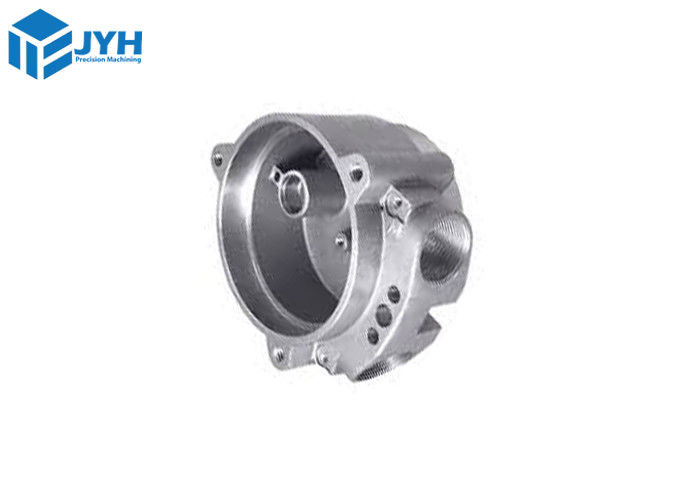

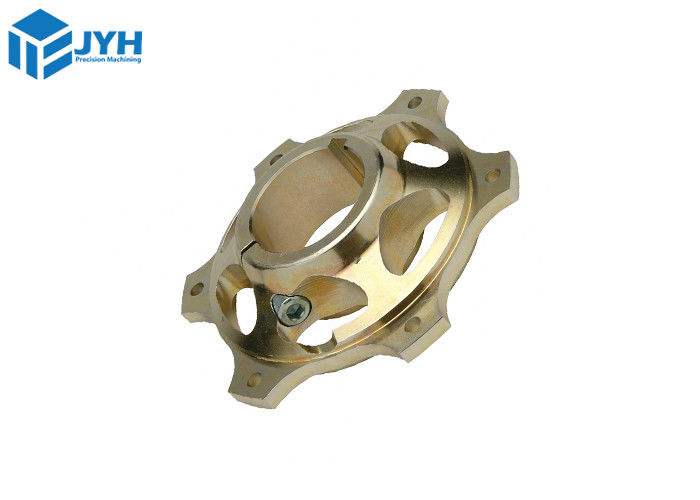

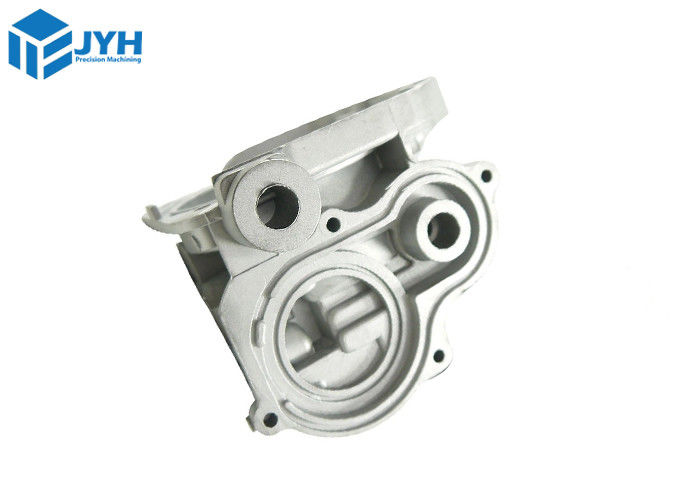

Magnesium​ Sample Pictures for your reference:




ISO9001 Drone Camera Parts , Precision Magnesium Alloy Machining Service 6


ISO9001 Drone Camera Parts , Precision Magnesium Alloy Machining Service 7



JYH technology, Your Professional CNC Machining Magnesium Alloy Services Partner!
