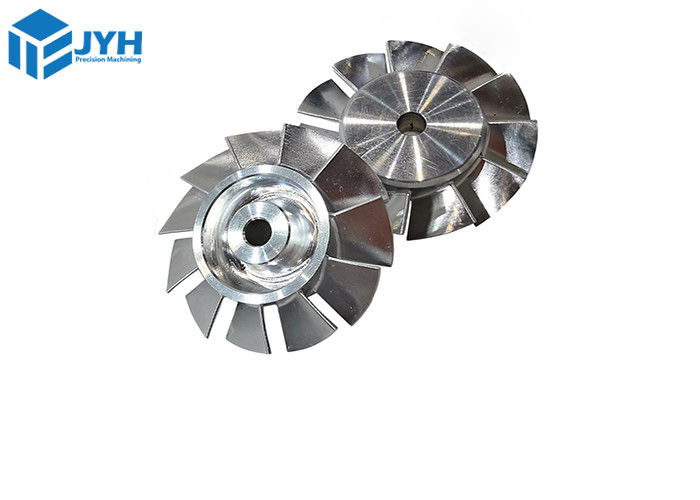

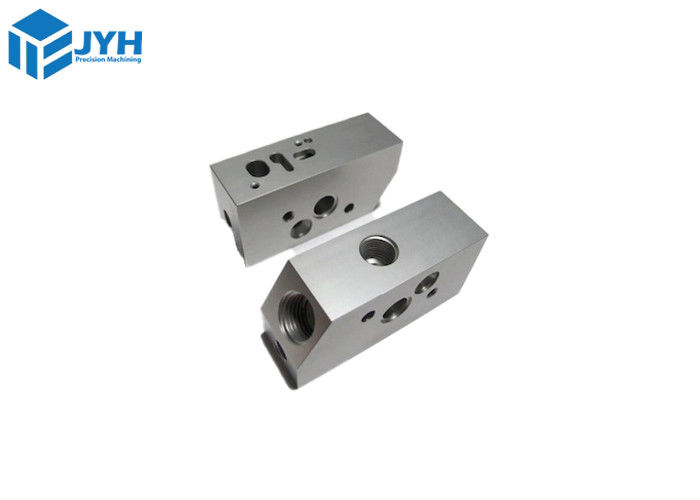

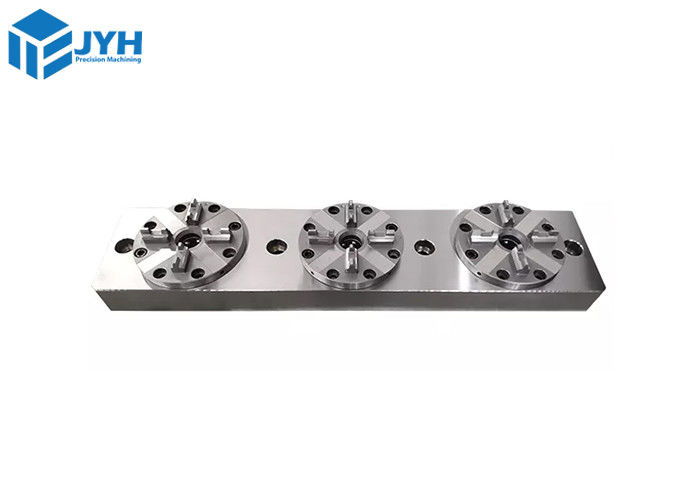

Large 5 Axis Machining Parts OEM / ODM CNC Machining Aerospace Parts
| Place of Origin | China |
|---|---|
| Brand Name | JYH Technology |
| Certification | ISO9001 Certificate of quality system/16949 |
| Model Number | metal prototype |
| Minimum Order Quantity | 1 Piece |
| Price | USD 10-200 pieces |
| Packaging Details | For small parcels less than 25KG, we generally adopt paper cartons; For goods over 25KG, we will use custom wooden cases. |
| Delivery Time | 2-5 works day |
| Payment Terms | T/T/Paypal, Western Union |
| Supply Ability | 1000 pieces one week |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | Large 5 Axis Machining Parts | Tolerance | +/-0.001 Mm To +/-0.005mm |
|---|---|---|---|
| Express Way | DHL/FEDEX/UPS | Material | AL 6061 Serie/Stainless Steel/Magnesium Alloy/Titanium Alloy/Copper |
| Lead Time | 5-10 Working Days | Process Way | CNC 5 Axis Machining/Lathe/milling/Turning |
| Surface Finish | Anodized/Electroplating/Passivation/Blackening And So On | ||
| High Light | Large 5 Axis Machining Parts,ODM CNC Machining Aerospace Parts,OEM CNC Machining Aerospace Parts |
||
Product Description
5 Axis CNC Machining Services With High Gloss Ra 0.2μ Precision Metal Parts
Get high-precision, accuracy, intricate machined parts with extremely complex geometries with our 5 axis
CNC machining services. Competitive pricing and fast turnaround.
Try JYH technology Now!All information are secure and confidential by us.
Our standard tolerances for CNC machining metals are compliant with DIN-2768-1-fine,
while for plastics parts it is DIN-2768-1-medium,standard tolerance for a CNC machining is typically ± 0.005”.
The tightest machining tolerances possible are in the range of ±0.001”.
Parts Certifications
ISO 9001:215 | AS9100D | ITAR Registered
►Free & Automatic DFM feedback
►Tolerances down to ±0.0004″ (0.01mm)
►24/7 engineering support
Tolerance for 5 Axis CNC Machining Services
| Type |
Tolerance |
| Linear dimension |
+/- 0.015 mm +/- 0.002 inch |
| Hole diameters (not reamed) | +/- 0.015 mm +/- 0.002 inch |
| Shaft diameters | +/- 0.015 mm +/- 0.002 inch |
| Part size's limit | 850 * 650 *550 mm 39.0 * 23.5 * 23.5 inch |
5 Axis CNC Machining Part Size Standards
| Classification | Minimum Size (mm) | Maximum Size (mm) | Common Applications |
|---|---|---|---|
| Ultra-Precision Components | 0.1 | 1 | Watch components, micro devices |
| Micro Machined Parts | 1.1 | 10 | Medical devices, small electronics |
| Small Machined Parts | 10.1 | 50 | Aerospace, automotive sensors |
| Medium Machined Parts | 50.1 | 200 | Automotive, defense, industrial tools |
| Large Machined Parts | 200.1 | 1000+ | Heavy machinery, construction |
Surface Finish Options for 5 Axis CNC Machining Services
Our part finishing services are exceptional as our teams are experts in plastic, composite, and metal surface finishing.
Furthermore, we have state-of-the-art machines and infrastructure to bring your idea to life.
Quality Inspection
- In addition to our stringent in-process controls, all components must pass a thorough final inspection.
we have a coordinate measuring machine, salt spray testing machines, profile projectors and other precision
measuring devices, etc.
- Customers' CAD drawings can be directly imported in the coordinate measuring machines (CMM) for a
direct comparison to the dimensions that are taken from the physical part.
- All testing is conducted in a 20 degree Celsius climate-controlled inspection room and the CMM is calibrated to
GB/T 16857.2-2006 (ISO10360-2:2001) standards. All components and sub-assemblies are 100% inspected,
identified with a logo if required and a final inspection is generated pertaining to all the critical dimensions.
Our payment method
Our shipping method
Frequently Asked Questions
► When should I choose 5-axis CNC machining?
The flexibility of 5-axis CNC machining allows the creation of complex components with complex shapes and geometrical details.
The stability of the machining tool also gives more consistent and smoother surface finishes.
Therefore, you should choose 5-axis machining whenever you need to produce complex parts with tight tolerances.
► What’s the maximum part size for 5-axis CNC machining?
Our 5-axis milling machines can accommodate a length of 42 inches bar stock.
This allows us to work on a wide range of projects for various applications.
► How much does your CNC machining service cost?
The cost of your CNC machining projects is not fixed as it depends on the characteristics of your project
such as the design, and tolerances. Machining times of the material to be used in the project also contribute to this pricing.
For example, if you’re making a part that has a combined machining and material cost of $2 and a setup cost of $200,
one part will cost $202. However, if you make 200 parts, each would cost $3!
Our workshop
JYH technology, Your Professional CNC Machining Low Volume Manufacturing Services Partner!
