Manufacturing Precision Parts Manufactured By 5 Axis CNC Machining services
| Place of Origin | China |
|---|---|
| Brand Name | JYH precise Technology |
| Certification | ISO9001 Certificate of quality system/16949 |
| Model Number | metal prototype |
| Minimum Order Quantity | 1 Piece |
| Price | USD 10-200 pieces |
| Packaging Details | For small parcels less than 25KG, we generally adopt paper cartons; For goods over 25KG, we will use custom wooden cases. |
| Delivery Time | 2-5 works day |
| Payment Terms | T/T/Paypal, Western Union |
| Supply Ability | 1000 pieces one week |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | Manufacturing Precision Parts Manufactured By 5 Axis CNC Machining Services | Material | AL 6061 Serie/Stainless Steel/Magnesium Alloy/titanium Alloy/copper/Bronze |
|---|---|---|---|
| Tolerance | +/-0.001 Mm To +/-0.002 Mm | Types | Manufacturing Precision Parts Manufactured By 5 Axis CNC Machining Services |
| Process Way | CNC 5 Axis Machining/Lathe/milling/Turning | Surface Finish | Electroplating/Passivation/Blackening And So On |
| Lead Time | 1-5 Days | Express Way | DHL/FEDEX/UPS |
Product Description

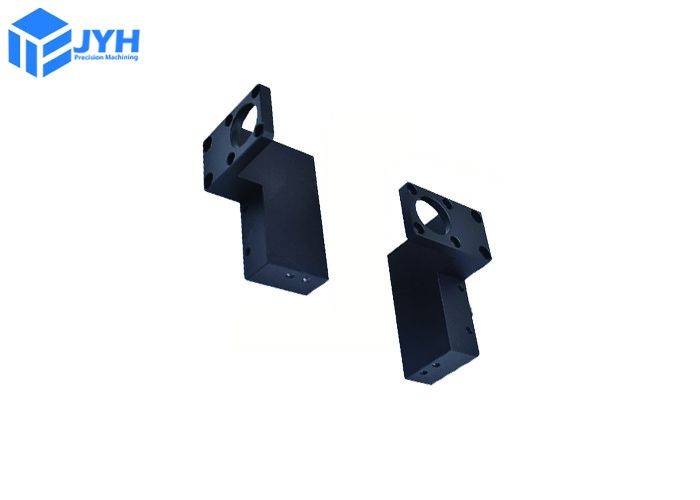

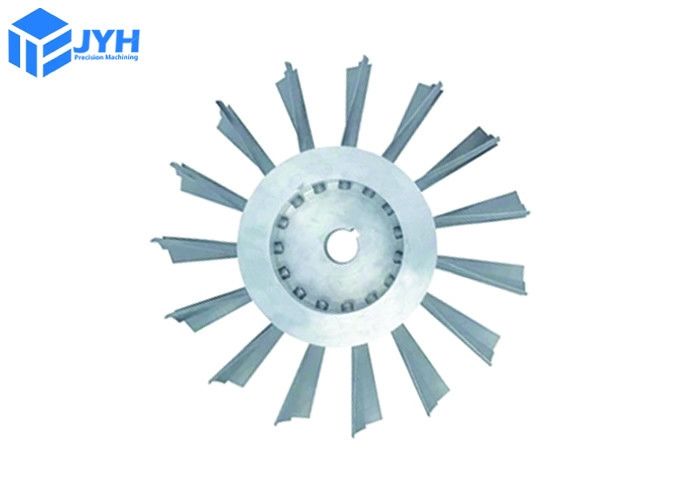

Manufacturing Precision Parts Manufactured By 5 Axis CNC Machining Services
Precision Parts Manufactured by 5 Axis CNC Machining
Precision parts manufactured by 5 Axis CNC machining are made using a computer numeric controlled (CNC) machine.
The machine tool moves along five axes simultaneously, allowing for precise and accurate cuts.
This type of CNC machining is used for complex parts that require intricate shapes or perfect surface.
5 Axis CNC machining can produce parts with very tight tolerances, making it ideal for applications where precision is critical.
In addition, the ability to move the cutting tool in multiple directions makes 5 Axis CNC machining well suited for creating
three-dimensional shapes.
The advantages to using 5 Axis CNC machining, including:
- Precision: 5 Axis CNC machining can produce parts with extremely tight tolerances, making it ideal for applications where precision is essential.
- Flexibility: The ability to move the cutting tool in multiple directions allows for greater flexibility when creating complex shapes or detailed features.
- Speed: 5 Axis CNC machines are generally faster than traditional machining methods, allowing for increased production efficiency.
- Cost-effectiveness: When compared to other methods of manufacturing precision parts, 5 Axis CNC machining is often more cost-effective.
Tolerance details
| Type |
Tolerance |
| Linear dimension |
+/- 0.015 mm +/- 0.002 inch |
| Hole diameters (not reamed) | +/- 0.015 mm +/- 0.002 inch |
| Shaft diameters | +/- 0.015 mm +/- 0.002 inch |
| Part size's limit | 850 * 650 *550 mm 39.0 * 23.5 * 23.5 inch |
Multi-Axis Machining Services - Speed Design to Manufacturing
We offer multi-axis CNC machining services that provide a quicker path from design to manufacturing. Our extensive experience with 3, 4, and 5 axis machines allows us to meet your needs for speed, precision, and quality. We can work with a wide range of materials, including aluminum, brass, bronze, stainless steel, and more.
5 Axis Machined Components and Surface Treatment
For high-precision machining, a 5 Axis CNC machining center is ideal. These advanced machines can complete complex cutting tasks quickly and accurately. 5 Axis machining centers have the ability to move in five axes simultaneously, thus enabling more accurate and perfect surface parts to be manufactured. They also reduce secondary operations, such as hand polishing or sanding, saving time and cost. Additionally, 5 Axis machining centers are used in a wide range of applications, from aerospace engineering to medical device manufacturing. These machines offer a high level of automation, precision and speed, making them ideal for any high precision machining project.
Parts Certifications
ISO 9001:215 | AS9100D | ITAR Registered
Precision Machined Part Size Standards
| Classification | Minimum Size (mm) | Maximum Size (mm) | Common Applications |
|---|---|---|---|
| Ultra-Precision Components | 0.1 | 1 | Watch components, micro devices |
| Micro Machined Parts | 1.1 | 10 | Medical devices, small electronics |
| Small Machined Parts | 10.1 | 50 | Aerospace, automotive sensors |
| Medium Machined Parts | 50.1 | 200 | Automotive, defense, industrial tools |
| Large Machined Parts | 200.1 | 1000+ | Heavy machinery, construction |
Quality Inspection
- In addition to our stringent in-process controls, all components must pass a thorough final inspection.
we have a coordinate measuring machine, salt spray testing machines, profile projectors and other precision
measuring devices, etc.
- Customers' CAD drawings can be directly imported in the coordinate measuring machines (CMM) for a
direct comparison to the dimensions that are taken from the physical part.
- All testing is conducted in a 20 degree Celsius climate-controlled inspection room and the CMM is calibrated to
GB/T 16857.2-2006 (ISO10360-2:2001) standards. All components and sub-assemblies are 100% inspected,
identified with a logo if required and a final inspection is generated pertaining to all the critical dimensions.
Our payment method
Our shipping method
Our workshop
JYH technology, Your Professional Manufacturing Precision Parts Manufactured By 5 Axis CNC Machining Services Partner!
