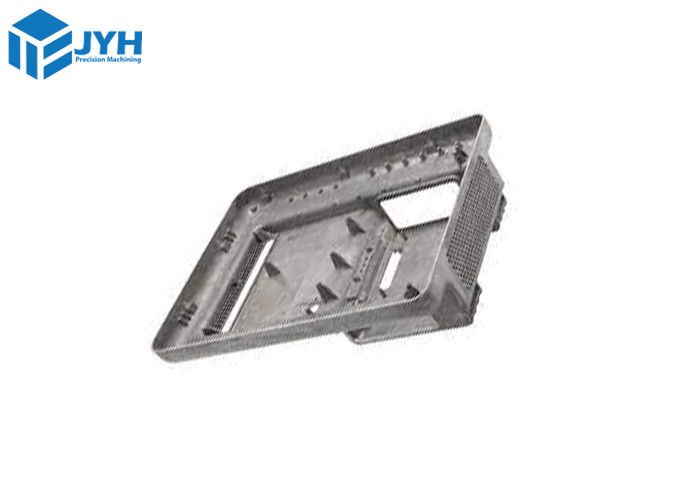

High Accurate Custom Magnesium Parts Manufacturing for UAV Aerial Photography Remote Control

  • High Accurate Custom Magnesium Parts Manufacturing for UAV Aerial Photography Remote Control
  • High Accurate Custom Magnesium Parts Manufacturing for UAV Aerial Photography Remote Control
  • High Accurate Custom Magnesium Parts Manufacturing for UAV Aerial Photography Remote Control
  • High Accurate Custom Magnesium Parts Manufacturing for UAV Aerial Photography Remote Control
Place of Origin China
Brand Name Precision CNC Magnesium Alloy Parts
Certification ISO9001 Certificate of quality system/16949
Model Number AZ31B / AZ91D
Minimum Order Quantity 1 piece
Price USD 20-100 pieces,negotiable
Packaging Details Use boxes made of corrugated cardboard,Wrap with bubbles facing inward or Custom wooden cases larger than 25KG.
Delivery Time 2-5 works day
Payment Terms T/T, Western Union,Paypal
Supply Ability 1000 piecs one weeks

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name Custom Magnesium Parts Manufacturing Delivery By Air/By Sea/By Express
Tolerance ±0.005mm Inspection Equipment CMM
Processing Time 2-3 Days Packaging Carton Box/Wooden Box/Pallet
Surface Hardness HV200
Highlight

Custom Magnesium Parts Manufacturing

,

High Accurate Custom Magnesium Parts
Leave a Message
Product Description

High Accurate Custom Magnesium Parts Manufacturing for UAV Aerial Photography Remote







We can provide Precise Tolerance with +/- 0.001mm of CNC Machining Magnesium Alloy Services.

JYH's Machining Magnesium Alloy service is a good choice for high quality, ISO 9001 certified parts.





High Accurate Custom Magnesium Parts Manufacturing for UAV Aerial Photography Remote Control 0





Manufacturing Capabilities



Our facility has CNC machining centers, CNC lathes, CNC longitudinal lathes, slow-speed wire cutting machines and so on, providing much manufacturing flexibility. We are able to hold very tight geometric tolerances for diameter, true position, profile, and flatness and so on.





Application Range:



Car engine accessory bracket, clutch housing, gearbox housing, instrument panel frame, steering wheel frame, seat frame, valve body mobile phone,Drone/camera.Magnesium alloy is very suitable for this kind of product because it is very light.





High Accurate Custom Magnesium Parts Manufacturing for UAV Aerial Photography Remote Control 1



High Accurate Custom Magnesium Parts Manufacturing for UAV Aerial Photography Remote Control 2





Available material



Material Type Tensile Strength Elongation Yield Stress Density Maximum Temperature Tensile Modulus
AZ91D 230MPa 3.0% 150MPa 1.81g/㎤ 595℃ 44.8GPa
AZ80A 290MPa 2.0~5.0% 179MPa 1.81g/㎤ 595℃ 45Gpa
AZ31B 280MPa 8% 160MPa 1.76g/㎤ 595℃ 46GPa
ZK61B 330Mpa 12% 178MPa 1.81g/㎤ 630℃ 47GPa
AZ61B 280Mpa 14% 165Mpa 1.81g/㎤ 653℃ 45GPa
AM60B 221MPa 4.0% 131Mpa 1.81g/㎤ 428℃ 44.8GPa
WE43 225MPa 14% 165Mpa 1.81g/㎤ 630℃ 48GPa
QE22 280MPa 2.0~4.0% 170MPa 1.72g/㎤ 565℃ 47GPa






The Characteristics of Magnesium Parts Can be as follows:



  1. CNC machining magnesium product have high strength, the ratio of strength to quality of magnesium alloy has a capacity.
  2. Magnesium parts have small elastic modulus, good rigidity, strong shock resistance, and are not easily deformed after long-term use.
  3. Magnesium machining product have good resistance to electromagnetic interference and shielding.
  4. Magnesium machining product do not pollute the environment.



The type of Magnesium and Tolerance







Type


 Tolerance

Linear dimension


+/- 0.015 mm
+/- 0.002 inch

Hole diameters (not reamed)

+/- 0.015 mm
+/- 0.002 inch

Shaft diameters

+/- 0.015 mm
+/- 0.002 inch

Part size's limit

850 * 650 *550 mm
39.0 * 23.5 * 23.5 inch







Quality Inspection



  • Based on our stringent in-process controls, all components must pass a thorough final inspection.

we have a coordinate measuring machine, salt spray testing machines, profile projectors and other precision

measuring devices, etc.



  • Clients' CAD drawings can be directly imported in the coordinate measuring machines (CMM) for a

direct comparison to the dimensions that are taken from the physical part.



  • All testing is conducted in a 20 degree Celsius climate-controlled inspection room and the CMM is calibrated to

GB/T 16857.2-2006 (ISO10360-2:2001) standards. All components and sub-assemblies are 100% inspected.



High Accurate Custom Magnesium Parts Manufacturing for UAV Aerial Photography Remote Control 3



Our payment method



High Accurate Custom Magnesium Parts Manufacturing for UAV Aerial Photography Remote Control 4





Our shipping method



High Accurate Custom Magnesium Parts Manufacturing for UAV Aerial Photography Remote Control 5



Our workshop



High Accurate Custom Magnesium Parts Manufacturing for UAV Aerial Photography Remote Control 6

FAQ:


1-Is magnesium hard to machine?

  • Drilling, milling, turning, and other processes are smoother when using magnesium, and machining the material requires a significantly lower cutting force.

2-Can JYH CNC magnesium?

  • Magnesium is a lightweight metal with high level of machining ability that can be CNC machined to create parts with high strength and excellent corrosion resistance.



3-How many machines do you have?

  • We currently have more than 60 machines: roughly 40+ CNC mills and 30 Injection mold machine,10+ 3D printers. With our long history of growth, this number is always changing.



4-How do I get a quote?

  • To get a quote for all of our services, simply send us your 3D CAD model to us. You'll get an interactive quote within hours with free design feedback. If there are problem areas in the submitted design,we will provide free design feedback(DFM).

5-What types of files do you accept?

  • We can accept  IGES (.igs), STEP (.stp), ACIS (.sat) or Parasolid (.x_t or .x_b) format.

6-Do you provide First Article of Inspection (FAI) Service?

  • We can provide FAI as part of the unlimited offer.





7-What is payment term does your company can be acceptable?

  • We can accept T/T (50 prepayment should be paid before start the production; the 50% remaining payment should be paid after finish the project).




Magnesium​ Sample Pictures for your reference:




High Accurate Custom Magnesium Parts Manufacturing for UAV Aerial Photography Remote Control 7






JYH technology, Your Professional CNC Machining Magnesium Alloy Services Partner!
