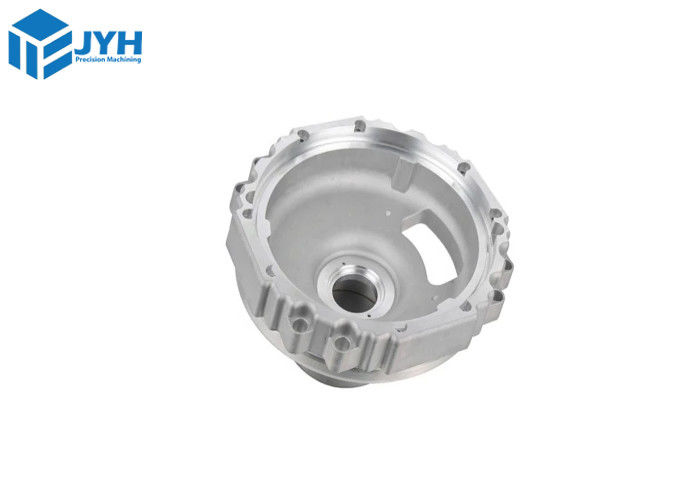

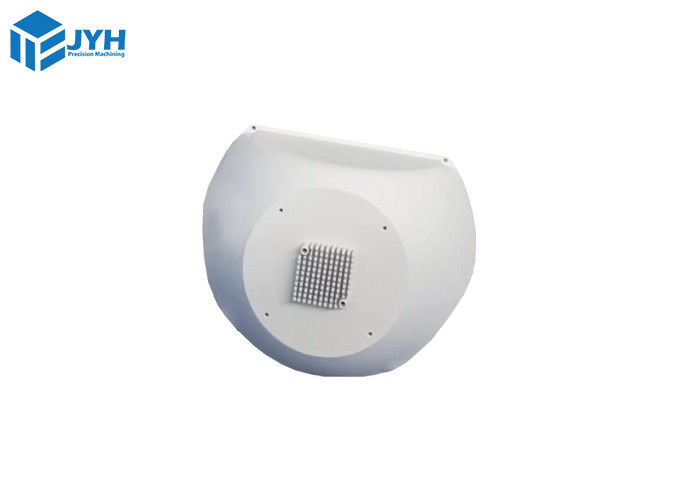

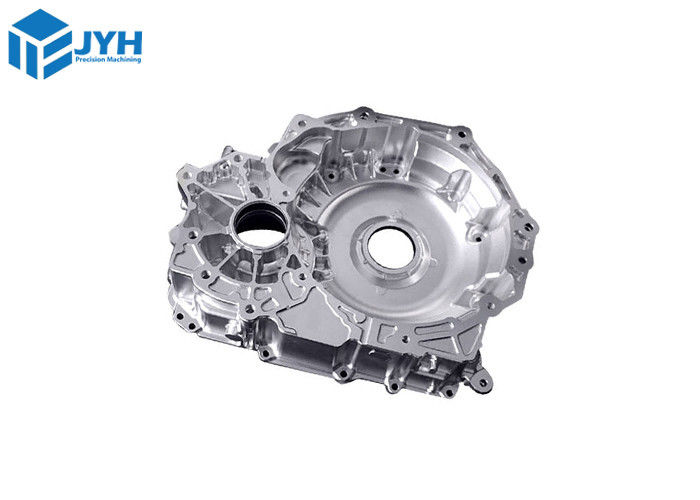

ISO9001 Precision CNC Machining Magnesium / Custom Machined Metal Parts

Place of Origin China
Brand Name Precision CNC Magnesium Alloy Parts
Certification ISO9001 Certificate of quality system/16949
Model Number AZ31B / AZ91D
Minimum Order Quantity 1 piece
Price USD 20-100 pieces,negotiable
Packaging Details Use boxes made of corrugated cardboard,Wrap with bubbles facing inward or Custom wooden cases larger than 25KG.
Delivery Time 2-5 works day
Payment Terms T/T, Western Union,Paypal
Supply Ability 1000 piecs one weeks

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name Custom Machined Metal Parts Packaging Carton Box/Wooden Box/Pallet
Tolerance ±0.005mm Inspection Equipment CMM 100% Check Every Parts
Processing Time 3-7 Working Days Delivery By Air/By Sea/By Express
Surface Hardness HV200 - HV350 Material AZ31B & AZ91D & AZ80A And So On
High Light

ISO9001 CNC Machining Magnesium

,

Precision CNC Machining Magnesium

,

CNC Custom Machined Metal Parts

You can tick the products you need and communicate with us in the message board.
Industries involved: robotics,UAVS(unmanned aerial vehicle),medical equipments,plastic enclosure,eletrical products,phone case,auto parts,household appliances,sporting equipments,military,etc.
Leave a Message
Product Description

Customized Precision Magnesium Machining Product Pass ISO 9001 Quality Certified





When looking for precision machining services, you can’t afford to compromise on the quality if you want to manufacture parts that meet your quality requirements and JYH's Machining Magnesium Alloy service is a good choice for high quality, ISO 9001 certified parts.

We can provide Precise Tolerance with +/- 0.001mm of CNC Machining Magnesium Alloy Services.



►Free & Automatic DFM feedback

►Tolerances down to ±0.0004″ (0.01mm)

►Machined parts as fast as 1 day






Manufacturing Capabilities



Our facility has 60 CNC machining centers, 10 CNC lathes, 5 CNC longitudinal lathes, 2 slow-speed wire cutting machines ,providing much manufacturing flexibility. Our engineers select the ideal equipment for an application based on the geometry, material, and volume of the part being machined to provide customers with premium quality parts at the best possible price.






Application Range





Car engine accessory bracket, clutch housing, gearbox housing, instrument panel frame, steering wheel frame, seat frame, valve body mobile phone,Drone/camera.Magnesium alloy is very suitable for this kind of product because it is very light.






Our certifications





We have a complete set of systems to control production efficiency and quality control processes,also,we have extensive project management capabilities.



ISO9001 Precision CNC Machining Magnesium / Custom Machined Metal Parts 0








Available material



Our materials can be customized for diverse, multi-variety,also,we will provide the EN10204 3.2 Certification/SGS certification/Certificate of RoHS.

At the same time, we also have spectroscopic instruments to ensure the accuracy of the materials.As follows are our normal material for magnesium alloy:





Material Type Tensile Strength Elongation Yield Stress Density Maximum Temperature Tensile Modulus
AZ91D 230MPa 4.0% 150MPa 1.81g/㎤ 596℃ 44.8GPa
AZ80A 290MPa 2.0~5.0% 179MPa 1.81g/㎤ 596℃ 45Gpa
AZ31B 280MPa 7% 160MPa 1.76g/㎤ 596℃ 46GPa
ZK61B 330Mpa 13% 178MPa 1.81g/㎤ 630℃ 47GPa
AZ61B 280Mpa 15% 165Mpa 1.81g/㎤ 653℃ 45GPa
AM60B 221MPa 3.0% 131Mpa 1.81g/㎤ 428℃ 44.8GPa





The Characteristics of Magnesium Parts Can be as follows:



  1. CNC machining magnesium product have high strength, the ratio of strength to quality of magnesium alloy has a capacity.
  2. Magnesium parts have small elastic modulus, good rigidity, strong shock resistance, and are not easily deformed after long-term use.
  3. Magnesium machining product have good resistance to electromagnetic interference and shielding.
  4. Magnesium machining product do not pollute the environment.





Type


Tolerance



Linear dimension




+/- 0.015 mm
+/- 0.002 inch




Hole diameters (not reamed)





+/- 0.015 mm
+/- 0.002 inch




Shaft diameters





+/- 0.015 mm
+/- 0.002 inch




Part size's limit





850 * 650 *550 mm
39.0 * 23.5 * 23.5 inch



Precision Machined Part Size Standards





Classification Minimum Size (mm) Maximum Size (mm) Common Applications
Ultra-Precision Components 0.1 1 Watch components, micro devices
Micro Machined Parts 1.1 10 Medical devices, small electronics
Small Machined Parts 10.1 50 Aerospace, automotive sensors
Medium Machined Parts 50.1 200 Automotive, defense, industrial tools
Large Machined Parts 200.1 1000+ Heavy machinery, construction




Precision CNC Machining Tolerances​



Operation Type Typical Tolerance (mm) Best Possible Tolerance (mm) Notes
EDM (Electrical Discharge Machining) ±0.015 ±0.005 Tolerance can be affected by electrode wear.
Grinding ±0.005 ±0.001 Surface finish is typically smoother with grinding.
CNC Turning ±0.025 ±0.010 Finish can impact tolerance.
CNC Milling ±0.025 ±0.005 Precision can vary based on tool type and material.




Surface Finishes fo Precise CNC Machining





At JYH CNC Precision Machining, we prioritize the aesthetics and functionality of your precision CNC parts.

Our diverse surface finishes ensure custom-tailored precision. Trust in our commitment to enhance your projects with

lasting excellence.



  • ►As-machined finish                                                             ►Polishing
  • Anodizing(PEO coating and Carokate paint)                   ►Electroplating
  • Bead blasting                                                                     Electroplating
  • Powder coating                                                                   ►Brushed finish

  •

  • ISO9001 Precision CNC Machining Magnesium / Custom Machined Metal Parts 1


  •




Our Advantages of Precision Magnesium Machining




There are huge numbers of precision machining providers. Why should you choose us? Here are the top 3 reasons:


1. Experience


Our engineers have built up rich, deep experience from many previous projects, so they can handle complex and precision parts in several industries without a problem.


2. Advanced Equipment


JYH CNC Precision machining has extensive in-house equipment for both manufacturing and testing. Your parts will be manufactured and inspected with our advanced in-house equipment, including Precision CNC milling, CNC turning, EDM, Hexagon CMM, and Olympus XRF analyzer.


3. Fast Turnaround


On average we return quotes within 24 hours, parts ship within 7 days or less, and we have a 99% on-time delivery and quality rate.



4.Less Waste


Precision machining produces minimal waste, allowing to save on materials and maintain environmentally-friendly manufacturing practices.



ISO9001 Precision CNC Machining Magnesium / Custom Machined Metal Parts 2




Quality Inspection



  • In addition to our stringent in-process controls, all components must pass a thorough final inspection.

we have a coordinate measuring machine, salt spray testing machines, profile projectors and other precision

measuring devices, etc.



  • Customers' CAD drawings can be directly imported in the coordinate measuring machines (CMM) for a

direct comparison to the dimensions that are taken from the physical part.



  • All testing is conducted in a 20 degree Celsius climate-controlled inspection room and the CMM is calibrated to

GB/T 16857.2-2006 (ISO10360-2:2001) standards. All components and sub-assemblies are 100% inspected,

identified with a logo if required and a final inspection is generated pertaining to all the critical dimensions.



ISO9001 Precision CNC Machining Magnesium / Custom Machined Metal Parts 3





How to safely machine magnesium?




Although it might sound daunting, it is perfectly safe to CNC machine magnesium if the right precautions are taken.


Avoid tight clearance angles


Although magnesium can be machined at fast speeds without compromising the quality of the part,

it is best to avoid tight clearance angles, because contact between the tool and workpiece increases friction and cutting temperature.


Maintain proper tool condition



Sharp cutting tools can reduce the fire hazard of machining magnesium.
Dull tools can rub and cause friction, which causes sparks and builds up heat where the sensitive magnesium chips

are being created. Needless to say, sharp tools will also produce better parts.
Most machinists use a carbide cutting tool with a large relief angle for machining magnesium.


Avoid water-based coolant


Although coolants reduce machining temperatures, a water-based coolant can actually increase the risk of a magnesium fire

as it will produce hydrogen gas.Avoid coolant altogether, or use a light mineral oil in place of standard coolant. Compressed air

or argon gas can also be used to reduce temperatures without the risk of exacerbating a potential fire.




Make discontinuous chips


When CNC machining magnesium, it is better to make well-broken discontinuous chips, as opposed to more easily ignitable ribbon chips.
Use only explosion-proof chip vacuum
If using a vacuum extraction system for chip removal, this system should be as fireproof as the rest of the machining setup.






Our payment method



ISO9001 Precision CNC Machining Magnesium / Custom Machined Metal Parts 4





Our shipping method



ISO9001 Precision CNC Machining Magnesium / Custom Machined Metal Parts 5



After sales service



ISO9001 Precision CNC Machining Magnesium / Custom Machined Metal Parts 6






FAQ:


1-Is magnesium hard to machine?

  • Drilling, milling, turning, and other processes are smoother when using magnesium, and machining the material requires a significantly lower cutting force and overall production time than other metals.

2-Can you CNC magnesium?

  • Magnesium is a lightweight metal with high level of machining ability that can be CNC machined to create parts with high strength and excellent corrosion resistance. However, magnesium can be difficult to machine due to its tendency to ignite or explode if proper precautions are not taken.

3-How many machines do you have?

  • We currently have more than 60 machines: roughly 40+ CNC mills and 30 Injection mold machine,10+ 3D printers. With our long history of growth, this number is always changing.



4-How do I get a quote?

  • To get a quote for all of our services, simply send us your 3D CAD model to us. You'll get an interactive quote within hours with free design feedback. If there are problem areas in the submitted design,we will provide free design feedback(DFM).

5-What types of files do you accept?

  • We can accept native SolidWorks or ProE files as well as solid 3D CAD models from other CAD systems output in IGES (.igs), STEP (.stp), ACIS (.sat) or Parasolid (.x_t or .x_b) format.

6-Do you provide First Article of Inspection (FAI) Service?

  • We can provide FAI as part of the unlimited offer.





7-What is payment term does your company can be acceptable?

  • We can accept T/T (50 prepayment should be paid before start the production; the 50% remaining payment should be paid after finish the project).









Magnesium​ Sample Pictures for your reference:




ISO9001 Precision CNC Machining Magnesium / Custom Machined Metal Parts 7



ISO9001 Precision CNC Machining Magnesium / Custom Machined Metal Parts 8



JYH technology, Your Professional CNC Machining Magnesium Alloy Services Partner!
