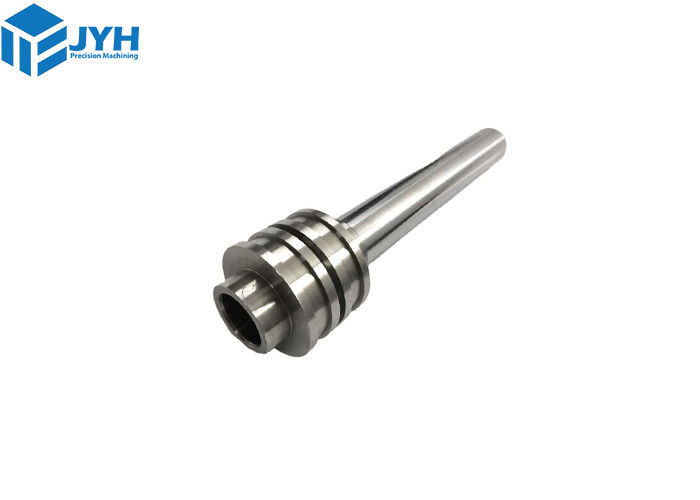

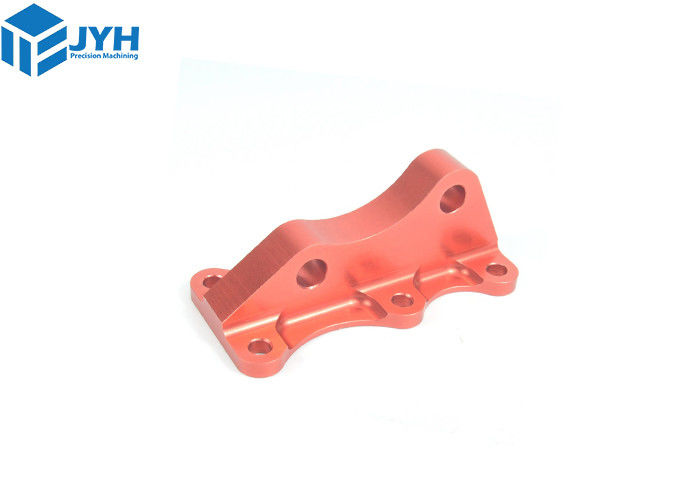

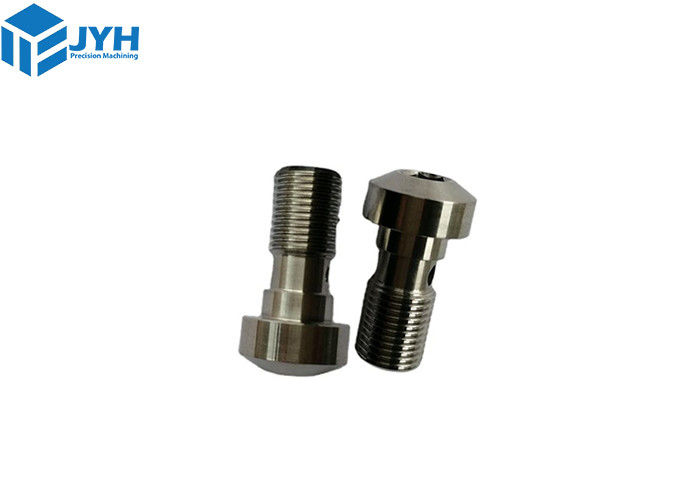

Custom titanium CNC machining precision tool parts

  • Custom titanium CNC machining precision tool parts
  • Custom titanium CNC machining precision tool parts
  • Custom titanium CNC machining precision tool parts
  • Custom titanium CNC machining precision tool parts
Place of Origin China
Brand Name Precision CNC Machining Titanium parts
Certification ISO9001 Certificate of quality system/16949
Model Number Ti-6Al-4V
Minimum Order Quantity 1 piece
Price USD 20-100 pieces,negotiable
Packaging Details Use boxes made of corrugated cardboard,Wrap with bubbles facing inward or Custom wooden cases larger than 25KG.
Delivery Time 2-5 works day
Payment Terms T/T, Western Union,Paypal

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name Titanium CNC Machining Material Capabilities Ti-6Al-4V、Ti-2Al-2.5Zr、SP-700、Ti-6242、Ti-10-5-3、Ti-1023、BT9、BT20、IMI829、IMI834 Or Customizable
Surface Treatment Electroplate , Powder Coating , Black Coating ,Polishing, Sandblasting, Painting Tolerance ±0.01mm , +/-0.005mm And Can Be Customized
Drawing Format IGS , STP , STL And So On Process Way CNC Turning, CNC Milling, Cnc Machining Process
Service ODM Availabe , Custom Your Drawings
Leave a Message
Product Description

Custom titanium CNC machining precision machine tool parts





Titanium CNC workpiece



The best environment for titanium alloy processing is seawater. Because of the metal's corrosion resistance, titanium works best in seawater. When titanium is the material of choice, tank corrosion, pitting, stress corrosion cracking, or microbial corrosion in seawater are not a problem.


Titanium applications in the ocean include ship propellers, shipborne heat transfer, pipeline components, ballast components, waste system components, tidal zone protection, shipborne components.



ADVANTAGES OF MACHINING TITANIUM PARTS



Titanium is a strong, corrosion-resistant, and inert lustrous metal. It’s the ninth most abundant element in Earth’s crust. Instead of occurring in large deposits, small amounts of titanium appear in almost every rock.



  • Tolerances down to ±0.0004″ (0.01mm)
  • ISO 9001:2015 certiified
  • 24/7 engineering support
  • Professional team

Custom titanium CNC machining precision tool parts 0


Characteristics of Titanium Parts



The following are some general properties of titanium alloy in practical application scenarios:



-High strength and light weight

-Corrosion resistance

-Biocompatibility

-Good high temperature stability



Other reasons to choose titanium as a part for CNC machining include:



Durability



Titanium is highly durable and ideal for manufacturing CNC machined parts subjected to harsh or extreme working conditions.


Non-magnetic



This metal has no magnetic characteristics. It also has excellent oxidation resistance, consequently making it resistant to corrosive forces.


Non-toxic



Titanium is corrosion-resistant, has high bio-compatibility and non-toxic properties making it ideal for use in the medical industry.





Titanium Machining Benefits for Precision Parts



Machining titanium provides many benefits in applications despite the challenging nature of working with the material. We offer technical

expertise and industrial experience to create high-quality, precision titanium components for any industry.

Some main advantages of titanium CNC machining to produce parts include:

  • Highest stength-to-density ratio of any element on the periodic table
  • Naturally resistant to rust and corrosion
  • Biocompatibility properties
  • Extremely durable and ductile

Comparison Of Common Titanium Alloys





Hardness Rockwell 30T



Tensile Strength Ultimate

Tensile Strength, Yield

Elongation at Break

Tensile Modulus

Feature

Grade 1 Titanium



70 HR30T

240 MPa

170 MPa

24%

105 GPa

High Corrosion Resistance

Grade 2 Titanium



80 HR30T

345 MPa

275 MPa

20%

105 GPa

Excellent Strength-to-Weight Ratio

Grade 5 Titanium



36-38 HR30T

880 MPa

830 MPa

10%

114 GPa

High Strength

Grade 9 Titanium

80 HR30T

900 MPa

830 MPa

15%

118 GPa

Excellent Balance of Strength, Toughness, and Workability

Grade 23 Titanium



40-45 HR30T

860 MPa

790 MPa

10%

114 GPa

High Biocompatibility



Titanium is a high-quality material that is expensive to manufacture and requires a lot of processing for turning and milling. However, it is characterized by a unique combination of high strength and corrosion resistance with very low density.



JYH is engaged in a full range of titanium numerical control machining services. Our exceptional capabilities allow us to work with special materials such as titanium, a common requirement for many projects. In many applications, our titanium CNC services ensure high-quality results that drive the success of your operations.






Frequently asked questions


How to CNC titanium parts?


A:You can CNC machine your titanium parts by uploading your CAD (.STL) files onto our platform and receiving a quote. You can then submit your parts for production and you will receive them within the quoted lead time.


How strong is CNC milled titanium?

A:Titanium has very high strength and a great strength-to-weight ratio. In fact it is only 4% less strong than steel but is 50% lighter making it great for high tech industries such as aerospace, automotive and energy.


How much does CNC machining titanium cost?

A:The cost of CNC machining titanium depends on the complexity and size of the part and the type of titanium that is used. These variables will affect the type of machine that is required, the time it takes to produce the part, and the cost of the raw material.




Why Choose Us

We are specializes in reliable aerospace part prototyping and production, ranging from simple to complex projects.
We combine manufacturing expertise with advanced technologies and adherence to quality requirements to bring your ideas to life.



Strong Manufacturing Capabilities



Get fast Quotation



Tight Tolerance Aerospace Parts



Fast lead Time


As an ISO 9001 certified manufacturing company, We can provide production line features advanced technologies to ensure manufacturing accuracy and precision. We have a professional engineering team, can serve you 24 hours, as soon as we receive your drawings, we will provide a quote to you within one hour. We can machine aerospace parts with tight tolerances up to +/-0.001 inches. We implement ISO 2768-m standard tolerance for metals and ISO-2768-c for plastics. Parts within days, you can reduce cycle times. A perfect combination of advanced technologies and experience helps us deliver superior-quality aerospace parts with faster lead times.



Quality ensure system

Custom titanium CNC machining precision tool parts 1

Payment method

Custom titanium CNC machining precision tool parts 2

Shipping method

Custom titanium CNC machining precision tool parts 3


After sales service



Custom titanium CNC machining precision tool parts 4




Our workshop

Custom titanium CNC machining precision tool parts 5


JYH is your Titanium CNC Machining best partner!
