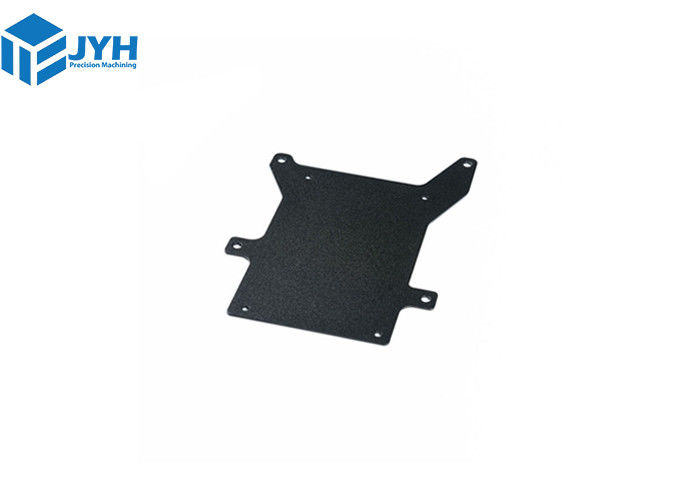

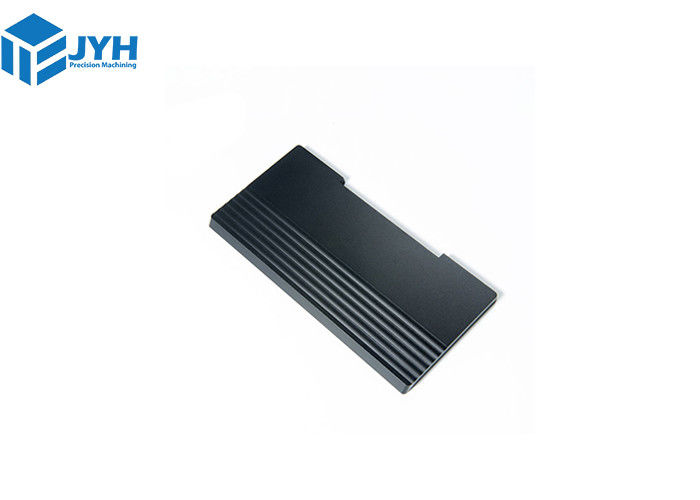

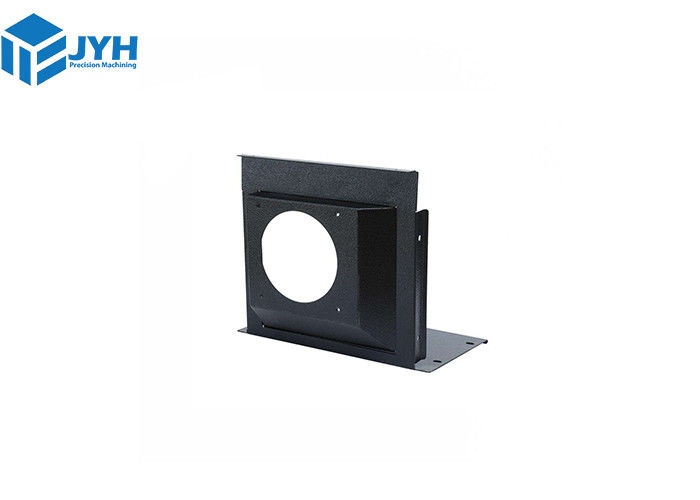

Precision customization Sheet Metal Cutting Fabrication Parts Service
| Place of Origin | China |
|---|---|
| Brand Name | Auto sheet metal fabrication |
| Certification | ISO9001 Certificate of quality system/16949 |
| Model Number | SPCC，SHCC ，SECC ，SGCC |
| Minimum Order Quantity | 1 piece |
| Price | USD 20-100 pieces,negotiable |
| Packaging Details | Use boxes made of corrugated cardboard,Wrap with bubbles facing inward or Custom wooden cases larger than 25KG. |
| Delivery Time | 5-8 works day |
| Payment Terms | T/T, Western Union,Paypal |
| Supply Ability | 1000 piecs one weeks |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | Sheet Metal Shell Processing Services | Material | Sheet Metal, Stainless Steel, Aluminum, Etc |
|---|---|---|---|
| Surface Treatment | Powder Spraying, Electroplating, Oxidation, Etc | Tolerance | ±0.01mm, Based On The Drawings |
| Thickness | 0.5mm~ 16.0mm | Size | According To The Design |
Product Description
Precision customization Sheet Metal Cutting Fabrication Parts Service
What Is Sheet Metal Fabrication?
Sheet metal fabrication is a subtractive manufacturing process that involves cutting, bending, folding, stamping, and assembling thin sheets of metal into parts. Sheet metal can be cut, bent, or stretched into almost any shape, usually by cutting and burning the metal. Sheet metal parts are often highly accurate and durable, so engineers particularly like to use them for end applications such as housings, brackets, and chassis.
The three main sheet metal fabrication techniques include:
-
Cutting: Sheet metal cutting is a precise process that shapes metal sheets into specific designs using techniques like laser cutting, shearing, or waterjet cutting.
-
Forming: Sheet metal forming involves shaping metal sheets through processes like bending, stretching, and pressing, allowing for the creation of complex and customized geometries.
-
Joining: Sheet metal joining refers to techniques like welding, riveting, or using adhesives to securely assemble separate metal pieces into a unified, durable structure.
JYH Precision Quality assurance
Our unwavering commitment to product quality assurance in sheet metal fabrication is evident in every aspect of our process.
Our ISO 9001:2015, ISO 13485, and AS9100D certifications reinforce our commitment to maintaining the highest standards.
Sheet metal cutting services available for your design projects.
|
Flame cutting service
This is a commonly used processing method in sheet metal roughing. It is mainly for processing sheet metal materials with relatively large thickness, and flame will be generated during processing.
|
Wire cutting service
This is an electrical machining cutting technology, so it is also called wire cutting EDM. It can carry out high-precision cutting motion on different sheet metal parts, and the accuracy of sheet metal parts processed by wire cutting will be greatly improved.
|
|
High pressure water cutting service
High-pressure water cutting is mainly the process of mixing water with corundum and using high-speed water flow to process sheet metal parts. It can cut various types of glass, ceramics or metals, but the processing speed of high-pressure water cutting will be longer than other cutting methods.
|
Laser cutting service
This is an effective method of cutting. Laser cutting can complete the precision cutting of sheet metal at one time, which can greatly improve the utilization rate of sheet metal materials. The workpiece can be cut by irradiating the workpiece with a high-power laser beam until it reaches the melting point or the ignition point. The process does not cause any deformation of the sheet material, and is a highly inclusive thermal cutting processing method
|
Advantages of Sheet Metal Fabrication:
Cost-effective choice for manufacturing metal parts and components.
Can be easily formed and shaped into a variety of shapes, sizes, and thicknesses
Customization:Multiple finishing options like anodizing and powder coating
Our Advantages:
- Fast turnaround, high repeatability & low labor cost for custom designs.
- Professional technical personnel & experienced machining personnel.
- Modern sheet metal fabrication facilities & strict quality control.
- 24/7 technical support & fast response to your sheet metal products needs.
Our Sheet Metal Components:
Precision Manufacturing:
Our sheet metal components are crafted with precision using advanced manufacturing techniques and cutting-edge technology. We understand the importance of accuracy in every detail, ensuring that our products meet the highest industry standards.
Versatility:
Whether you need simple brackets or complex assemblies, we have the expertise to deliver versatile sheet metal components. Our comprehensive range covers a wide spectrum of applications, allowing us to cater to the unique requirements of different industries.
Custom Solutions:
We recognize that each project is unique. That's why we offer customized sheet metal solutions to meet your specific needs. Our experienced team collaborates with clients to understand their requirements, providing tailor-made components that ensure optimal performance.
Sheet Metal Fabrication Standards
| Dimension Detail | Metric Units |
Imperial Units
|
|
Edge to edge, single surface |
+/- 0.127 mm |
+/- 0.005 in. |
|
Edge to hole, single surface |
+/- 0.127 mm |
+/- 0.005 in. |
|
Hole to hole, single surface |
+/- 0.127 mm |
+/- 0.005 in.
|
|
Bend to edge / hole, single surface |
+/- 0.254 mm |
+/- 0.010 in. |
|
Edge to feature, multiple surface |
+/- 0.762 mm |
+/- 0.030 in. |
Why use JYH’s for sheet metal fabrication?
|
Fast quoting & Free DFM feedback
|
High Quality & reliability |
|
Build and edit your quote within 20 minutes. Review your parts for manufacturability and assess the cost of different materials, processes and lead times for your project in real time.
|
Dedicated JYH’s team to ensure your parts consistently meet your quality expectations. We also offer phone, email and chat support for any concerns or questions you may have. |
Product quality assurance:
JYH Precision Shipping way
JYH Precision Payment method
After sales service:
JYH Package way
FAQ
1. What are the tolerances for fabricated parts?
Sheet metal fabrication tolerances refer to the acceptable deviations for features of sheet metal parts required for accurate and consistent installation and integration.For sheet metal parts, ISO 2768-mk is usually used to ensure proper control of the elements of geometry and size.
The following will show you 7 tolerance standards range of linear and angular dimensions, flatness & straightness, cylindricity, and circularity.
2. How much does sheet metal fabrication cost?
Every aspect of a sheet metal fabrication project comes with an associated cost — the design, possible prototype, finishing processes, and others. Asides from the process itself, materials also cost money.
3.Whatis the lead time for our project?
It need to based on your product's size and QTY/Structure.
JYH is your best partner of Sheet Metal Enclosure Fabrication And Production Stainless Steel Sheet Parts!
