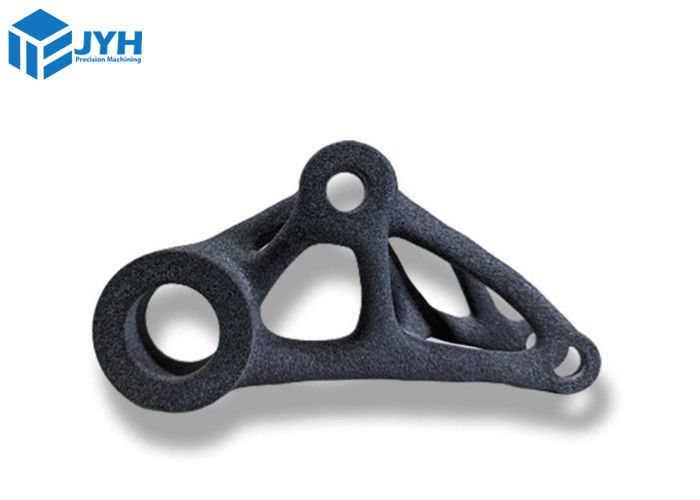

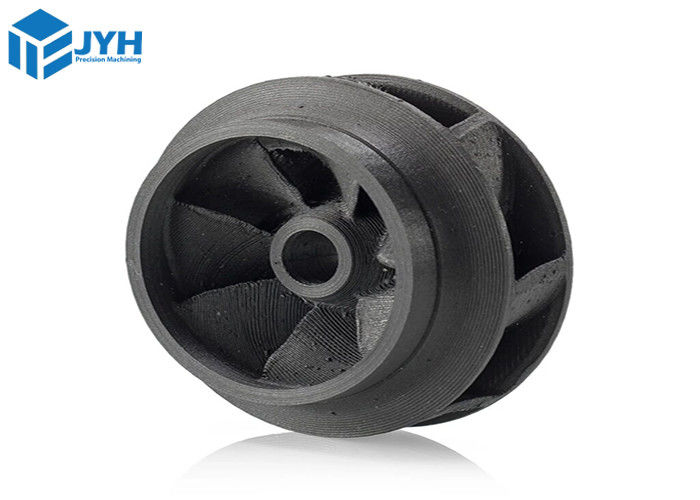

Quick Rapid Prototyping 3d Printing PA12 With Selective Laser Sintering
| Place of Origin | China |
|---|---|
| Brand Name | JYH-Strong 3D Print Services |
| Certification | ISO9001 Certificate of quality system/16949 |
| Model Number | Customized |
| Minimum Order Quantity | 1 piece |
| Price | USD 20-100 , negotiable |
| Packaging Details | Use boxes made of corrugated cardboard,Wrap with bubbles facing inward or Custom wooden cases larger than 25KG. |
| Delivery Time | 2-5 works day |
| Payment Terms | L/C, T/T, Western Union, MoneyGram |
| Supply Ability | 1000 piecs one weeks |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Material Capabilities | ABS,PA12 And Customized | Color | Any Color , Can Be Customized |
|---|---|---|---|
| Keyword | SLS 3D Printing SLS Rapid Prototype | Tolerance | 0.01-0.05mm , 0.001-0.002 , +/-0.005mm |
| Product Type | 3D Printing / SLA /SLS Printing Service | Drawing Format | IGS STP STL An So On. |
| High Light | Rapid Prototyping 3d Printing Sintering,Quick Rapid Prototyping 3d Printing,rapid prototype printing Laser Sintering |
||
Product Description
Quick 3D Printing Service For Custom Parts With Selective Laser Sintering
3D printing service
3D printing for rapid prototyping and production in as fast as 1 day. Get a 3D printing quote with DFM analysis today — no matter what stage your project is at.We offer six 3D printing technologies to transform your 3D files into plastic, metal, and elastomeric parts. With more than 120 3D printers, we have unmatched capacity that reliably delivers parts within days. In addition to a broad material selection, we offer several post-processing options to improve cosmetics or enhance mechanical properties.
- 100% visual inspection for every part
- Parts made in the China
- Parts as fast as 24 hours
Our 3D Printing Processes
- Selective Laser Sintering (SLS)
- Stereolithography (SLA)
1. Selective Laser Sintering (SLS)
| Lifecycle | Lead Time | Resolution | Infill | Materials |
| Functional testing, low to mid volume prototyping (10s - 100s) | 3-5days | 0.05mm | 100% (solid) | Nylon |
3D Printing Materials(Nylon 12)
| Processes | Production Time | Colors | Resolution |
Infill
|
Applications |
|
Selective Laser Sintering (SLS)
|
3 days (rush) 5 days (standard) | White, Black | 0.1 mm | 100% (solid) | Functional prototypes, mechanical applications |
| Multi Jet Fusion (MJF) | 3 days (rush), ≥5 days (standard) | Grey, Black | 0.08mm | Prototyping, Bridge-level Production |
Material Properties(Nylon 12)
| Process | Tensile Strength | Elongation at Break | Modulus of Elasticity | Flexural Strength |
| SLS | 48 MPa (6962 PSI) | 20% | 1500 MPa (217000 PSI) | 58 MPa (8412 PSI) |
| MJF | 48 MPa (6962 PSI) | 20% | 1935 MPa (280648 PSI) | 65 MPa (9428 PSI) |
2-Stereolithography (SLA)
| Lifecycle | Lead Time | Resolution | Materials |
| Short production runs, Prototyping | 3 days | 0.05 mm | Accura 25, Accura ClearVue, Accura 60, Accura Xtreme Grey or White 200 |
Material Properties
| Tensile Strength | Elongation at Break | Modulus of Elasticity | Flexural Strength |
| 38 MPa (5510 psi) | 16% | 1620 MPa (325ksi) | 57 MPa (8267 psi) |
Design Recommendations
| Max Part Size [x, y, z] | Min Clearance + Gaps for Fit | Min Wall Thickness |
|
10 x 10 x 10 inches (635 x 736 x 533 mm) |
0.5 mm between parts that need to be assembled 0.2 mm between shells of an interlocking part |
1 mm |
Cost Saving Tip
To conserve material, consider designing parts with hollow interiors. Include a drainage hole with a minimum diameter of 4mm to enable the removal of trapped resin. To ensure a successful print, maintain surrounding walls at a thickness of at least 2mm.
Shipping way:
Payment method:
Package way:
Quick 3D Printing Service For Custom Parts With Selective Laser Sintering,JYH is your best partner!
