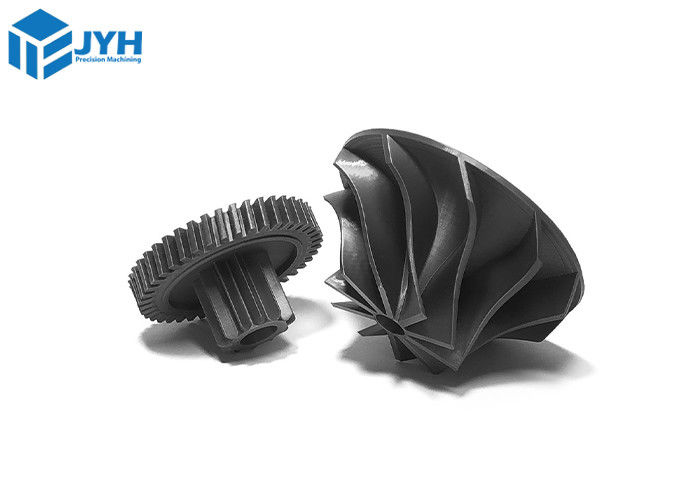

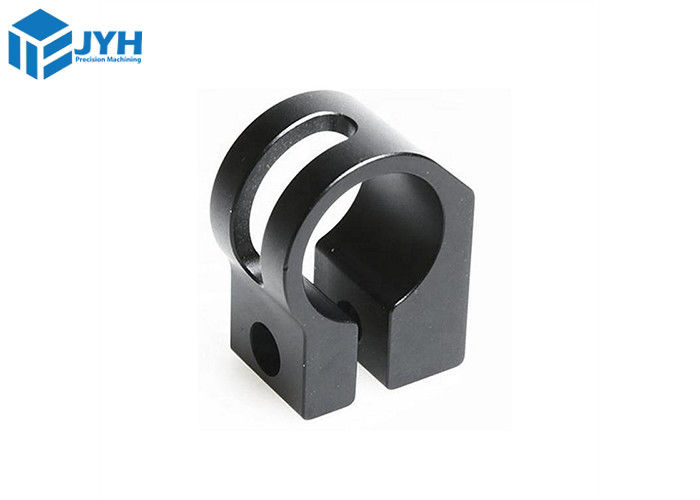

0.001-0.002mm Custom 3D Printing Services SLS Printing Service For 3D Prints Parts

  • 0.001-0.002mm Custom 3D Printing Services SLS Printing Service For 3D Prints Parts
  • 0.001-0.002mm Custom 3D Printing Services SLS Printing Service For 3D Prints Parts
Place of Origin China
Brand Name JYH-Strong 3D Print Services
Certification ISO9001 Certificate of quality system/16949
Model Number Customized
Minimum Order Quantity 1 piece
Price USD 20-100 , negotiable
Packaging Details Use boxes made of corrugated cardboard,Wrap with bubbles facing inward or Custom wooden cases larger than 25KG.
Delivery Time 2-5 works day
Payment Terms L/C, T/T, Western Union, MoneyGram
Supply Ability 1000 piecs one weeks

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Material Capabilities Customized Color Can Be Customized
Drawing Format IGS STP STL And Can Be Customized Product Type 3D Printing / SLA /SLS Printing Service
Keyword SLS / SLS Rapid Prototype Tolerance 0.01-0.05mm , 0.001-0.002mm
High Light

0.002mm Custom 3D Printing Services

,

0.001mm Custom 3D Printing Services

,

SLS Printing Service Prints Parts
Leave a Message
Product Description

Custom Online Strong Print Services To Make A 3D Prints Parts Near Me




3D printing service

3D printing for rapid prototyping and production in as fast as 1 day. Get a 3D printing quote with DFM analysis today — no matter what stage your project is at.Structural integrity in 3D printing is important as 3D prints must not collapse while functioning. 3D printing is a popular manufacturing process with wide acceptance because of the quality it delivers. In terms of improving the strength of 3D printed parts, there are many things that come to play.



  • 100% visual inspection for every part
  • Parts made in the China
  • Parts as fast as 24 hours



Our 3D Printing Processes

  • Selective Laser Sintering (SLS)
  • Stereolithography (SLA)


1. ​Selective Laser Sintering (SLS)



Lifecycle Lead Time Resolution Infill Materials
Functional testing, low to mid volume prototyping (10s - 100s) 3-5days 0.05mm 100% (solid) Nylon



3D Printing Materials(Nylon 12)



Processes Production Time Colors Resolution

Infill



 Applications



Selective Laser Sintering (SLS)











 3 days (rush) 5 days (standard) White, Black 0.1 mm 100% (solid) Functional prototypes, mechanical applications
Multi Jet Fusion (MJF) 3 days (rush), ≥5 days (standard) Grey, Black 0.08mm   Prototyping, Bridge-level Production




Material Properties(Nylon 12)



Process Tensile Strength Elongation at Break Modulus of Elasticity Flexural Strength
SLS 48 MPa (6962 PSI) 20% 1500 MPa (217000 PSI) 58 MPa (8412 PSI)
MJF 48 MPa (6962 PSI) 20% 1935 MPa (280648 PSI) 65 MPa (9428 PSI)




2-Stereolithography (SLA)


Lifecycle Lead Time Resolution Materials
Short production runs, Prototyping 3 days 0.05 mm Accura 25, Accura ClearVue, Accura 60, Accura Xtreme Grey or White 200



Material Properties


Tensile Strength Elongation at Break Modulus of Elasticity Flexural Strength
38 MPa (5510 psi) 16% 1620 MPa (325ksi) 57 MPa (8267 psi)



Design Recommendations


Max Part Size [x, y, z] Min Clearance + Gaps for Fit Min Wall Thickness

10 x 10 x 10 inches

(635 x 736 x 533 mm)

0.5 mm between parts that need to be assembled

0.2 mm between shells of an interlocking part

 1 mm


Increase Infill Density

0.001-0.002mm Custom 3D Printing Services SLS Printing Service For 3D Prints Parts 0

One way of increasing the strength of a 3d print is by increasing the interior density. The interior density ranges from 0% to 100%, with zero means totally hollow while 100 means totally solid.

Theoretically, having a 100 infill density should make your 3D print very strong. However, practically most designers have noticed that anything beyond 70% has a lesser impact on strengthening the 3D print. Instead, there is a tremendous increase in filament use, printing time, cost, and burden on the 3D printer.

Increase Wall Thickness



0.001-0.002mm Custom 3D Printing Services SLS Printing Service For 3D Prints Parts 1



Not only does increasing the wall thickness strengthen the printed material, but it also improves overhangs

(geometry shapes in 3D models that are difficult to print) and water tightness.





Shipping way:



0.001-0.002mm Custom 3D Printing Services SLS Printing Service For 3D Prints Parts 2



Payment method:



0.001-0.002mm Custom 3D Printing Services SLS Printing Service For 3D Prints Parts 3


0.001-0.002mm Custom 3D Printing Services SLS Printing Service For 3D Prints Parts 4

Package way:
0.001-0.002mm Custom 3D Printing Services SLS Printing Service For 3D Prints Parts 5

Quick 3D Printing Service For Custom Parts With Selective Laser Sintering​,JYH is your best partner!
