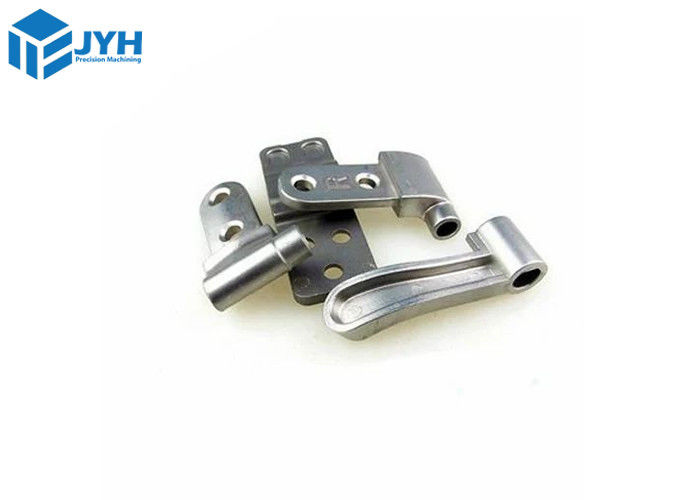

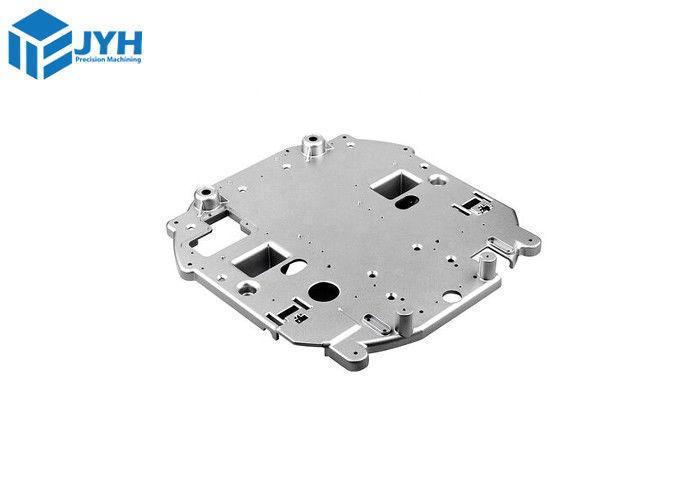

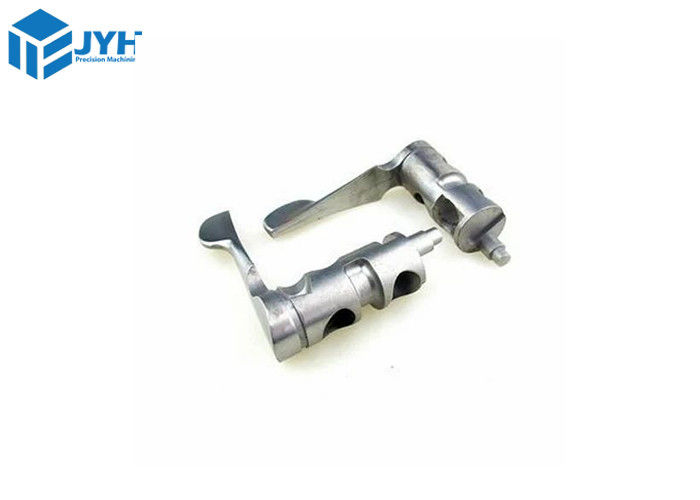

Custom Die Cast Aluminum Mold 0.02mm Tolerance Power coating

Place of Origin China
Brand Name Precision Machining Castings
Certification ISO9001 Certificate of quality system/16949
Model Number Customized
Minimum Order Quantity 1 piece
Price USD 20-100 pieces,negotiable
Packaging Details Use boxes made of corrugated cardboard,Wrap with bubbles facing inward or Custom wooden cases larger than 25KG.
Delivery Time 2-5 works day
Payment Terms T/T, Western Union,Paypal
Supply Ability 1000 piecs one weeks

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Material Aluminum6061/5052, Zinc, A36,Magnesium, Copper And So On. Surface Treatment Polishing, Nitride,Power Coating
Tolerance ± 0.02mm, ±0.05 Process Low Pressure Casting, High Pressure Casting.
Mould Material S136, Aluminum, DAC And Can Be Customized. Lead Time 10-35 Days
High Light

Custom Die Cast Aluminum Mold


Die Cast Aluminum Mold 0.02mm


pressure die casting mould Power Coating

Leave a Message
Product Description

Custom Die Casting Mould Service For Aluminum Alloys Of Shape Conponents




JYH Precision: Experts in Die Casting Services


Die casting stands out as a valuable sheet metal fabrication method recognized for its cost-effectiveness and streamlined production. While the process itself is straightforward, it can benefit from a degree of expertise, making it a smart choice to entrust this task to a specialized service like ours.


At JYH Precision, we provide access to a team of skilled engineers well-versed in die casting services. Their wealth of experience enables us to guide you effectively in selecting the optimal die casting approach for your project.


As an ISO 9001:2015 certified company, we operate multiple manufacturing facilities equipped with advanced technology to craft top-notch components. With swift turnaround times, upon uploading a design file, you can anticipate receiving a quote and DFM analysis within just 12 hours.


Advantages of Die Casting Process


Die casting stands as a significant technique in metal fabrication, esteemed for its cost-effectiveness and user-friendly nature.

The advantages it brings:


  • Accomplish intricate part designs
  • Reduce labor expenditures
  • Attain varying wall thicknesses
  • Achieve stricter tolerances


Disadvantages of Die Casting Process


  • Incompatible with metals boasting elevated melting points
  • Incompatible with extensive sheet metal components
  • Substantial die expenses
  • Extended lead times


Die Casting Alloys


Die casting commonly employs non-ferrous alloys prized for their robust mechanical attributes. These non-ferrous components contribute to the alloys' low melting points, which align with their strong mechanical performance.Below, we list a few popular alloy options:


Aluminum Alloys


Custom Die Cast Aluminum Mold 0.02mm Tolerance Power coating 0

Aluminum alloys possess versatile qualities for various product uses, with 380.0 being a popular die casting preference. Other options like Alloys 360, 390, and 413 also exist, chosen based on factors such as specific application requirements.


  • Elevated operational temperatures
  • Remarkable resistance to corrosion
  • Lightweight nature
  • Notable strength and hardness
  • Favorable combination of stiffness and strength-to-weight ratio


Zinc Alloys


Custom Die Cast Aluminum Mold 0.02mm Tolerance Power coating 1


Zinc alloys offer remarkable strength, resilience, stability, efficiency, and cost-effectiveness.


A variety of zinc alloys are available for utilization. Nevertheless, the prevalent zinc materials for die casting include Zamak #2, #3, #5, #7, ZA8, and ZA27, celebrated for the ensuing qualities:


  • Enhanced Castability
  • Reduced Cycle Duration
  • Prolonged Die Lifespan


Other Alloys


Die casting parts can also be crafted from alternative alloys such as Bronze, Brass, lead, and tin.


Bronze, specifically white bronze, finds favor in the jewelry sector for die casting. It boasts a color akin to white gold and stainless steel alloys while remaining an ideal choice due to its lower melting point.





Types Of Die Casting Processes


In the industrial realm, two main methods for die casting are the hot chamber and cold chamber processes.

Below, we outline the details of these two processes.




Hot-chamber die casting


Custom Die Cast Aluminum Mold 0.02mm Tolerance Power coating 2




Hot-chamber die casting utilizes a molten metal reservoir to fill intricate molds quickly, making it ideal for low-melting point alloys like zinc and tin.



Cold Chamber Die Casting


Custom Die Cast Aluminum Mold 0.02mm Tolerance Power coating 3


Cold chamber die casting is excellent for handling high melting point materials like aluminum, preventing damage to the pumping system caused by extreme temperatures. In this method, molten material is poured into a cold chamber before being injected into the die, utilizing a hydraulic system similar to hot chamber casting.



Surface Finish


Surface finishing is crucial in die casting to enhance product aesthetics and functionality, ensuring parts meet precise specifications and provide optimal performance.


Custom Die Cast Aluminum Mold 0.02mm Tolerance Power coating 4 Custom Die Cast Aluminum Mold 0.02mm Tolerance Power coating 5

Powder Coating


Ceramic Coating


Custom Die Cast Aluminum Mold 0.02mm Tolerance Power coating 6 Custom Die Cast Aluminum Mold 0.02mm Tolerance Power coating 7







Die Casting Process



Whether it's hot or cold chamber die casting, the standard procedure involves injecting molten metal into a die mold using high pressure.

Here are the detailed steps in the die casting process:



Custom Die Cast Aluminum Mold 0.02mm Tolerance Power coating 8


At the outset, clean the die to eliminate impurities and apply lubrication for smoother injection and product removal. Once cleaned and lubricated, firmly close the die with high pressure.



Melt the chosen metal and pour it into the shot chamber. The method differs based on the process being used.


While the die is closed, allow the metal to cool and solidify. The resulting solid material will take on the shape of the mold design.



After unclamping the die mold, an ejection mechanism will push the solid casting out of the mold. Make sure the product has fully solidified before ejecting.



This marks the final step, involving the removal of excess metal from the sprue and runner on the finished product. Trimming can be done using a trim die, saw


Factors Influencing Die Casting Costs


Die casting is typically an economical manufacturing method, yet costs can vary due to multiple considerations. Here are key aspects to contemplate for optimal cost-effectiveness in your die casting project:


  • Material Cost

The selection of materials significantly impacts die casting expenses. Certain materials hold higher price tags, and the overall cost of die casting materials tends to exhibit a general upward trend, albeit with fluctuations.


  • Production Cost

Production costs hinge on three pivotal elements: tooling costs and die casting expenses. Your chosen production processes, technological strategies, mold fabrication procedures, and upkeep efforts all interplay to influence tooling expenses, which can potentially be substantial.



  • Mold Cost

Mold costs are contingent upon the manufacturing approach employed. For instance, employing CNC machining amplifies mold costs due to the capabilities and benefits inherent to the method."


  • Impact on Costs of Secondary Operations

Consider the expenses related to secondary operations, including tasks like trimming, as they factor into the overall die casting expenses. Thus, the scope, efficiency, and success of secondary operation costs become significant considerations.

  • Finishing Cost

The cost of finishing is influenced by the chosen finishing technique. For instance, processes like electroplating will incur greater finishing expenses compared to painting.





Die Casting:


The term "die casting" aptly describes the process, as it centers around the use of specialized molds known as "dies." These dies are meticulously crafted from durable steel through advanced techniques like CNC machining. During the process, liquid metal is injected into the die, taking its desired shape as it cools. The die is composed of two halves: the fixed half, which remains stationary and connected to the casting apparatus, and the ejector half, which can move.


Sand Casting vs. Die Casting:


In the realm of metal fabrication, two prominent techniques stand out: sand casting and die casting. The key distinction lies in the composition of the molds employed. While die casting relies on precisely crafted metal molds (dies), sand casting employs molds made from sand. Additionally, die casting is most suitable for non-ferrous metals with lower melting points, whereas sand casting offers a broader spectrum of compatibility.



Shipping way:



Custom Die Cast Aluminum Mold 0.02mm Tolerance Power coating 9




Payment method:


Custom Die Cast Aluminum Mold 0.02mm Tolerance Power coating 10



After service:



Custom Die Cast Aluminum Mold 0.02mm Tolerance Power coating 11




Custom Die Casting Mould Service For Aluminum Alloys Of Shape Conponents. We are your best partner!
