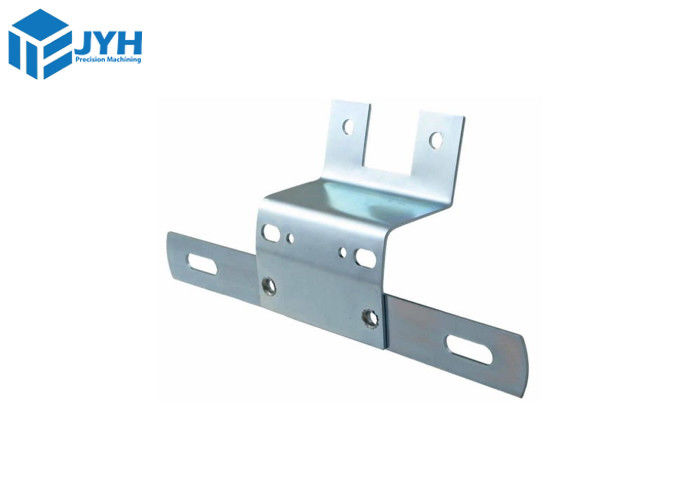

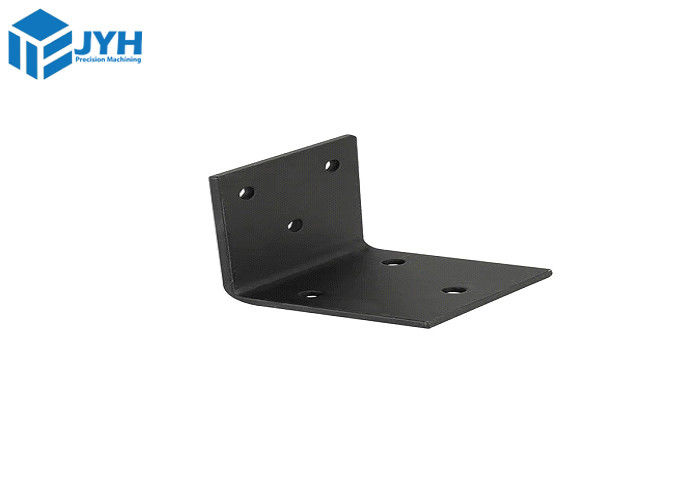

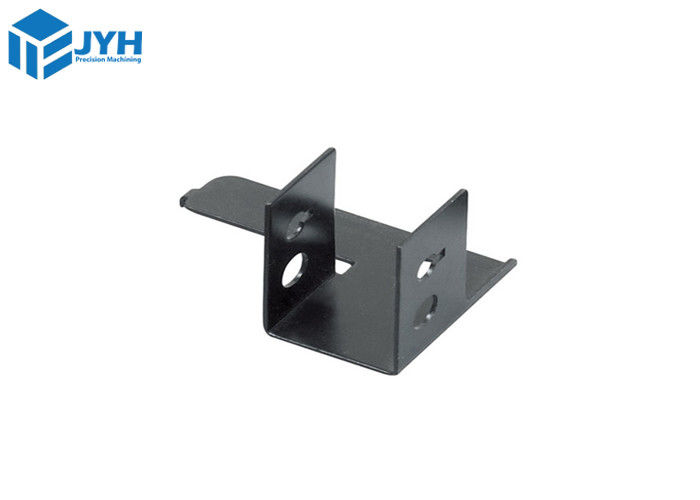

0.5mm Thick Sheet Metal Fabrication Service Custom Metal Fabrication Prototype

Place of Origin China
Brand Name Sheet Metal Fabrication Service
Certification ISO9001 Certificate of quality system/16949
Model Number SPCC,SHCC ,SECC ,SGCC
Minimum Order Quantity 1 piece
Price USD 20-100 pieces,negotiable
Packaging Details Use boxes made of corrugated cardboard,Wrap with bubbles facing inward or Custom wooden cases larger than 25KG.
Delivery Time 5-8 works day
Payment Terms T/T, Western Union,Paypal
Supply Ability 1000 piecs one weeks

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name 0.5mm Thick Sheet Metal Fabrication Service Custom Metal Fabrication Prototype Tolerance ±0.02mm, Based On Clients' Drawings
Structure And Size It Can Be Customized. Sheet Thick 0.5-6mm,Can Be Customized
Sheet Material SPCC,SECC,SGCC , Aluminum 5052 Process Way Sheet Metal Fabrication Service
Surface Treatment Powder Coating , Zinc Plating , Zinc Plating/Nickel Plating , Customer's Requst, Lead Time 5-10 Days
Highlight

0.5mm Thick Sheet Metal Fabrication Service

,

Sheet Metal Fabrication Service Custom

,

0.5mm Custom Metal Fabrication Prototype

Leave a Message
Product Description

0.5mm Thick Sheet Metal Fabrication Service Custom Metal Fabrication Prototype








JYH Precision Sheet Metal Fabrication process Service





Sheet metal fabrication is the most cost-effective choice for custom sheet metal parts and prototypes with uniform wall thickness.

JYH produces precision sheet metal parts to meet the strictest customer specifications. Each step in our production process utilizes precise, state-of-the-art computer assisted equipment and software to fulfill customer requirements. Our fully equipped, calibrated inspection department insures top quality. We specialize in prototypes and in production work – from one piece to thousands of pieces. Whether your project requires aluminum, steel, copper or brass, we are ready to serve you.



  • ISO 9001: 2015
  • Fast delivary service with DHL/FEDEX/UPS
  • Free quotation with DFM review in 1 hours
  • Deburr all sharp edges: 0.2 - 0.3 mm
  • Surface roughness: Ra 1.6
  • Sandblast 120# before anodize
  • Standard-DIN-2768-1-fine



JYH Precision Quality assurance



Our unwavering commitment to product quality assurance in sheet metal fabrication is evident in every aspect of our process.

Our ISO 9001:2015, ISO 13485, and AS9100D certifications reinforce our commitment to maintaining the highest standards.



0.5mm Thick Sheet Metal Fabrication Service Custom Metal Fabrication Prototype 0

0.5mm Thick Sheet Metal Fabrication Service Custom Metal Fabrication Prototype 1



Design and Fabrication Expertise




We have 30 years of experience in designing and fabricating precision sheet metal parts and assemblies for all types of industries. Our programming staff works closely with our CNC department to insure absolute repeatability, tolerance control, and precision – part after part.
The fabrication of sheet metal into complex components and multi-piece assemblies is an everyday occurrence at JYH precision Sheet Metal service. We are well equipped to handle virtually every requirement you might have.







JYH Precision Available materials for sheet metal:





Below is a list of our standard available metals for sheet metal fabrication





Aluminum





Stainless steel





Mild steel





Copper



5052 304 1018 C110






JYH PrecisionSheet Metal Fabrication Standards



Dimension Detail Metric Units

Imperial Units





Edge to edge, single surface



+/- 0.127 mm



+/- 0.005 in.



Edge to hole, single surface



+/- 0.127 mm



+/- 0.005 in.



Hole to hole, single surface



+/- 0.127 mm



+/- 0.005 in.





Bend to edge / hole, single surface



+/- 0.254 mm



+/- 0.010 in.



Edge to feature, multiple surface



+/- 0.762 mm



+/- 0.030 in.



Over formed part, multiple surface



+/- 0.762 mm



+/- 0.030 in.







JYH Precision Available Sheet Metal Fabrication Processes



Processes Description Thickness Area



Laser Cutting

Laser cutting is a thermal cutting process that uses high-power laser to cut metals.



Up to 50 mm







Up to 4000 x 6000 mm



Water jet Cutting

It finds particular utility in the cutting of highly thick metals, notably steel.



Up to 300 mm



Up to 3000 x 6000 mm



Plasma Cutting

CNC plasma cutting proves effective for slicing through thicker sheet metals.



Up to 50 mm





Up to 4000 x 6000 mm



Bending

It is utilized to sculpt customized prototypes of sheet metal subsequent to the cutting procedure.



Up to 20 mm



Up to 4000 mm






Why use JYHs for sheet metal fabrication?







Fast quoting & Free DFM feedback



High Quality & reliability



  Build and edit your quote within 20 minutes. Review your parts for manufacturability and assess the cost of different materials, processes and lead times for your project in real time.



  Dedicated JYH’s team to ensure your parts consistently meet your quality expectations. We also offer phone, email and chat support for any concerns or questions you may have.







JYH Precision Available surface finishes for sheet metal



Surface finishes are applied after machining and can change the appearance, surface roughness, hardness and chemical resistance of the produced parts.





Picture of surface finish





Name





Description



0.5mm Thick Sheet Metal Fabrication Service Custom Metal Fabrication Prototype 2



Standard

This is our standard finish. Parts as delivered as cut and bent, no additional treatment applied. Sharp edges are broken and deburred for safe handling.
0.5mm Thick Sheet Metal Fabrication Service Custom Metal Fabrication Prototype 3 Bead Blasted Parts are bead blasted with glass beads which results in a grainy texture. Sharp edges are broken and deburred for safe handling.
0.5mm Thick Sheet Metal Fabrication Service Custom Metal Fabrication Prototype 4 Brushed Parts are manually brushed with grit #180 after cutting and bending. Sharp edges are broken and deburred for safe handling. Ideal to reduce the surface roughness of a part.
0.5mm Thick Sheet Metal Fabrication Service Custom Metal Fabrication Prototype 5 Brused + Anodized type II Parts are dipped in an anodizing bath (type II) after manual brushing. Ideal for increasing the corrosion resistance of the part. Ideal for increasing the corrosion resistance of the part.
0.5mm Thick Sheet Metal Fabrication Service Custom Metal Fabrication Prototype 6 Powder coated Powder coating layer is applied directly after fabrication. Sharp edges are broken and deburred for safe handling.
0.5mm Thick Sheet Metal Fabrication Service Custom Metal Fabrication Prototype 7 Black oxide Parts are dipped in a black oxide bath after fabrication. Ideal to improve improve corrosion resistance and minimize light reflection in steel components.





JYH Precision Shipping way



0.5mm Thick Sheet Metal Fabrication Service Custom Metal Fabrication Prototype 8




JYH Precision Payment method



0.5mm Thick Sheet Metal Fabrication Service Custom Metal Fabrication Prototype 9






Frequently Asked Questions





1. What’s K factor in sheet metal?



K factor is the sheet metal process is the ratio of neutral axis to material thickness. This value changes with respect to the various physical properties and thickness of materials used.



2. What are the tolerances for fabricated parts?



Sheet metal fabrication tolerances refer to the acceptable deviations for features of sheet metal parts required for accurate and consistent installation and integration.For sheet metal parts, ISO 2768-mk is usually used to ensure proper control of the elements of geometry and size.

The following will show you 7 tolerance standards range of linear and angular dimensions, flatness & straightness, cylindricity, and circularity.



3. How much does sheet metal fabrication cost?



Every aspect of a sheet metal fabrication project comes with an associated cost — the design, possible prototype, finishing processes, and others. Asides from the process itself, materials also cost money.





JYH is your best partner of Sheet Metal Fabrication SPCC Steel 7075 Parts Service For Medical Equipment!
