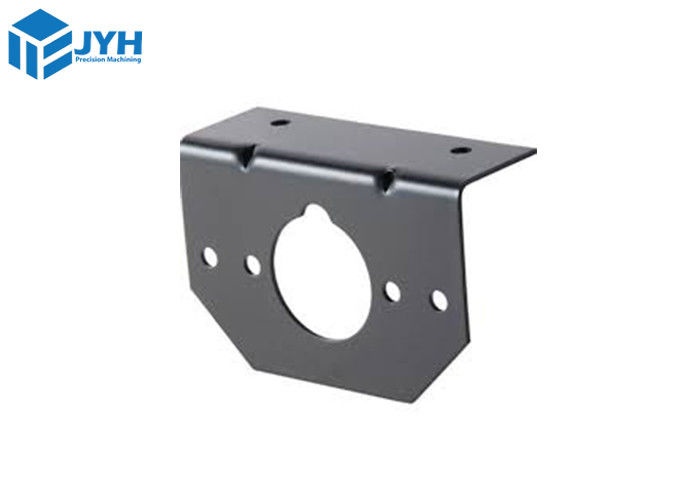

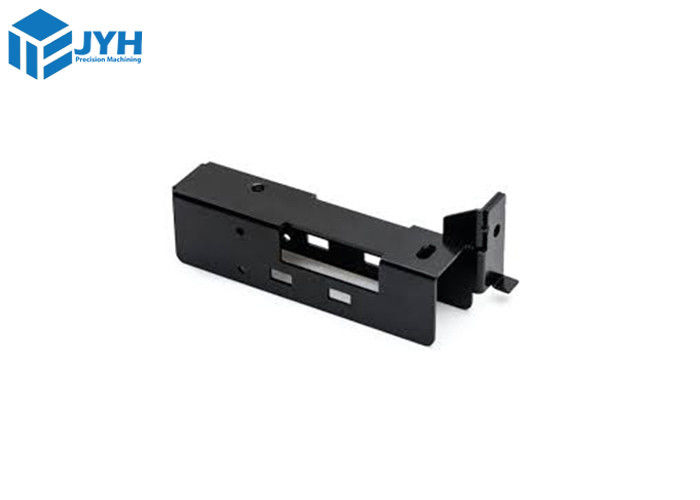

Sheet Metal Enclosure Fabrication , Precision SS Sheet Metal Fabrication Parts
| Place of Origin | China |
|---|---|
| Brand Name | Auto sheet metal fabrication |
| Certification | ISO9001 Certificate of quality system/16949 |
| Model Number | SPCC，SHCC ，SECC ，SGCC |
| Minimum Order Quantity | 1 piece |
| Price | USD 20-100 pieces,negotiable |
| Packaging Details | Use boxes made of corrugated cardboard,Wrap with bubbles facing inward or Custom wooden cases larger than 25KG. |
| Delivery Time | 5-8 works day |
| Payment Terms | T/T, Western Union,Paypal |
| Supply Ability | 1000 piecs one weeks |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | Sheet Metal Enclosure Fabrication | Structure And Size | It Can Be Customized |
|---|---|---|---|
| Process Way | Laser Cutting Service | Sheet Thickness | 0.5-8mm,Can Be Customized |
| Tolerance | ±0.05mm, Based On Clients' Drawings | Sheet Material | SPCC，SECC , Al 5052 , SS316 / SS304 |
| Surface Treatment | Powder Coating , Zinc Plating , Nickel Plating , Painting | Process | Bending, Laser Cutting, Stamping, Cnc Milling Stamping |
| High Light | Sheet Metal Enclosure Fabrication,Precision SS Sheet Metal Fabrication,SS Sheet Metal Fabrication Parts |
||
Product Description
Sheet Metal Enclosure Fabrication , Precision SS Sheet Metal Fabrication Parts
JYH Precision Sheet Metal Fabrication Service
Custom engineering and manufacturing services from prototypes to on demand production of sheet metal parts. Low-cost sheet metal fabrication solution for you.
- ISO 9001: 2015
- Fast delivery service with DHL/FEDEX/UPS
- Standard-DIN-2768-1-fine
- Free quotation with DFM review in 1 hours
- Deburr all sharp edges: 0.1 - 0.2 mm
- Surface roughness: Ra 1.6
JYH Precision Quality assurance
Our unwavering commitment to product quality assurance in sheet metal fabrication is evident in every aspect of our process.
Our ISO 9001:2015, ISO 13485, and AS9100D certifications reinforce our commitment to maintaining the highest standards.
Precision and Quality Control in Every Step
All of our quality control tools, such as calipers, height gauges, pins and granite blocks are kept up to date and precise with an outside supplier who certifies all tools at regular intervals. That includes company tools and employee tools.
JYH Precision Available materials for sheet metal:
Below is a list of our standard available metals for sheet metal fabrication
|
Aluminum
|
Stainless steel
|
Mild steel
|
Copper
|
| 5052/6061 | 304/316 | 1018/A36 | C110 |
Why use JYH’s for sheet metal fabrication?
|
Fast quoting & Free DFM feedback
|
High Quality & reliability |
|
Build and edit your quote within 30 minutes. Review your parts for manufacturability and assess the cost of different materials, processes and lead times for your project in real time.
|
Dedicated JYH’s team to ensure your parts consistently meet your quality expectations. We also offer phone, email and chat support for any concerns or questions you may have. |
JYH Precision Sheet Metal Fabrication Standards
| Dimension Detail | Metric Units |
Imperial Units
|
|
Edge to edge, single surface |
+/- 0.127 mm |
+/- 0.005 in. |
|
Edge to hole, single surface |
+/- 0.127 mm |
+/- 0.005 in. |
|
Hole to hole, single surface |
+/- 0.127 mm |
+/- 0.005 in.
|
|
Bend to edge / hole, single surface |
+/- 0.254 mm |
+/- 0.010 in. |
|
Edge to feature, multiple surface |
+/- 0.762 mm |
+/- 0.030 in. |
|
Over formed part, multiple surface |
+/- 0.762 mm |
+/- 0.030 in. |
JYH Precision surface finishes for sheet metal
Surface finishes are applied after machining and can change the appearance, surface roughness, hardness and chemical resistance of the produced parts.
|
Picture of surface finish
|
Name
|
Description
|
|
|
Standard surface finish |
This is our standard finish. Parts as delivered as cut and bent, no additional treatment applied. Sharp edges are broken and deburred for safe handling. |
|
Brushed | Parts are manually brushed with grit #180 after cutting and bending. Sharp edges are broken and deburred for safe handling. Ideal to reduce the surface roughness of a part. |
|
Brused + Anodized type II | Parts are dipped in an anodizing bath (type II) after manual brushing. Ideal for increasing the corrosion resistance of the part. Ideal for increasing the corrosion resistance of the part. |
|
Powder coating | Powder coating layer is applied directly after fabrication. Sharp edges are broken and deburred for safe handling. |
|
Black oxidization | Parts are dipped in a black oxide bath after fabrication. Ideal to improve improve corrosion resistance and minimize light reflection in steel components. |
YH Precision Available Sheet Metal Fabrication Processes
| Processes | Description | Thickness | Area |
|
Laser Cutting |
Laser cutting is a thermal cutting process that uses high-power laser to cut metals. |
Up to 50 mm
|
Up to 5000 x 6000 mm |
|
Water jet Cutting |
It finds particular utility in the cutting of highly thick metals, notably steel. |
Up to 300 mm |
Up to 4000 x 6000 mm |
|
Plasma Cutting |
CNC plasma cutting proves effective for slicing through thicker sheet metals. |
Up to 50 mm
|
Up to 5000 x 6000 mm |
|
Bending |
It is utilized to sculpt customized prototypes of sheet metal subsequent to the cutting procedure. |
Up to 20 mm |
Up to 5000 mm |
JYH Precision Shipping way
JYH Precision Payment method
JYH Precision workshop
Frequently Asked Questions
1. What are the tolerances for fabricated parts?
Sheet metal fabrication tolerances refer to the acceptable deviations for features of sheet metal parts required for accurate and consistent installation and integration.For sheet metal parts, ISO 2768-mk is usually used to ensure proper control of the elements of geometry and size.
The following will show you 7 tolerance standards range of linear and angular dimensions, flatness & straightness, cylindricity, and circularity.
2. How much does sheet metal fabrication cost?
Every aspect of a sheet metal fabrication project comes with an associated cost — the design, possible prototype, finishing processes, and others. Asides from the process itself, materials also cost money.
3.Whatis the lead time for our project?
It need to based on your product size and QTY/Structure.
JYH is your best partner of Sheet Metal Enclosure Fabrication And Production Stainless Steel Sheet Parts!
