5 Axis Stainless Steel CNC Machining Services For Metal Enclosure Parts

  • 5 Axis Stainless Steel CNC Machining Services For Metal Enclosure Parts
  • 5 Axis Stainless Steel CNC Machining Services For Metal Enclosure Parts
  • 5 Axis Stainless Steel CNC Machining Services For Metal Enclosure Parts
Place of Origin China
Brand Name JYH Precision Machining
Certification ISO9001 Certificate of quality system/16949
Model Number Stainless Steel 304
Minimum Order Quantity 1 piece
Price USD 20-100 pieces,negotiable
Packaging Details Use boxes made of corrugated cardboard,Wrap with bubbles facing inward or Custom wooden cases larger than 25KG.
Delivery Time 2-5 works day
Payment Terms T/T, Western Union,Paypal
Supply Ability 1000 piecs one weeks

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name CNC Machined Stainless Steel Parts Surface Finish ElectroPlating , Passivating , Black Coated , Anodized , Sandblasted , Polished And So On
Material Capabilities 17-4 /Stainless Steel 304 / 316/ P20 Carbon Steel / Carbon Steel / And So On Types Of Files STP / IGS / X-T And CAD
MOQ 1 Pieces Tolerance +/- 0.001mm And Based On Request
Color As Your Color Sample Or Panton Number , Can Be Customized Lead Time 5-8 Working Days,depending On The Product's Structure
High Light

5 Axis Stainless Steel CNC Machining Services

,

JYH Stainless Steel CNC Machining Services

,

OEM Stainless Steel CNC Service
Leave a Message
Product Description

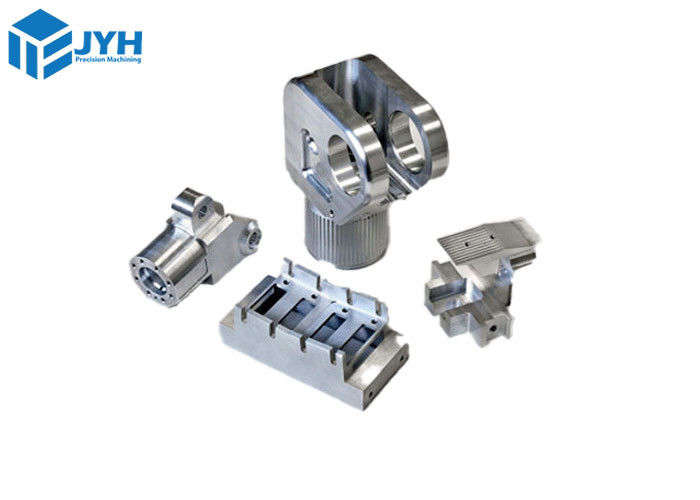

5 Axis CNC Machining Stainless Steel Service For Precise Metal Enclosure Parts







Stainless steel is well-suited for a wide array of CNC machining projects, due to its excellent machinability and outstanding uniformity. From prototyping to mass production, we help manufacture products with complex geometries and high aesthetic demands.



Get superior-quality precision CNC machining services for prototypes and production parts.

Take advantage of advanced manufacturing solutions with competitive rates and short lead times.





  • Fast quotes within 1 hours
  • Free & Automatic DFM feedback
  • Tolerances down to ±0.0004″ (0.01mm)
  • Machined parts as fast as 1 day





​Compare Stainless Steel Alloys



We offer a variety of stainless steel options to suit any specifications or requirements. Stainless Steel 304/304L and

316/316L as well as Stainless Steel 303 and Type 360 (17-4) have all proven to be high-quality options for CNC machining projects that require either milling or turning.



Groupe AISI EN Symbolic EN Numerical corrosion resistance field of use breaking strength (Rm) in MPA
A1 303 X8CrNiS18-9 1.4305 Weak in acid and chloride media, good in nitric acid (up to 52% at all temperatures, 98% when cold), cold diluted organic acids, alkaline solutions (except chlorides, sulphites and sulphates), fresh water and natural atmospheres, foodstuffs (except mustard and white wine), lubricants, oils and greases Transport, mechanical industry, machining 500-750
A1 304 X5CrNi18-10 1.4301 Good in Nitric acid (up to 52% at all temperatures, 98% when cold), cold diluted organic acids, alkaline solutions (except chlorides, sulphites and sulphates), fresh water and natural atmospheres, food products (except mustard and white wine)) Transport, mechanical industry, machining 500-700
A2 304L X2CrNi18-9 1.4307
1.4306		 Acide nitrique (jusqu’à 52% à toutes températures, 98% à froid), acides organiques dilués à froid, solutions alcalines (sauf chlorures, sulfites et sulfates), eaux douces et atmosphères naturelles, produits alimentaires (sauf moutarde et vin blanc) Forgeage, usinage de pièces mécaniques pour industrie chimique et alimentaire 450-680
A4 316 X5CrNiMo17-12-2 1.4401
1.4436
1.4408		 Nitric acid (up to 52% at all temperatures, 98% when cold), cold diluted organic acids, alkaline solutions (except chlorides, sulphites and sulphates), fresh water and natural atmospheres, food products (except mustard and white wine) Nitrogen explosives industry, chemical industry, food industry 500-700
A4 316L X2CrNiMo17-12-2
GX2CrNiMo19.11.2		 1.4404
1.4409		 Phosphoric acid (all concentrations up to 40°C), sulphuric acid (less than 10% and more than 80% at 20°C), sulphonitric mixtures (up to 70°C), sulphurous solutions and vapours, even if hot (except if sulphuric acid is formed), organic acids, even if they are boiling, saline solutions (except for chlorides), alkaline solutions (all concentrations below 100°C), fresh water and natural atmospheres (especially marine), organic products, foodstuffs Nitrogen explosives industry, chemical industry, food industry, mechanical industry 500-700
A4 316L X2CrNiMo18-14-3 1.4435 Excellent resistance in natural environments (even in the presence of moderate concentrations of chlorides and acids), in food and food processing environments, and in many acidic and chloride environments. Resistance to intergranular corrosion even after welding. Jewelry, chemical industry, petrochemical industry 500-700
A4 316Ti X6CrNiMo17-12-2 1.4571 Phosphoric acid (all concentrations up to 40°C), sulphuric acid (less than 10% and more than 80% at 20°C), sulphonitric mixtures (up to 70°C), sulphurous solutions and vapours, even if hot (except if sulphuric acid is formed), organic acids, even if they are boiling, saline solutions (except for chlorides), alkaline solutions (all concentrations below 100°C), fresh water and natural atmospheres (especially marine), organic products, foodstuffs Chemical industry, food industry, mechanical industry 500-700
A4 321 X6CrNiTi18-10 1.4541 Excellent resistance in natural environments (in the absence of significant concentrations of chlorides or acids), in food and agri-food environments (except mustard, white wine), and in certain chemical environments (nitric acid, cold diluted organic acids)
Resistance to intergranular corrosion, even after welding		 Chemical, food and agri-food industry 530-690



Stainless Steel Alloy

Ultimate Tensile Strength

Elongation

Hardness

Stainless Steel 303

100 kpsi

40%

96 HRB

Stainless Steel 304

73 kpsi

70%

70 HRB

Stainless Steel 316

84 kpsi

50%

79 HRB

Stainless Steel 17-4PH

150 kpsi

8%

33 HRC



Stainless Steel Machining Applications

CNC machining of stainless steel is used to produce a variety of parts in the medical industry, robotics, food and beverage industry, aerospace, and any industry that requires high-strength applications. Stainless steel is an ideal material for applications such as:

-Medical instruments

-Machine parts

-Vacuum and pressure vessels

-Parts for tractors

-Heavy construction equipment

-Gears

Benefits of Stainless Steel 316/316L and 304/304L



-Processed for improved machinability

-Outstanding uniformity

-Faster machining speeds

-Corrosion resistant

-Longer tool life

-Lower total cost of machined parts



Benefits of Stainless Steel 303



-Resistant to oxidation

-Non-magnetic austenitic stainless steel

-Corrosion-resistant properties

-Designed to exhibit improved machinability



Benefits of Stainless Steel Type 360 (17-4 SS)



-Designed to exhibit improved machinability

-Superior corrosion resistance

-High strength in all conditions

-Precipitation-hardening martensitic stainless steel





The tolerance of CNC Machining For Stainless Steel Parts



Type
 		 Tolerance
Linear dimension
 		 +/- 0.025 mm
+/- 0.001 inch

Hole diameters (not reamed) +/- 0.025 mm
+/- 0.001 inch

Shaft diameters +/- 0.025 mm
+/- 0.001 inch

Part size limit 950 * 650 *550 mm
38.0 * 22.5 * 22.5 inch







We have an ensuring Quality sysem for our clients.


5 Axis Stainless Steel CNC Machining Services For Metal Enclosure Parts 0



Advantages and Benefits of Steel CNC Machining:



  • Rapid Turnaround: Using the latest in steel CNC machining and online quoting technologies, JYH produces highly accurate, quick turn machined parts in as fast as 1- 2 days.
  • Custom Finishes: Select from a variety of finishes on metal,built to precise design specifications.
  • Material Selection: Choose from over 50 metal, Metal milling offers a variety of certified materials.
  • Precision: Offers high-precision tolerances ranging from +/-0.001″ – 0.005″, depending on customer needs.
  •







Payment method



5 Axis Stainless Steel CNC Machining Services For Metal Enclosure Parts 1





After service sales


 5 Axis Stainless Steel CNC Machining Services For Metal Enclosure Parts 2





Package way



5 Axis Stainless Steel CNC Machining Services For Metal Enclosure Parts 3



Shipping way



5 Axis Stainless Steel CNC Machining Services For Metal Enclosure Parts 4




FAQ:


1-What is the advantage of working with JYH company? Why should I choose your company to make my parts?

  • Our industrial CNC machining, and injection moulding services provide parts made directly from the customer’s 3D CAD model, reducing the likelihood of errors. Proprietary software automates toolpath generation to decrease manufacturing times and reduce costs.

2-What industries use JYH services?

  • We serve a variety of industries including medical device, automotive, lighting,Robot, aerospace,consumer product.



3-How many machines do you have?

  • We currently have more than 60 machines: roughly 40+ CNC mills and 30 Injection mold machine,10+ 3D printers. With our long history of growth, this number is always changing.



4-How do I get a quote?

  • To get a quote for all of our services, simply send us your 3D CAD model to us. You'll get an interactive quote within hours with free design feedback. If there are problem areas in the submitted design,we will provide free design feedback(DFM).

5-What types of files do you accept?

  • We can accept native SolidWorks or ProE files as well as solid 3D CAD models from other CAD systems output in IGES (.igs), STEP (.stp), ACIS (.sat) or Parasolid (.x_t or .x_b) format.

6-Do you provide First Article of Inspection (FAI) Service?

  • We can provide FAI as part of the unlimited offer.





7-What is payment term does your company can be acceptable?

  • We can accept T/T (50 prepayment should be paid before start the production; the 50% remaining payment should be paid after finish the project).



8-What is your lead time after we place an order with you?

Once get your order,we will sart to order review and it is usually takes 3-5 work days,but it should be finally to the actual product quantity, structure, post-processing.









CNC machining workshop



5 Axis Stainless Steel CNC Machining Services For Metal Enclosure Parts 5


  JYH technology, Your Professional CNC Machining Steel Series Service Partner!
