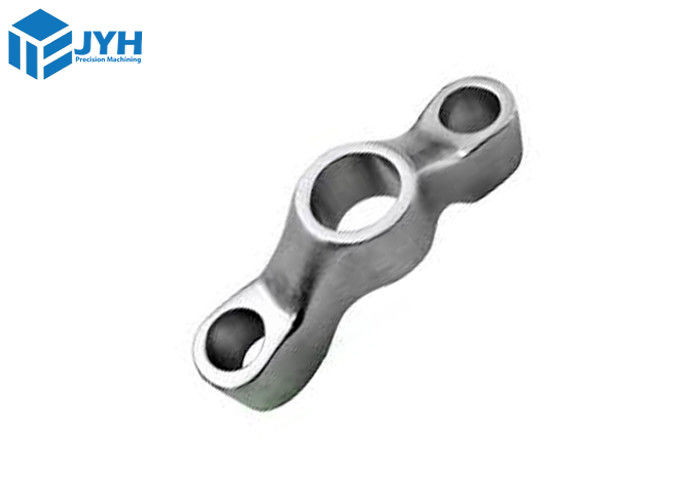

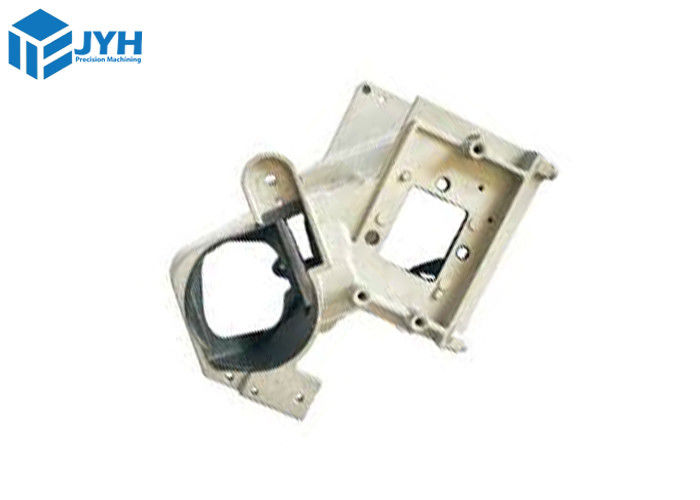

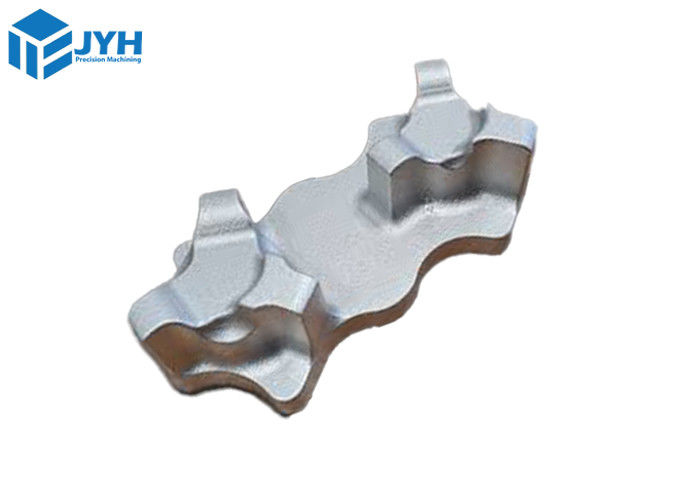

UAV Parts Magnesium Precision Machining CNC Parts for Aerospace Industry

  • UAV Parts Magnesium Precision Machining CNC Parts for Aerospace Industry
  • UAV Parts Magnesium Precision Machining CNC Parts for Aerospace Industry
  • UAV Parts Magnesium Precision Machining CNC Parts for Aerospace Industry
  • UAV Parts Magnesium Precision Machining CNC Parts for Aerospace Industry
Place of Origin China
Brand Name Precision CNC Magnesium Alloy Parts
Certification ISO9001 Certificate of quality system/16949
Model Number AZ31B / AZ91D
Minimum Order Quantity 1 piece
Price USD 20-100 pieces,negotiable
Packaging Details Use boxes made of corrugated cardboard,Wrap with bubbles facing inward or Custom wooden cases larger than 25KG.
Delivery Time 2-5 works day
Payment Terms T/T, Western Union,Paypal
Supply Ability 1000 piecs one weeks

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name UAV Parts Magnesium Precision Machining Delivery By Air/By Sea/By Express With Fedex/ups/dhl
Packaging Carton Box/Wooden Box/Pallet And Can Be Customized Tolerance ±0.05mm To ±0.004mm
Inspection Equipment CMM 100% Check The Product Processing Time 5 Working Days
Surface Hardness HV200 - HV350 MOQ One Pieces As Requested
High Light

Magnesium Precision Machining CNC Parts

,

JYH Magnesium Precision Machining
Leave a Message
Product Description

UAV Parts Magnesium Precision Machining CNC Parts for Aerospace Industry









We can provide Precise Tolerance with +/- 0.001mm and JYH's Machining Magnesium Alloy service is a good choice for high quality, ISO 9001 :2015 certified products.





JYH Manufacturing Capabilities



We have 60 CNC machining centers, 10 CNC lathes, 5 CNC longitudinal lathes, slow-speed wire cutting machines and so on, providing much manufacturing flexibility. Our engineers select the ideal equipment for an application based on the geometry, material, and volume of the part being machined to provide customers with premium quality parts at the good price.


UAV Parts Magnesium Precision Machining CNC Parts for Aerospace Industry 0



Application Range:



Car engine accessory bracket, Clutch housing, Gearbox housing, Instrument panel frame, Steering wheel frame phone,Drone UAV/Camera.Magnesium alloy is very suitable for this kind of product because it is very light.





UAV Parts Magnesium Precision Machining CNC Parts for Aerospace Industry 1



UAV Parts Magnesium Precision Machining CNC Parts for Aerospace Industry 2







Available material





Material Type Tensile Strength Elongation Yield Stress Density Maximum Temperature Tensile Modulus
AZ91D 230MPa 3.0% 150MPa 1.81g/㎤ 595℃ 44.8GPa
AZ80A 290MPa 2.0~5.0% 179MPa 1.81g/㎤ 595℃ 45Gpa
AZ31B 280MPa 8% 160MPa 1.76g/㎤ 595℃ 46GPa
ZK61B 330Mpa 12% 178MPa 1.81g/㎤ 630℃ 47GPa
AZ61B 280Mpa 14% 165Mpa 1.81g/㎤ 653℃ 45GPa
AM60B 221MPa 4.0% 131Mpa 1.81g/㎤ 428℃ 44.8GPa
WE43 225MPa 14% 165Mpa 1.81g/㎤ 630℃ 48GPa
QE22 280MPa 2.0~4.0% 170MPa 1.72g/㎤ 565℃ 47GPa






The Characteristics of Magnesium Parts Can be as follows:



  1. CNC machining magnesium product have high strength, the ratio of strength to quality of magnesium alloy has a capacity.
  2. Magnesium parts have small elastic modulus, good rigidity, strong shock resistance, and are not easily deformed after long-term use.
  3. Magnesium machining product have good resistance to electromagnetic interference and shielding.



Type of Magnesium Parts

 Tolerance of Magnesium Parts

Linear dimension


+/- 0.015 mm
+/- 0.002 inch

Hole diameters (not reamed)

+/- 0.015 mm
+/- 0.002 inch

Shaft diameters

+/- 0.015 mm
+/- 0.002 inch

Part size's limit

850 * 650 *550 mm
39.0 * 23.5 * 23.5 inch







Quality Inspection



  • In addition to our stringent in-process controls, all components must pass a thorough final inspection.

we have a coordinate measuring machine, salt spray testing machines, profile projectors and other precision

measuring devices, etc.



  • Customers' CAD drawings can be directly imported in the coordinate measuring machines (CMM) for a

direct comparison to the dimensions that are taken from the physical part.



  • All testing is conducted in a 20 degree Celsius climate-controlled inspection room and the CMM is calibrated to

GB/T 16857.2-2006 (ISO10360-2:2001) standards. All components and sub-assemblies are 100% inspected,

identified with a logo if required and a final inspection is generated pertaining to all the critical dimensions.



UAV Parts Magnesium Precision Machining CNC Parts for Aerospace Industry 3



UAV Parts Magnesium Precision Machining CNC Parts for Aerospace Industry 4



Our payment method



UAV Parts Magnesium Precision Machining CNC Parts for Aerospace Industry 5





Our shipping method



UAV Parts Magnesium Precision Machining CNC Parts for Aerospace Industry 6





Advantages And Challenges Of CNC Machining?





Accuracy and precision:



CNC machines are highly accurate and can consistently produce parts with tight tolerances.

This level of precision is difficult to achieve with manual machining processes.


Repeatability:



CNC machines can produce identical parts over and over again with the same high level of accuracy and precision.

This makes CNC machining ideal for large-scale production runs.


Machining Speed:



CNC machines can produce parts quickly and efficiently, especially when compared to manual machining processes.

This allows for faster turnaround times and shorter production cycles.


Flexibility:



CNC machines can be programmed to produce a wide range of parts and can handle a variety of materials, including metals,

plastics, and composites.


Reduced costs:



Because CNC machines are automated, they require less human intervention than manual machines.

This means that fewer workers are needed to operate and monitor the machines, which can result in lower labor costs.









Our workshop



UAV Parts Magnesium Precision Machining CNC Parts for Aerospace Industry 7

FAQ:


1-Is magnesium hard to machine?

  • Drilling, milling, turning, and other processes are smoother when using magnesium, and machining the material requires a significantly lower cutting force and overall production time than other metals.

2-Can you CNC magnesium?

  • Magnesium is a lightweight metal with high level of machining ability that can be CNC machined to create parts with high strength and excellent corrosion resistance. However, magnesium can be difficult to machine due to its tendency to ignite or explode if proper precautions are not taken



3-How many machines do you have?

  • We currently have more than 60 machines: roughly 40+ CNC mills and 30 Injection mold machine,10+ 3D printers. With our long history of growth, this number is always changing.



4-How do I get a quote?

  • To get a quote for all of our services, simply send us your 3D CAD model to us. You'll get an interactive quote within hours with free design feedback. If there are problem areas in the submitted design,we will provide free design feedback(DFM).

5-What types of files do you accept?

  • We can accept native SolidWorks or ProE files as well as solid 3D CAD models from other CAD systems output in IGES (.igs), STEP (.stp), ACIS (.sat) or Parasolid (.x_t or .x_b) format.

6-Do you provide First Article of Inspection (FAI) Service?

  • We can provide FAI as part of the unlimited offer.





7-What is payment term does your company can be acceptable?

  • We can accept T/T (50 prepayment should be paid before start the production; the 50% remaining payment should be paid after finish the project).




Magnesium​ Sample Pictures for your reference:




UAV Parts Magnesium Precision Machining CNC Parts for Aerospace Industry 8






JYH technology, Your Professional CNC Machining Magnesium Alloy Services Partner!
