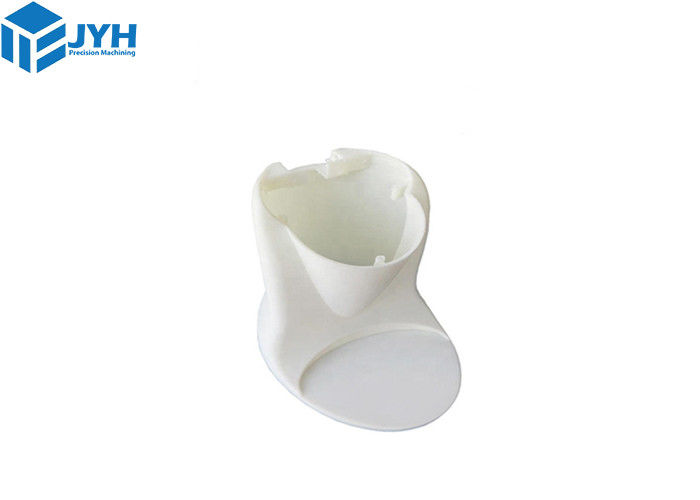

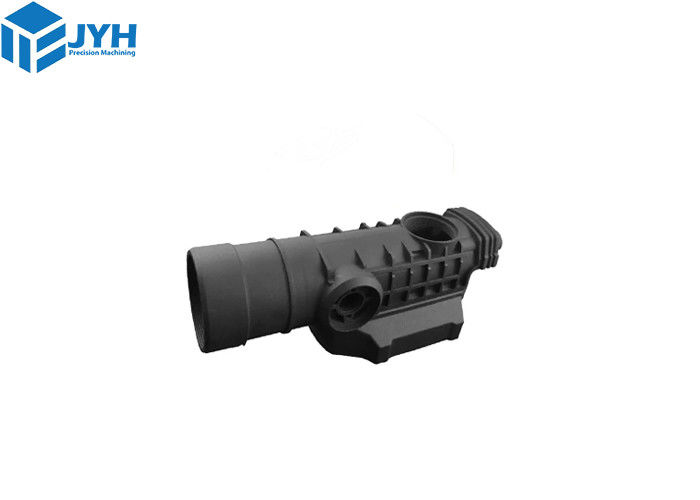

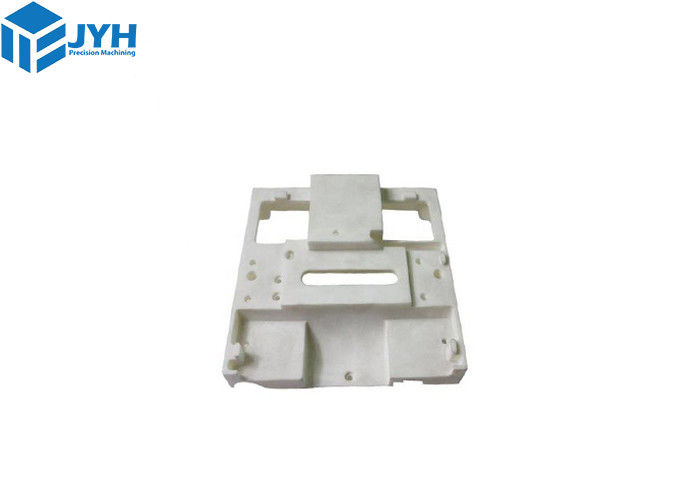

Custom 3d Printing OEM Resin Products And Plating Services

Place of Origin China
Brand Name JYH-Strong 3D Print Services
Certification ISO9001 Certificate of quality system/16949
Model Number Customized
Minimum Order Quantity 1 piece
Price USD 20-100 , negotiable
Packaging Details Use boxes made of corrugated cardboard,Wrap with bubbles facing inward or Custom wooden cases larger than 25KG.
Delivery Time 2-5 works day
Payment Terms L/C, T/T, Western Union, MoneyGram
Supply Ability 1000 piecs one weeks

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Material Capabilities Resin , ABS , PA 12+GF , Nylon And Customized Logo Accept Custom Logo
Drawing Format Can Be Customized ,such As STP , IGS , STL And So On Tolerance +/-0.01mm ~ +/-0.2mm Or As Per Client’s Needs
Product Type SLA /SLS Print Service Keyword 3D Printing Prototype
Delivery Time 10-15 Work Days
Highlight

Custom 3d printing OEM resin products

,

Plating Services OEM resin products

Leave a Message
Product Description

Custom 3d printing OEM resin products and plating


 3D printing is the process of turning a digital model into a tangible, solid three-dimensional object, usually by laying down many

successive thin layers of material. The reason 3D printing has caught on so quickly is because it has made manufacturing accessible

to more people than ever before. Layers of material are used to create 3D parts, and the subtractive manufacturing process cuts out

the final design from larger pieces of material.



The advantage of 3D Printing services:



  • 100% visual inspection for each part
  • Parts as fast as 12 hours
  • ISO 9001:2015 | AS9100D | ITAR Registered

What is electroplating and how does it work on 3D-printed resin parts?





Electroplating is usually applied on other metals. The reason is that the underlying material should be conductive. All (non-ESD) resins

are not conductive and the process would not work. During the years this was solved by pre-coating a non-conductive surface to produce

a thin conductive interface. This makes it possible to plate a variety of metals on the substrates. Mostly used plating metals are copper

and nickel alloys.


 Features of 3D printing





SLA process in 3D printing is a good choice for rapid prototyping and small batch production,because high precision parts with smooth surface are required in these production. SLA has a range of different materials,including ordinary photosensitive resin,high toughness photosensitive resin,high temperature resistant photosensitive resin and translucent /fully transparent photosensitive resin.





SLS process in 3D printing is a good choice for rapid prototyping and small batch production because of the excellent performance of processing materials . SLS components are increasingly used not only in hand prototype,but also in mass production applications in many industries . SLS produces parts with high precision and excellent performance,and can print parts with complex geometry.





SLM process in 3D printing is a good choice for manufacturing complex metal parts . It is almost
impossible or costly to manufacture these complex metal parts through traditional processes . Metal printing is widely used in automotive,aerospace and medical industries . It is a good choice for weight reduction applications and dense parts.





Available 3D Printing Materials



  • Metals

Aluminium



Cobalt Chrome



Custom 3d Printing OEM Resin Products And Plating Services 0 Custom 3d Printing OEM Resin Products And Plating Services 1

Aluminum alloy AlSi10Mg shares similarities with the 3000 series alloy commonly employed in casting and die casting. This alloy boasts a favorable combination of strength and lightweight properties, alongside impressive resistance to high temperatures and corrosion.



Key Advantages:

  • High stiffness and strength relative to weigh.
  • Thermal and electrical conductivity.
  • High temperature and corrosion resistance.



Cobalt Chrome (Co28Cr6Mo) stands as a remarkable superalloy primarily composed of cobalt and chromium. Boasting exceptional tensile strength and remarkable resistance to creep and corrosion, it emerges as an ideal material selection for aerospace components and medical instruments.



Key Advantages:

  • Exceptional Tensile and Creep Performance.
  • Unparalleled Corrosion Resistance





Stainless Steel





Inconel



Custom 3d Printing OEM Resin Products And Plating Services 2 Custom 3d Printing OEM Resin Products And Plating Services 3

Stainless steel stands out as a corrosion-resistant metal with remarkable hardness, rendering it an adaptable material choice. Our 3D printing service provides two stainless steel grades:



  • Stainless Steel 17-4 PH
  • Stainless Steel 316L



Key Advantages:

  • Heat treated for full hardness and strength
  • Acid and corrosion resistance
  • High ductility



Inconel stands as a high-strength, corrosion-resistant nickel-chromium superalloy, perfectly suited for components subjected to extreme temperatures and mechanical stress. Inconel 718 components undergo stress relief processes, with the option for solution and aging according to AMS 5663 standards, resulting in heightened tensile strength and hardness.


Key Advantages:

  • Exceptional Oxidation and Corrosion Resistance.
  • Superior Tensile, Fatigue, Creep, and Rupture Strength.
  • Large Format Availability: Parts up to 31.5” x 15.7” x 19.7” (800mm x 400mm x 500mm).



  • Plastics



ABS





PA (Nylon)



Custom 3d Printing OEM Resin Products And Plating Services 4 Custom 3d Printing OEM Resin Products And Plating Services 5











ABS or Acrylonitrile Butadiene Styrene is available through our 3D printing service. It's an all-purpose material that produces parts with fine features and smooth surface finishes.

We offer various nylon grades for SLS and MJF 3D printing:



  • PA 12 White (PA 650): Economical, with good strength and stiffness.
  • PA 11 Black (PA 850): Highest elongation at break among nylon options. Uniform deep-black color for a clean appearance.
  • PA 12 Black: Offers nearly isotropic mechanical properties and is cost-effective.
  • PA 12 Mineral-Filled (PA620-MF): Provides the highest stiffness and temperature resistance among nylon choices.
  • PA 12 40% Glass-Filled (PA614-GS): Ideal for long-term wear resistance and high stiffness.
  • PA 12 40% Glass-Filled Black: An economical option with heat deflection properties.







Polycarbonate





Polypropylene



Custom 3d Printing OEM Resin Products And Plating Services 6 Custom 3d Printing OEM Resin Products And Plating Services 7

Polycarbonate is a versatile material known for its stiffness and excellent heat resistance. Our stereolithography (SLA) process offers various polycarbonate-like materials:

  • PC-Like Translucent (Accura 60): Offers high stiffness and customizable transparency through finishing.
  • PC-Like Advanced High Temp (Accura 5530): Features a high elastic modulus and can achieve a heat deflection as high as 482°F.
  • Ceramic-Like Advanced High Temp (PerFORM): Known for its extreme stiffness and can achieve a heat deflection as high as 514°F when thermally cured



We offer three distinct polypropylene-inspired 3D printing materials, each with unique advantages:

  • Polypropylene Natural: This is authentic polypropylene, renowned for its exceptional chemical resistance among SLS and MJF materials. It's tough, durable, and flexible, while also being exceptionally lightweight.
  • PP-Like Translucent White (Somos 9120): This SLA material has a translucent appearance and is semi-flexible. Compared to typical injection-molded polypropylene, 9120 boasts similar tensile strength, tensile modulus, flexural modulus, and impact strength.
  • Carbon FPU 50: This Carbon material emulates polypropylene properties remarkably well. It stands out with its impressive 200% elongation, making it the most flexible PP-like option available.









What‘s sls 3D printing ?



1. Design Your Prototype: Use 3D modeling software to create a digital 3D model of your prototype.



2. File Preparation: Save your 3D model in a file format common formats include STLand OBJ .



3. Pre-Processing:Some 3D printing software or online services provide pre-processing tools. These tools may include features for orienting, scaling, and adding support structures to your model.



4. Material Selection: SLS commonly uses powdered nylon, but other materials like glass-filled nylon,. The material choice depends on the properties you need in your prototype.



5. SLS Printing:The printer will follow the digital model's instructions to selectively sinter layers of powdered material, building up the prototype.



6. Cooling: After each layer is sintered, it's allowed to cool before the next layer is added. This helps ensure that the layers fuse correctly and maintain structural integrity.



7. Post-Processing: Once the printing is complete, the prototype may need to undergo post-processing. This can involve removing excess powder, cleaning the part, and possibly surface finishing or treating it depending on your requirements.

Standard and non-standard parts customization.
What we do is 3D printing service, and we can print anything you want. The material such like resin, nylon, metal, anything we can do.

We also do in CNC Machine parts Service; CNC Milling, CNC Turning; Vacuum casting; Injection Modling, Blowing molding, Rubber school compression molding, Sheet metal processing etc.
We also can do many different type finish such like: Anodization, Polishing smooth etc.



3D printing post processing available



Name



Description



sandblast



The main function is to remove dirt and rust on the surface of the workpiece, increase the adhesion of the surface of the workpiece, and prepare for the subsequent surface treatment



wire-drawing



Pass the material through the upper and lower sand belts and pull out the material surface traces



Oil injection



Liquid paint and self-drying paint are suitable for some precision products



product



Electroplating is to attach a layer of other metals on the surface of the material to increase the corrosion resistance of the metal and achieve a certain beautification effect



anodizing



The formation of a dense protective film on the surface of the workpiece to increase the corrosion resistance of the workpiece generally has two methods: chemical oxidation and anodic oxidation



Screen printing



The process of screen printing various marks on the surface of a material





Shipping way:





Custom 3d Printing OEM Resin Products And Plating Services 8





Payment method:





Custom 3d Printing OEM Resin Products And Plating Services 9





QC ensure the qulity


Custom 3d Printing OEM Resin Products And Plating Services 10

Customized 3d ABS Resin Prototypes Printing Service And 3d Design Drawing Prototype​​,JYH is your best partner!
