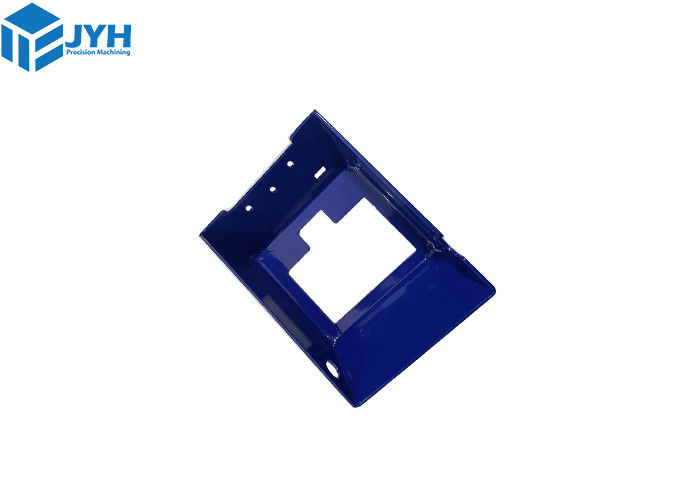

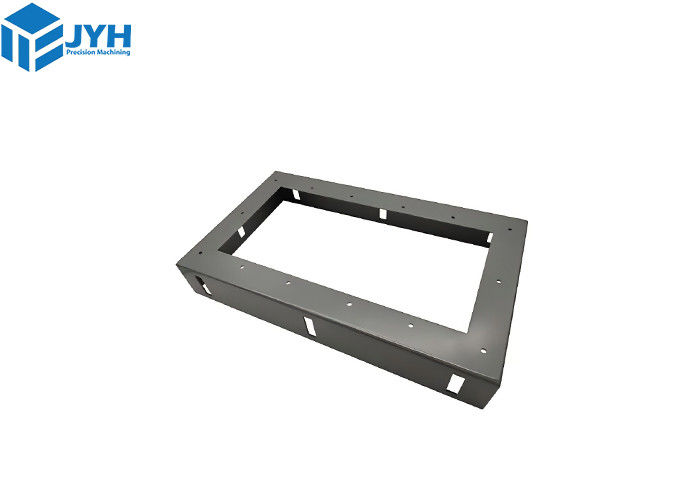

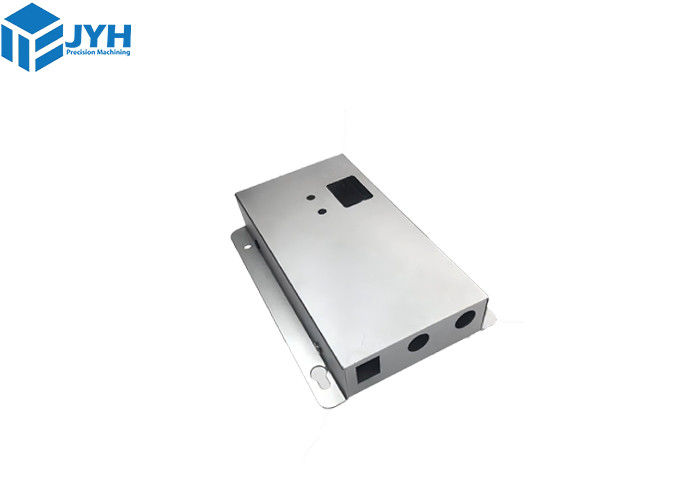

JYH Sheet Metal Fabrication Services Custom Metal Stamping Parts Frame
| Place of Origin | China |
|---|---|
| Brand Name | Auto sheet metal fabrication |
| Certification | ISO9001 Certificate of quality system/16949 |
| Model Number | SPCC，SHCC ，SECC ，SGCC |
| Minimum Order Quantity | 1 piece |
| Price | USD 20-100 pieces,negotiable |
| Packaging Details | Use boxes made of corrugated cardboard,Wrap with bubbles facing inward or Custom wooden cases larger than 25KG. |
| Delivery Time | 5-8 works day |
| Payment Terms | T/T, Western Union,Paypal |
| Supply Ability | 1000 piecs one weeks |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | Custom Sheet Metal | Surface Treatment | Zinc Plating, Nickel Plating, Powder Spraying Or Customer Requirements |
|---|---|---|---|
| Color | Black,grey Or Customized | Process | Sheet Metal Fabrication Steel Laser , Stamping, Welding Etc. |
| Tolerance | +/-0.002~+/-0.005mm | Size | According To The Design |
| High Light | Custom Metal Stamping Parts Frame,Custom Sheet Metal Fabrication Services,Metal Stamping Parts Frame |
||
Product Description
JYH Sheet Metal Fabrication Services Custom Metal Stamping Parts Frame
Sheet Metal Stamping Services
Sheet metal stamping is a widely used sheet metal processing technology. In the process of material deformation, laser cutting, CNC
punching, bending, drawing, embossing, etc., it is necessary to rely on a variety of metal stamping dies to limit the shape of the product.
The process of making metal plates into solid shapes.
Precision sheet metal stamping is an efficient solution for high volume production, providing high quality metal parts for aerospace, automotive manufacturing, medical devices, electronics, industrial, urban infrastructure and other industries.
Punching is a forming process that uses a machine to force a tool, through the work piece to create a hole via or any shape that cuts metal as it passes through or under a press. It is one of the most mature technologies in metal fabrication, and yet it’s still one of the most misunderstood.
- ISO 9001: 2016
- Fast delivery service with DHL/FEDEX/UPS
- Standard-DIN-2768-1-fine
- Free quotation with DFM review in 1 hours
- Deburr all sharp edges: 0.1 - 0.2 mm
- Surface roughness: Ra 1.6
JYH Precision Quality assurance
Our unwavering commitment to product quality assurance in sheet metal fabrication is evident in every aspect of our process.
Our ISO 9001:2015, ISO 13485, and AS9100D certifications reinforce our commitment to maintaining the highest standards.
Sheet Metal Stamping Services
|
Progressive Die Stamping Services
Progressive die stamping is widely used in electronic components and automobile manufacturing industries, which can realize multi-functional stamping operations in the same set of progressive die molds, such as cutting, stamping, punching, stretching and automatic feeding functions.
|
Deep Drawing Stamping Services
relying on custom deep drawing services, metal sheets can be manufactured into thin-walled parts with cavity structures such as trapezoids, cones, spheres, rectangles, etc., keeping the wall thickness uniform, which is one of the very important sheet metal fabrication processes .
|
|
Compound Die Stamping Services
Compound die stamping is a high-efficiency precision stamping process. Integrate multiple stamping processes in the same precision stamping die to create precision stamped parts with complex structures in one stamping process.
|
Sheet Metal Stamping Dies & Processes
Supro MFG has a professional in-house stamping die factory, which can reasonably design and manufacture stamping dies according to customers' product requirements and applications. We have a professional precision stamping die engineering team, providing a full range of stamping die technical support and manufacturing services.
|
What is Sheet Metal Frame Fabrication?
Sheet metal frame fabrication is the process of manufacturing frames using sheet metal as the primary material. Frames made from sheet metal are versatile and widely used in various industries, including automotive, aerospace, construction, electronics, and industrial machinery. These frames provide structural support, enclosure, and protection for components and equipment, contributing to the stability and functionality of the final product.
The fabrication process involves transforming flat sheet metal into the desired frame shape through cutting, bending, welding, and assembling techniques. Sheet metal, typically made from materials such as steel, aluminum, or stainless steel, is a popular choice for frame fabrication due to its strength, durability, and ease of customization.
Why metal stamping?
In metal stamping, metal sheets in the form of rolls or blanks are fed into the stamping press. The die, which is mounted in the press, strikes the metal with great force to form the desired shape or outline. Common stamping operations include flanging, embossing, stamping, bending, blanking and punching.
We start each project with a technical, detailed and collaborative process to ensure a precise and timely product launch. When you work with us for your stamping needs, you will benefit from:
|
Improved efficiency:Metal stamping is rapid. Depending on the size and complexity of the design and material thickness, our stamping presses can create hundreds or thousands of parts per hour. This is extremely valuable for high-volume orders and ensures fast turnaround times for large range of quantities.
|
|
High precision and accuracy:We use precision-designed tooling and dies to ensure a high degree of accuracy for every project. Our durable dies are built for minimal wear over time, so parts have little variation. Because tooling is created for each stamping project, parts meet all tolerances and dimensional specifications.
|
|
Versatility:We can stamp materials in different widths and thicknesses. This flexibility allows us to stamp varying sized parts, as well as simple, complex, or intricate designs.
|
Packing and Shipping:
Metal Frame Fabrication Packaging and Shipping:
- The metal frames will be securely packed in custom wooden boxes to ensure safety during transport.
- The package will be clearly labeled with product information and shipping details.
- The metal frame will be transported by a reliable freight company.
Why use JYH’s for sheet metal fabrication?
|
Fast quoting & DFM feedback
|
Quality & reliability |
|
Build and edit your quote within 30 minutes. Review your parts for manufacturability and assess the cost of different materials, processes and lead times for your project in real time.
|
Dedicated JYH’s team to ensure your parts consistently meet your quality expectations. We also offer phone, email and chat support for any concerns or questions you may have.
|
Our workshop
JYH Precision Shipping way
JYH Precision Payment method
JYH Package way
FAQ
1. What are the tolerances for fabricated parts?
Sheet metal fabrication tolerances refer to the acceptable deviations for features of sheet metal parts required for accurate and consistent installation and integration.For sheet metal parts, ISO 2768-mk is usually used to ensure proper control of the elements of geometry and size.
The following will show you 7 tolerance standards range of linear and angular dimensions, flatness & straightness, cylindricity, and circularity.
2. How much does sheet metal fabrication cost?
Every aspect of a sheet metal fabrication project comes with an associated cost — the design, possible prototype, finishing processes, and others. Asides from the process itself, materials also cost money.
3.Whatis the lead time for our project?
It need to based on your product's size and QTY/Structure.
JYH is your best partner of Sheet Metal Enclosure Fabrication And Production Stainless Steel Sheet Parts!
