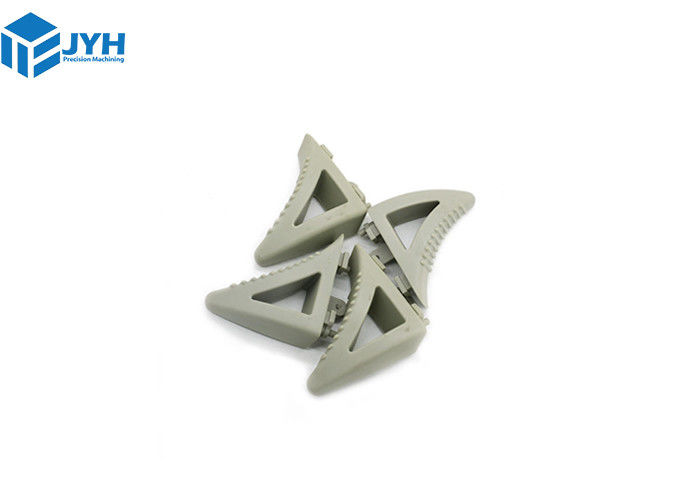

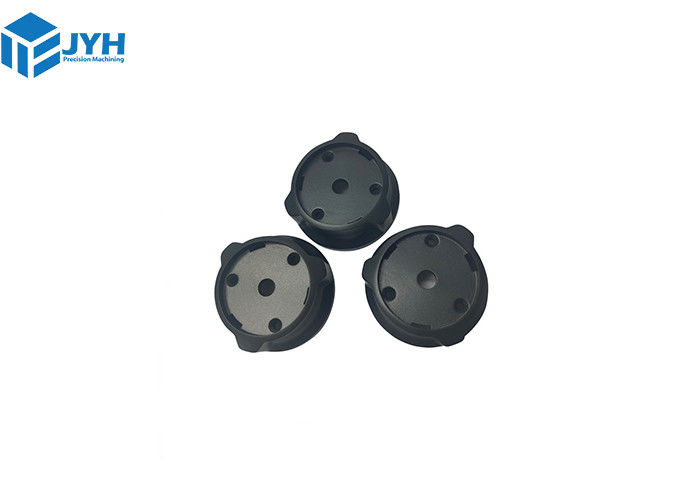

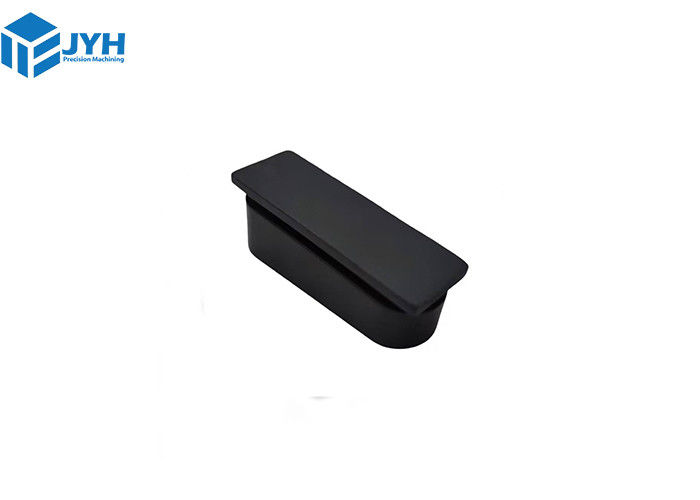

OEM Rapid Prototyping Silicone Rubber Mold Vacuum Casting Polyurethane Castings

Place of Origin China
Brand Name ABS-like Polyurethanes
Certification ISO9001 Certificate of quality system/16949
Model Number Customized
Minimum Order Quantity 10 piece
Price USD 5-100 pieces,negotiable
Packaging Details 1.Use boxes made of corrugated cardboard,Wrap with bubbles facing inward or Custom wooden cases larger than 25KG. 2.Custom blister box.
Delivery Time 9-15 works day
Payment Terms T/T, Western Union,Paypal
Supply Ability 100000 piecs one weeks

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Surface Finish Brushed, Anodizing,Passivating,Nickle Plated,Chrome Plating,Plating,zinc Name Custom Silicone Mold And Vacuum Casting
Material Pp/PC/POM/PA66 / TPE/TPU/PBT/rubber, Etc. Color Black , Any Colors And As Your Required
Logo Accept Custom Logo Tolerance +/- 0.01mm And As Your Requested
Application Medical Device/Automotive/Robot/Home Appliances/Consumer Electronics
Highlight

OEM rapid prototyping polyurethane castings

,

vacuum casting polyurethane castings

,

OEM rapid prototyping silicone rubber mold

Leave a Message
Product Description

OEM rapid prototyping silicone rubber mold vacuum casting polyurethane castings





What Is Vacuum Casting Or Urethane Casting?



Vacuum casting or urethane casting is a process that involves pouring urethane resin into a space between two silicone mold halves. Using a vacuum chamber to extract air from the mold during the vacuum casting technique helps guarantee that the object takes on the correct shape.



This vacuum casting technique is often used to make rubber and plastic items. Since urethane molding can be quicker and less expensive than other techniques like injection molding, it often finds use in prototyping projects or small-scale production runs. The procedure creates high-quality, bubble-free castings with a flawless, smoothly textured surface since it is done under vacuum.



Application and Advantage:



Short lead times



Silicone Vacuum casting tooling will be finished within 5-8 days;



Low tooling cost



Liquid Silicone is used to build the vacuum casting tooling. it is very low-cost than steel plastic injection mold;



End-use Application



Silicone Vacuum casting systems produce high-quality parts that closely replicate the performance attributes of injection moulded parts;



Speed to market



Best solutions for developing products, fast turnaround to change the RTV silicone mold to meet market demands in various industries including medical, consumer electronics, automotive.





There are some differences:



In injection molding, molten polymer is pushed into the mold cavity under high pressure and high temperature using a hopper and lead screw. Vacuum casting operates at low temperatures. Instead of molten plastic, it works with liquid resins that are drawn into the mold under a vacuum, much like the capillary action inside a plant stem. So while there are many different resins available to mimic various polymers, prototyping in the final injection-molded material is not possible.



After oven-curing, parts still undergo some post-curing for up to a week and remain vulnerable to UV radiation and high temperatures.



Because the mold is flexible, there are limits to part size and shape. Still, there are specific techniques to enable exceptions. For example, phased casting is the use of metal supports to counteract gravity for casting elongated parts in a three or four-part mold.



Vacuum casting handles variable wall thickness better than injection molding, because there is no heating-cooling cycle of the cast material. This results in less part distortion.



A silicone mold allows for significant undercuts in the part design. However, when testing for injection molding, it’s recommended to stick to the injection molded design as much as possible and build in the required draft angles of the final product.



Vacuum casting results in nearly zero waste, whereas in injection molding up to 20% of the used polymer is lost due to scrap rates, residues, and overproduction.





Vacuum Urethane Casting



In this step, the original master pattern is replicated through casting in a vacuum chamber. First, the mold is taped to a wooden board and vent straws plus a pouring funnel are added to it.



The two-component resin is measured and mixed with a coloring agent for pigmentation. Then, the casting material is degassed in a vacuum chamber for a few minutes.



The polyurethane blend is now ready for pouring. The riser straws will indicate when the cavity is completely filled up. After curing at 70˚C, the mold is opened to reveal a carbon copy of the original model with all details and surface textures preserved.



The finalization consists of trimming the edges of flash material, an extra polishing cycle with 1000-grit sandpaper, and oven-curing to improve

the part’s material properties.



Our Vacuum Casting Services





   Experience high-quality production parts with Vacuum Casting, also known as Urethane or Polyurethane casting.

At JYH, we offer a vast selection of plastic materials and can cast parts ranging from small headphones to large 2-meter car bumpers. Skip the lengthy lead times and tooling costs – choose Vacuum Casting for efficient solutions.





Our Capabilities





Description



Maximum build size





1.9 x 1.6 x 1.5 m



Typical mould life



15 – 25 parts





Materials





Wide range of thermoplastics, rubbers, transparent resins, etc.





Lead time





From as fast as 5 days





Why Choose JYH- precision for Vacuum Casting Rapid Prototyping ​ Services?



   In the realm of vacuum casting, a multitude of manufacturers are available for selection. Opting for the correct one holds

paramount importance to achieve your anticipated outcomes.



  • Outstanding Quality and Rapid Performance

    At JYH Precision, we believe that quality and speed should go hand in hand. Our approach combines extensive industry expertise with cutting-edge tools and technologies, enabling us to provide top-notch vacuum casting services within tight timelines (usually 5 to 7 days).

  • Enhancing Your Product with Finishing Services

  Vacuum casting is just a part of our capabilities. we provide an array of supplementary finishing services that contribute to bringing your product to its full potential. These services encompass machining, media blasting, printing, painting, and beyond.

  • Smart Quotes Tailored to Your Every Project

   We recognize that your requirements are distinct, and unnecessary expenses are undesirable. Hence, we refrain from imposing minimum order volumes or dollar values for our vacuum casting services. we ensure swift and precise quotes within 1 hours or less for almost all projects.

  • Supporting Design for Manufacturing and Remote Flexibility

  Vacuum casting is frequently utilized for prototyping, we understand that many of the products . To facilitate their refinement, we extend comprehensive design for manufacturing assistance to our clients.







Features



Urethane Casting



3D printing



Surface Quality

The product surface is smooth and even, suitable for products with high appearance requirements



Product surfaces often show signs of lamination, suitable for non-structural parts and prototyping



Production batch

Suitable for small and medium batch production with low cost





More suitable for small-scale production and personalized customization



Precision and detail

Higher accuracy and detail for manufacturing precision parts and models





Relatively low precision and detail, suitable for simpler structures and rapid prototyping
