Precision CNC Machined Aluminum Housing
High-Performance Structural Component for Demanding Engineering Applications
Product Overview

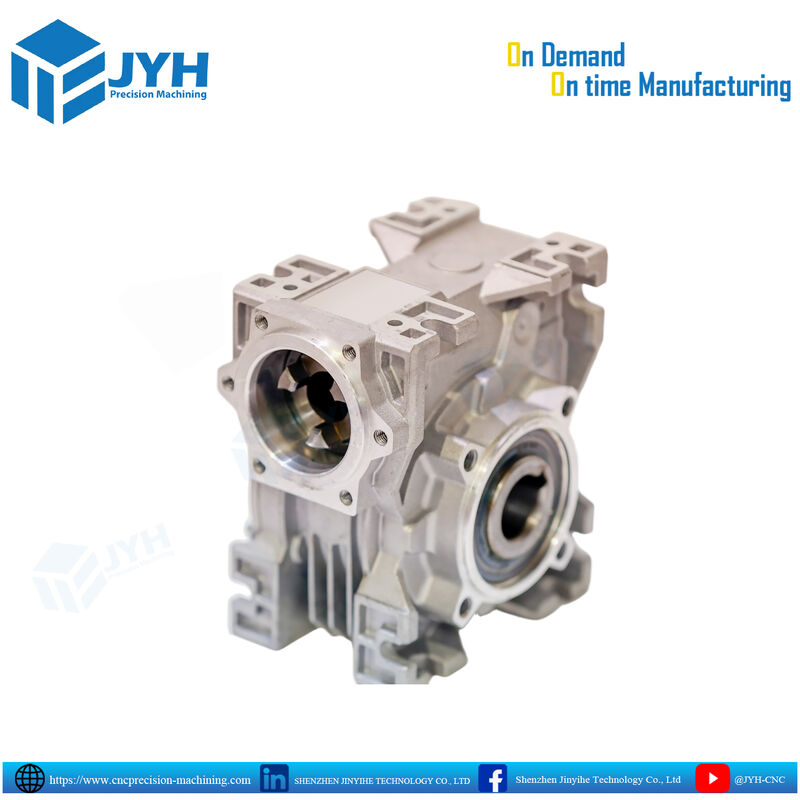

This precision CNC machined aluminum housing is a complex, high-accuracy component designed for applications that require tight tolerances, structural strength, and excellent surface integrity. Manufactured using advanced multi-axis CNC machining technology, this part features intricate internal cavities, precision bores, and multiple mounting interfaces, making it ideal for critical mechanical assemblies.
With over a decade of expertise in mechanical engineering content and manufacturing insight, this component reflects a balance between design optimization, manufacturability, and performance reliability.
Key Features & Advantages
✔ High Precision Machining
Achieved through 3-axis, 4-axis, and 5-axis CNC machining processes to ensure tight dimensional tolerances and consistent repeatability.
✔ Complex Geometry Capability
Designed to accommodate deep cavities, multi-face machining, and intricate structural features without compromising accuracy.
✔ Superior Surface Finish
Smooth internal and external surfaces suitable for direct assembly or further surface treatments such as anodizing.
✔ Lightweight yet Durable
Manufactured from high-grade aluminum alloys, offering excellent strength-to-weight ratio and corrosion resistance.
✔ Assembly-Ready Design
Precision threads, bores, and sealing interfaces ensure seamless integration into larger mechanical systems.
Technical Specifications
| Parameter |
Specification |
| Material |
Aluminum Alloy (e.g., 6061 / 7075) |
| Manufacturing Process |
CNC Milling, CNC Turning |
| Machining Capability |
3-axis / 4-axis / 5-axis |
| Tolerance |
±0.01 mm (or tighter upon request) |
| Surface Finish |
Ra 0.8 – 3.2 μm (customizable) |
| Surface Treatment Options |
Anodizing, Sandblasting, Polishing |
| Threading |
Metric / UNC / UNF |
| Inspection |
100% QC with reports available |
| Application Temperature |
Depends on material selection |
Manufacturing Process Flow
- Raw Material Inspection & Preparation
- Rough Machining (Bulk Material Removal)
- Precision CNC Machining (Multi-axis operations)
- Secondary Operations (Drilling, Tapping, Boring)
- Surface Finishing & Deburring
- Final Quality Inspection (Dimensional & Visual)
- Packaging & Shipment
Application Industries
This aluminum housing is widely used in:
- Aerospace & UAV systems
- Robotics & Automation equipment
- Energy & Power systems
- Automotive performance components
- Industrial machinery & equipment
Material Comparison (Aluminum Options)
| Property |
Aluminum 6061 |
Aluminum 7075 |
| Strength |
Medium |
Very High |
| Weight |
Light |
Light |
| Corrosion Resistance |
Excellent |
Good |
| Machinability |
Excellent |
Good |
| Cost |
Lower |
Higher |
| Typical Use |
General engineering parts |
High-stress applications |
Quality Assurance
We implement a strict quality control system to ensure every part meets customer specifications:
- CMM (Coordinate Measuring Machine) inspection
- Thread gauge and bore inspection
- Surface roughness testing
- Visual and dimensional verification
- Full QC reports with photos/videos available upon request
Why Choose This Product?
- Proven reliability in demanding environments
- High repeatability for batch production
- Flexible customization based on drawings or samples
- Cost-effective solution for both prototyping and mass production
Customization Options
We support full customization based on your requirements:
- Material selection
- Surface treatment
- Tolerance adjustments
- Logo marking or engraving
- Packaging preferences
Conclusion
This CNC machined aluminum housing represents a high standard of precision engineering, combining advanced manufacturing techniques with practical design functionality. It is an ideal solution for industries that demand accuracy, durability, and performance consistency.
