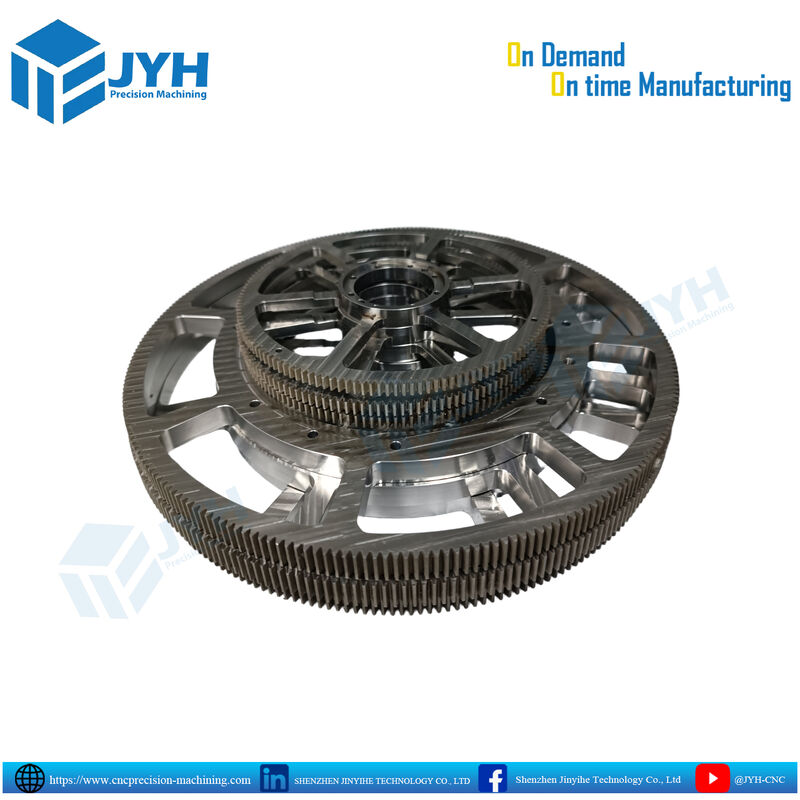

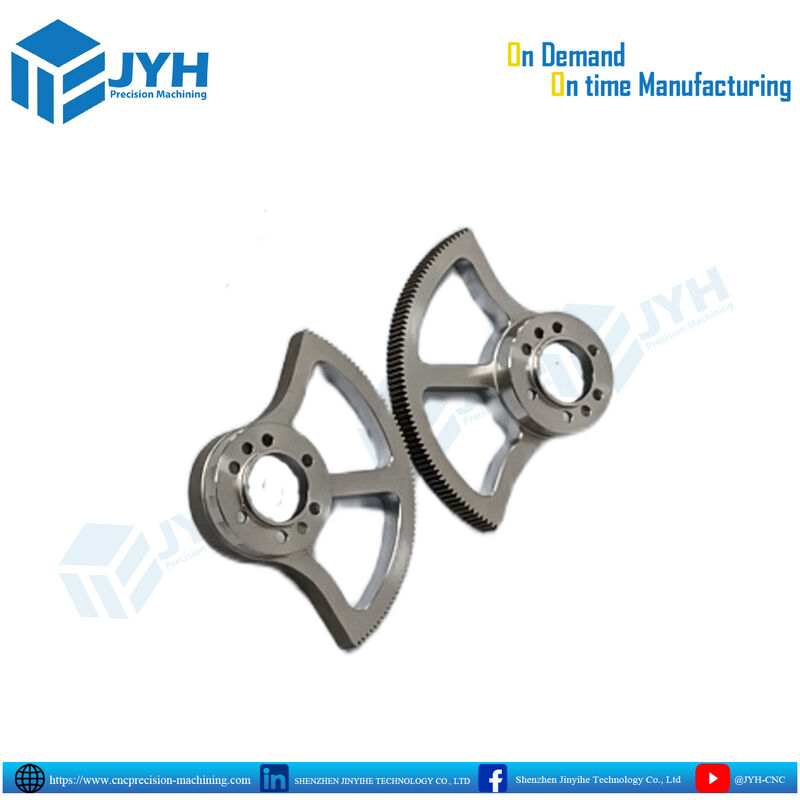

High Precision Wire EDM Gear Parts
Custom gear manufacturing solutions for demanding industrial applications
Product Overview
At JYH CNC Precision Machining Company, we specialize in manufacturing high-precision Wire EDM gear parts for demanding industrial and mechanical applications. Using advanced Wire Electrical Discharge Machining (Wire EDM) technology, we produce complex gear profiles, sharp internal corners, intricate tooth forms, and tight-tolerance components that are difficult to achieve through conventional machining methods.
Our Wire EDM gear parts are ideal for industries requiring high dimensional accuracy, excellent edge finish, stable meshing performance, and consistent repeatability, including automation, robotics, aerospace, precision equipment, medical devices, and custom machinery.
Core Specifications
| Item |
Specification |
| Product Name |
Wire EDM Gear Parts |
| Material |
Tool Steel / Stainless Steel / Carbon Steel / Aluminum / Brass / Custom |
| Manufacturing Process |
Wire EDM Cutting + Secondary Machining (if required) |
| Tolerance |
±0.01 mm to ±0.005 mm |
| Surface Finish |
Fine EDM Finish / Deburring / Custom Surface Treatment |
| Tooth Profile |
Spur Gear / Internal Gear / Special Gear Profile / Custom |
| Application |
Robotics, Automation, Aerospace, Medical, Precision Machinery |
| Production Volume |
Prototype to Small / Medium Batch Production |
| Inspection |
CMM Inspection, Profile Measurement, Full Dimensional Report |
Key Features & Benefits
High Precision Gear Profile Cutting
Wire EDM enables production of accurate tooth geometry, fine profiles, and excellent repeatability, making it ideal for precision gear applications.
Excellent for Complex and Thin Parts
This process is especially suitable for:
- Fine gear teeth
- Thin wall gear structures
- Internal gear profiles
- Sharp corners and intricate contours
Superior Edge Quality
Wire EDM produces clean edges and precise contours with minimal mechanical stress on the workpiece.
Suitable for Hard Materials
We can machine hardened conductive materials that are difficult to cut using traditional CNC methods.
Custom Manufacturing Support
We provide OEM and custom gear part manufacturing according to your 2D drawings, 3D files, or technical requirements.
Applications
Our Wire EDM gear parts are widely used in:
- Industrial automation systems
- Robotic gear transmission systems
- Aerospace motion control mechanisms
- Medical precision devices
- Custom machinery and tooling
- High-precision transmission assemblies
Why Choose Wire EDM for Gear Parts?
Compared with traditional machining methods, Wire EDM offers unique advantages for precision gear manufacturing:
- Better profile accuracy
- Ability to machine hard materials
- Minimal cutting force and deformation
- Ideal for complex internal shapes
- Excellent consistency for prototype and low-volume production
This makes Wire EDM an excellent choice for custom gears, precision motion parts, and specialty mechanical transmission components.
Why Choose JYH CNC Precision Machining Company
With strong experience in precision machining and custom mechanical parts manufacturing, we provide customers with:
- Tight tolerance manufacturing
- Stable product quality
- Cost-effective prototype solutions
- Professional engineering support
- Fast response and reliable delivery
Our team can help optimize your design for manufacturability, precision, and cost control.
Frequently Asked Questions
What is Wire EDM used for in gear manufacturing?
Wire EDM is used to cut precise gear profiles, internal gear shapes, and complex contours with high accuracy and excellent edge finish.
What materials can be used for Wire EDM gear parts?
We commonly process tool steel, stainless steel, carbon steel, brass, aluminum, and other conductive materials.
Can you produce custom gear profiles?
Yes, we can manufacture custom spur gears, internal gears, and special gear shapes based on your drawings or CAD files.
What tolerance can you achieve?
We can achieve tolerances up to ± 0.005 mm, depending on the gear design and material.
Looking for a reliable supplier of high precision Wire EDM gear parts?
Send us your drawings today and get a fast quotation, engineering support, and precision manufacturing solution.
