High Precision Magnesium Machined Parts – Lightweight Strength for High-Performance Applications

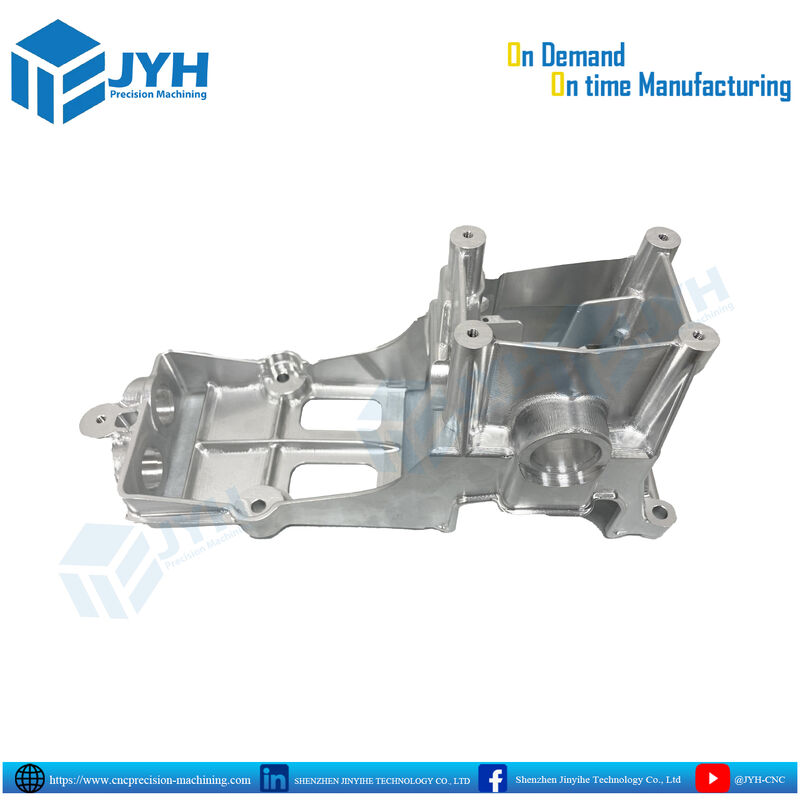

At JYH Precision Machining, we specialize in producing high-precision magnesium CNC machined components designed for industries where weight reduction, strength-to-weight ratio, and dimensional stability are critical. The part shown is a complex magnesium structural housing/bracket featuring multi-pocket milling, reinforced ribs, threaded mounting pillars, and high-tolerance bearing/shaft seating areas—ideal for demanding aerospace, UAV, automotive, robotics, and industrial equipment applications.
Magnesium is one of the lightest structural metals available, making it the preferred solution for manufacturers aiming to reduce overall system weight while maintaining strong mechanical performance. With advanced machining equipment and strict quality control, we deliver magnesium components with excellent surface finish, tight tolerances, and reliable repeatability.
Product Overview
This precision magnesium CNC machined housing is engineered for applications requiring:
- Ultra-lightweight structural support
- High stiffness and vibration resistance
- Accurate positioning features
- Reliable assembly alignment
- Consistent quality for batch production
The part is manufactured using high-performance CNC milling processes, ensuring excellent flatness, sharp edge control, and dimensional accuracy across complex geometry.
Key Features & Advantages
✅ Lightweight Design (Weight Reduction Leader)
Magnesium alloys are approximately 30% lighter than aluminum and significantly lighter than steel. This makes the component highly suitable for portable systems, UAV frames, aerospace equipment, and racing/automotive performance assemblies.
✅ Complex Geometry with High Precision
The component includes:
- Multi-depth pockets for weight optimization
- Rib reinforcement for structural rigidity
- Threaded columns for stable mounting
- Precision bores for bearing or shaft fitting
- Tight-positioning reference surfaces
Such designs require advanced machining strategies and stable cutting control, which JYH provides with optimized CNC programming and tooling.
✅ Excellent Machinability & Efficiency
Magnesium alloys allow faster machining cycles compared to many metals, reducing production lead time while achieving clean finishes and consistent results.
✅ Superior Surface Finish Capability
We support surface finish improvement through:
- Fine CNC finishing passes
- Deburring & polishing
- Bead blasting
- Coating / anodizing / chemical treatments
This ensures the component is suitable for both functional and cosmetic requirements.
✅ Reliable Quality Control
Every magnesium part can be inspected with:
- CMM inspection reports
- Thread gauge inspection
- Flatness & perpendicularity measurement
- Visual surface defect check
- Material certification available upon request
Magnesium Material Options
We support multiple magnesium grades depending on mechanical requirements and application environment:
- AZ31B – Excellent machinability, lightweight, general structural use
- AZ91D – High strength, commonly used for housings and frames
- ZK60 / WE43 (upon request) – Aerospace-grade, high performance
Manufacturing Capabilities
JYH Precision Machining delivers magnesium components through a controlled machining process:
CNC Machining Process Flow
- Raw material cutting
- CNC milling (roughing + finishing)
- Thread tapping and drilling
- Surface deburring / edge breaking
- Polishing or blasting (optional)
- Surface treatment (optional)
- Dimensional inspection
- Protective packing & export shipment
Our process ensures excellent repeatability for both prototypes and batch production.
Technical Specifications
| Specification |
Details |
| Material |
Magnesium Alloy (AZ31 / AZ91 / Custom) |
| Process |
CNC Milling / Multi-axis CNC Machining |
| Tolerance Capability |
±0.01 mm (typical), tighter available upon request |
| Surface Finish |
Ra 0.8–3.2 μm (depending on machining and finishing) |
| Features |
Threaded holes, ribs, pockets, precision bores |
| Production Volume |
Prototype to mass production |
| Inspection |
CMM, caliper check, thread gauge, surface inspection |
| Finishing Options |
Polishing, sandblasting, chemical conversion, coating |
Magnesium vs Aluminum vs Steel Comparison
| Property |
Magnesium Alloy |
Aluminum Alloy |
Steel |
| Density (Weight) |
⭐ Lowest |
Medium |
Highest |
| Strength-to-Weight Ratio |
⭐ Excellent |
Very Good |
Good but heavy |
| Machinability |
⭐ Excellent |
Excellent |
Moderate |
| Corrosion Resistance |
Moderate (needs coating) |
Good |
Good (depends on grade) |
| Thermal Conductivity |
Good |
⭐ Excellent |
Moderate |
| Best For |
UAV, aerospace, lightweight housings |
General engineering |
Heavy-duty load structures |
Conclusion: Magnesium is the best choice when weight reduction is the priority without sacrificing structural integrity.
Surface Treatment & Finishing Options
Because magnesium is reactive compared to aluminum, protective finishing is important for long-term durability. We offer:
- Chemical conversion coating
- Painting / powder coating
- Anodizing / oxidation treatment (special processes)
- Electroless plating
- Passivation and anti-corrosion coating
- Bead blasting + protective sealing
We can recommend the best surface finish depending on your application environment.
Applications
These magnesium precision machined parts are widely used in:
Aerospace & UAV
- Drone structural housings
- Flight control frames
- Motor mounts
- Payload support brackets
Automotive & Motorsports
- Lightweight brackets
- Gearbox housings
- Racing structural assemblies
Robotics & Automation
- Servo motor mounting structures
- Robot joint housings
- Precision alignment frames
Electronics & Industrial Equipment
- Lightweight casings
- Heat-dissipation housings
- Sensor mounting frames
Why Choose JYH Precision Machining?
At JYH, we understand that magnesium machining requires specialized experience, safe machining methods, and proper tooling control. Our advantages include:
- High precision machining expertise
- Strict tolerance control
- Advanced CNC machines for complex geometry
- Stable batch production capability
- Full finishing support
- Fast quotation and production response
- Professional export packaging and global shipping
We focus on long-term reliability and consistent part quality—ensuring your magnesium components meet both performance and cost targets.
Packaging & Shipping
To ensure parts arrive safely without scratches or oxidation, we provide:
- Individual protective wrapping
- Foam/partitioned packaging
- Moisture-proof sealed cartons
- Custom labeling for easy assembly management
We support global shipping via DHL, FedEx, UPS, air freight, and sea freight.
Custom Magnesium Machining Services
JYH Precision Machining provides complete custom solutions based on:
- 2D drawings (PDF/DWG)
- 3D files (STEP/STP/IGES)
- Sample-based reverse engineering
- Prototype development to batch production
We can also support design optimization for reducing weight while maintaining rigidity.
Request a Quote Today
If you are looking for a reliable supplier for high-precision magnesium CNC machined components, JYH Precision Machining is ready to support your project with professional engineering, strict QC, and stable production.
