Name: Custom CNC-Machined Aluminum Support Bracket with Flanged Bore and Precision Mounting Holes
Brand: Shenzhen Jinyihe Technology Co., Ltd.
SKU: Full OEM / ODM Support
Price: 105.00 USD
Availability: InStock

Home > Products > Low Volume CNC Machining >

Custom CNC-Machined Aluminum Support Bracket with Flanged Bore and Precision Mounting Holes

Place of Origin:

China

Brand Name:

JYH

Certification:

ISO 9001,IATF1969

Model Number:

Full OEM / ODM Support

Document:

JYH-Precision-Machining.pdf

Request A Quote

Custom CNC-Machined Aluminum Support Bracket with Flanged Bore and Precision Mounting Holes

Product Details

Product Type:

Custom CNC Machined Support Bracket / Flanged Mounting Component

Material Options:

Aluminum, Stainless Steel, Carbon Steel, Brass, Copper, Titanium, Engineering Plastics

Manufacturing Process:

CNC Milling, CNC Turning, Boring, Drilling, Tapping, Chamfering, Surface Finishing

Finish:

Smooth Machined Finish, Anodizing, Polishing, Bead Blasting, Plating, Powder Coating Available

Structure:

Cylindrical Base With Integrated Flanged Circular Head

Mounting Design:

Multiple Precision Bolt Holes Around The Main Bore

Weight Reduction:

Oval Slot Opening For Lighter Construction And Functional Clearance

Customization:

Size, Material, Tolerance, Surface Finish, Hole Pattern, And Geometry Can Be Customized

Application:

Machinery, Robotics, Automation, Automotive, Aerospace, Industrial Equipment

Production Type:

Prototype, Low-volume Production, And Mass Production Available

Payment & Shipping Terms

Minimum Order Quantity

Price

Competitive

Packaging Details

Custom Packaging

Delivery Time

5-8 days

Supply Ability

Prototype to High-Volume

RELATED PRODUCTS

Contact Now

Product Description

Custom CNC-Machined Aluminum Support Bracket with Flanged Bore and Precision Mounting Holes

Product Overview

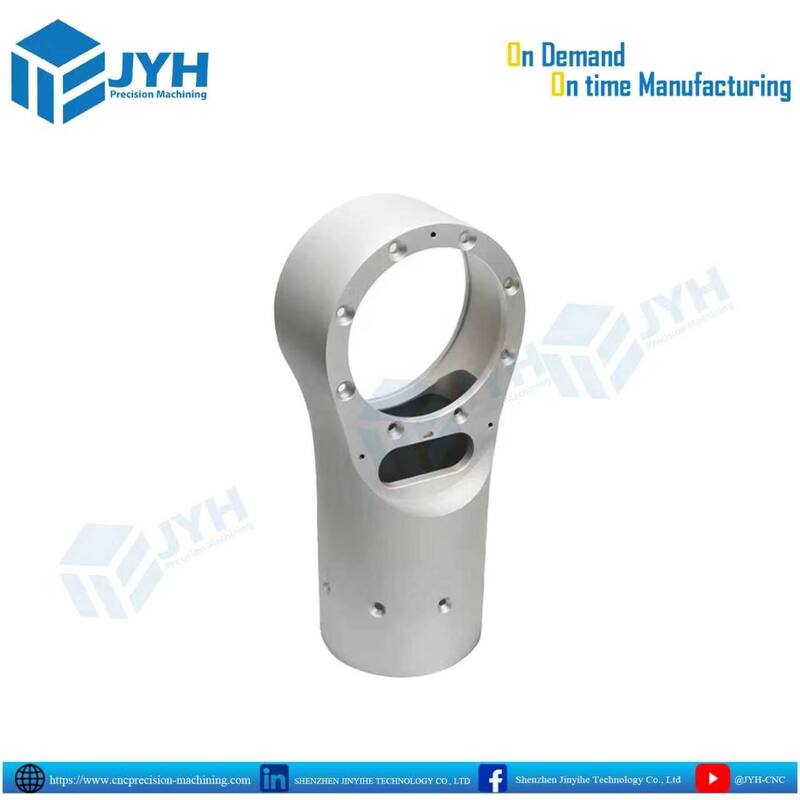

This custom CNC-machined precision metal component is designed for industrial, mechanical, automation, and engineering applications where accuracy, strength, and reliable assembly are essential. The part features a cylindrical lower body, integrated upper support structure, large circular flanged mounting bore, multiple precision-drilled mounting holes, and a lightweight slot opening.

Manufactured using advanced CNC milling, turning, drilling, boring, and finishing processes, this component serves as an ideal support bracket, bearing housing, motor mount, shaft support, robotic arm connector, machinery fixture, or structural mounting part.

The smooth silver finish, clean chamfered edges, and accurate hole positioning demonstrate the part's suitability for demanding applications requiring dimensional precision and surface quality.

Key Features

Feature	Description
Product Type	Custom CNC-machined support bracket / flanged mounting component
Material Options	Aluminum, stainless steel, carbon steel, brass, copper, titanium, and engineering plastics
Manufacturing Process	CNC milling, CNC turning, boring, drilling, tapping, chamfering, surface finishing
Finish	Smooth machined finish, anodizing, polishing, bead blasting, plating, and powder coating available
Structure	Cylindrical base with integrated flanged circular head
Mounting Design	Multiple precision bolt holes around the main bore
Weight Reduction	Oval slot opening for lighter construction and functional clearance
Customization	Size, material, tolerance, surface finish, hole pattern, and geometry can be customized
Application	Machinery, robotics, automation, automotive, aerospace, industrial equipment
Production Type	Prototype, low-volume production, and mass production available

Technical Highlights

Precision Flanged Bore: Large circular bore for accurate fitting of bearings, shafts, sleeves, or rotary components with surrounding flange for connection strength
Multi-Hole Mounting Pattern: Evenly spaced holes around the flange for secure bolting and alignment with mating parts
Integrated Cylindrical Support Body: Provides excellent structural support for vertical mounting, machine frames, and rotating systems
Lightweight Slot Design: Oval cut-out reduces weight while providing clearance for wiring, tools, airflow, or moving parts
Smooth Surface Finish: Machined surface improves appearance, corrosion resistance, and assembly compatibility

Material Options

Material	Best For	Benefits
Aluminum 6061 / 7075	Lightweight machinery, robotics, automation	Lightweight, good strength, corrosion resistance, excellent machinability
Stainless Steel 304 / 316	Harsh environments, food-grade or marine use	High corrosion resistance, strong and durable
Carbon Steel	Heavy-duty industrial equipment	High strength, cost-effective, suitable for load-bearing parts
Brass / Copper	Electrical or decorative applications	Conductive, corrosion-resistant, premium appearance
Titanium	Aerospace, medical, high-performance parts	Lightweight, very strong, excellent corrosion resistance
Engineering Plastic	Lightweight non-metallic parts	Insulation, low friction, corrosion resistance

CNC Machining Capabilities

Service	Available Options
CNC Milling	3-axis, 4-axis, 5-axis machining
CNC Turning	Round parts, cylindrical bodies, shafts, sleeves
Drilling & Tapping	Threaded holes, bolt holes, and locating holes
Boring	High-accuracy internal diameters
Surface Treatment	Anodizing, polishing, sandblasting, plating, and passivation
Tolerance Control	Tight tolerance machining available based on drawings
File Formats	STEP, STP, IGES, IGS, DWG, DXF, PDF, SolidWorks files
Quality Inspection	Dimensional inspection, surface inspection, and tolerance verification

Applications

Industrial machinery
Automation equipment
Robotic systems
Aerospace assemblies
Automotive engineering
Motor and shaft support systems
Packaging machines
Medical equipment
Precision instruments
Custom mechanical fixtures
Heavy-duty equipment
Bearing and housing assemblies

CNC-Machined Part vs. Cast Part Comparison

Factor	CNC Machined Component	Cast Component
Accuracy	High-dimensional accuracy	Lower accuracy without secondary machining
Surface Finish	Smooth and clean machined finish	Rougher surface finish
Customization	Excellent for custom designs and prototypes	Better for large-volume standard shapes
Tooling Cost	Lower for small and medium batches	Higher initial mold/tooling cost
Lead Time	Faster for prototypes and custom parts	Longer due to mold preparation
Strength Consistency	Better material consistency	Possible porosity or casting defects
Best Use	Precision parts, custom engineering components	High-volume basic shapes

Why Choose This CNC-Machined Support Bracket?

This part is ideal for engineers, manufacturers, and OEM companies requiring reliable custom CNC machining services for high-quality mechanical components. Every feature can be produced according to your technical drawing, 3D model, or sample part.

High-precision machining for accurate assembly
Custom size, material, finish, and tolerance options
Strong structure for industrial use
Lightweight design with functional cut-out
Suitable for prototypes and production runs
Professional surface finishing options
Reliable quality control before delivery
Ideal for OEM, ODM, and custom mechanical engineering projects
