Lightweight, High-Strength Magnesium Components for Advanced UAV Applications
In modern UAV design, every gram matters. High-precision magnesium machining offers an excellent solution for manufacturers seeking lightweight, rigid, and dimensionally accurate components for advanced unmanned aerial vehicle systems.
At JYH Precision Machining, we specialize in precision CNC machining of complex magnesium parts, including ultra-thin housings, structural frames, protective covers, equipment enclosures, and lightweight precision components. With extensive experience in mechanical engineering and precision manufacturing, we provide reliable machining solutions for demanding UAV applications where weight reduction, dimensional accuracy, and structural performance are essential.
Our advanced CNC machining capabilities enable the production of complex magnesium components with thin walls, deep cavities, intricate ribs, precision mounting points, and tight dimensional tolerances.
Why Magnesium Is Ideal for UAV Components
Magnesium is one of the lightest structural metals available, making it highly suitable for UAV manufacturing. Compared with many traditional metals, magnesium offers an excellent combination of low density, stiffness, machinability, and vibration-damping performance.
Key Benefits of Magnesium Machining for UAV Parts
- Extremely lightweight for improved overall system efficiency
- High strength-to-weight ratio
- Excellent vibration damping
- Good dimensional stability when properly machined
- Excellent machinability
- Suitable for complex thin-wall structures
- Supports weight reduction in moving and airborne systems
- Compatible with various protective surface treatments
For UAV manufacturers, these advantages can help improve flight efficiency, payload capacity, operating time, and overall system performance.
Precision Machining of Ultra-Thin Magnesium Parts
Ultra-thin magnesium components require a high level of manufacturing expertise. Thin walls and large, complex geometries can easily experience deformation, vibration, distortion, or dimensional changes during machining if the manufacturing process is not properly controlled.
Our engineers carefully analyze each part before production to develop an optimized machining strategy.
Our precision manufacturing process includes:
- Engineering drawing and 3D model review
- Design for Manufacturing (DFM) analysis
- Magnesium material verification
- Workholding and fixture design
- Optimized cutting parameters
- Multi-stage roughing and finishing
- Controlled machining of thin walls and ribs
- Deburring and edge finishing
- Dimensional inspection
- Surface treatment and final quality control
This systematic approach helps minimize distortion and maintain the required dimensional accuracy of ultra-thin magnesium parts.
High-Precision CNC Machining for Complex Magnesium Geometries

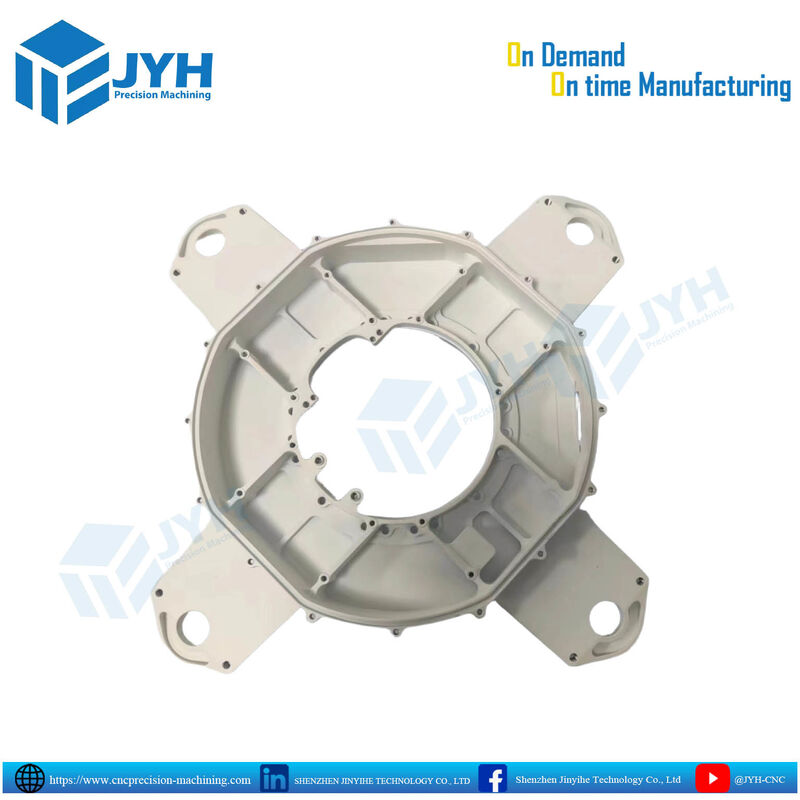

The featured magnesium component demonstrates the complexity possible with precision CNC machining. The part includes:
- Ultra-thin structural walls
- Large internal cavities
- Multiple precision mounting holes
- Complex curved surfaces
- Reinforcing ribs
- Large central openings
- Multiple levels and stepped features
- Lightweight structural geometry
- Complex symmetrical design
Producing this type of component requires advanced CNC equipment, proper fixture design, careful tool selection, and experienced process engineering.
At JYH Precision Machining, our production team can support both prototype development and volume production of precision magnesium components.
Magnesium Machining Capabilities for UAV Components
| Capability |
Description |
| Material |
Magnesium alloys such as AZ91D, AZ31B and other specified grades |
| Machining |
3-axis, 4-axis and 5-axis CNC machining |
| Part Type |
Thin-wall housings, frames, covers, brackets and structural components |
| Complexity |
Deep cavities, ribs, curved surfaces and multi-level features |
| Tolerance |
Precision machining according to drawing and project requirements |
| Inspection |
CMM inspection, dimensional inspection and quality reports |
| Surface Treatment |
PEO coating, painting, powder coating and other specified finishes |
| Production Volume |
Prototypes, small batches and volume production |
Final achievable tolerances depend on the part geometry, material grade, wall thickness, machining process and technical drawing requirements.
Ultra-Thin Magnesium Machining Challenges
Machining thin magnesium parts is significantly more demanding than machining conventional thick components.
1. Thin-Wall Deformation
Ultra-thin walls can deform under cutting forces or clamping pressure. We carefully control machining sequences and fixture pressure to reduce distortion.
2. Vibration Control
Thin structures can generate vibration during machining. Proper tool selection, cutting parameters, toolpath planning, and workholding are essential for achieving stable results.
3. Heat Management
Magnesium requires appropriate machining parameters and process control. Our engineers optimize cutting conditions to support stable machining and consistent quality.
4. Complex Internal Features
Deep cavities and narrow ribs require specialized tooling and carefully planned machining strategies to maintain accuracy without damaging thin structural sections.
5. Surface Protection
Magnesium components may require protective surface treatments depending on the application. We can coordinate suitable finishing processes according to the customer's technical requirements.
Precision Magnesium Components for UAV Applications
Our magnesium machining services can support the production of a wide range of UAV components, including:
- Lightweight structural frames
- Equipment housings
- Electronic enclosures
- Sensor housings
- Camera and imaging equipment brackets
- Motor and actuator housings
- Precision mounting plates
- Internal support structures
- Protective covers
- Lightweight structural assemblies
- Custom prototype components
Whether you require a single prototype or a large production order, our engineering and manufacturing team can provide a complete machining solution from design review to final inspection.
Magnesium vs. Aluminum for Lightweight Precision Components
| Feature |
Magnesium |
Aluminum |
| Weight |
Lower density |
Higher density than magnesium |
| Weight Reduction |
Excellent |
Very good |
| Machinability |
Excellent |
Excellent |
| Vibration Damping |
Very good |
Moderate |
| Structural Applications |
Excellent for lightweight designs |
Excellent for general applications |
| Thin-Wall Potential |
Excellent with optimized processing |
Excellent |
| Surface Protection |
Requires suitable treatment |
Wide range of finishing options |
| Typical Advantage |
Maximum weight reduction |
Versatility and corrosion resistance |
The best material depends on the design requirements, operating environment, strength requirements, weight targets, and surface treatment specifications.
Quality Control for Precision Magnesium Parts
Quality is critical for complex and ultra-thin components. Our quality control process may include:
- Incoming material inspection
- First article inspection
- In-process inspection
- CMM measurement
- Dimensional inspection
- Critical feature verification
- Surface finish inspection
- Visual inspection
- Final quality reports
For complex parts, we can inspect critical dimensions and geometric features according to customer drawings and inspection requirements.
Our goal is to provide parts that meet the required specifications consistently from prototype production through volume manufacturing.
From Prototype to Volume Production
JYH Precision Machining supports the complete product development process.
Prototype Manufacturing
For new UAV designs, we provide rapid CNC prototypes to help customers validate:
- Design functionality
- Assembly compatibility
- Structural geometry
- Weight reduction concepts
- Machining feasibility
Small-Batch Production
Once the design is approved, we can manufacture small production batches with consistent quality and repeatability.
Volume Manufacturing
For larger production requirements, our manufacturing team can optimize the production process, machining sequence, inspection method, and production planning to support consistent delivery.
Why Choose JYH Precision Machining?
Advanced CNC Machining Capability
Our experienced team supports complex multi-axis machining and precision manufacturing of challenging magnesium components.
Engineering Support
We provide technical feedback and DFM analysis to identify potential machining challenges before production begins.
Thin-Wall Machining Experience
Ultra-thin magnesium parts require specialized process control. Our engineers carefully manage fixtures, machining sequences, toolpaths, and cutting parameters.
Complete Manufacturing Support
From CNC machining to finishing, inspection, and delivery, we can support your complete manufacturing requirements.
Prototype and Production Capability
Whether you need one prototype, a small batch, or a large production order, our manufacturing system can support different production volumes.
Request a Quote for Precision Magnesium UAV Parts
If you are developing lightweight UAV equipment and require high-precision magnesium components, JYH Precision Machining can help.
Send us your:
- 3D CAD files
- 2D technical drawings
- Material requirements
- Surface finishing specifications
- Required quantity
- Target delivery date
Our engineering team will review your project and provide a professional quotation with machining recommendations and lead-time information.
Contact JYH Precision Machining today for precision CNC machining of ultra-thin magnesium components for advanced UAV applications.
