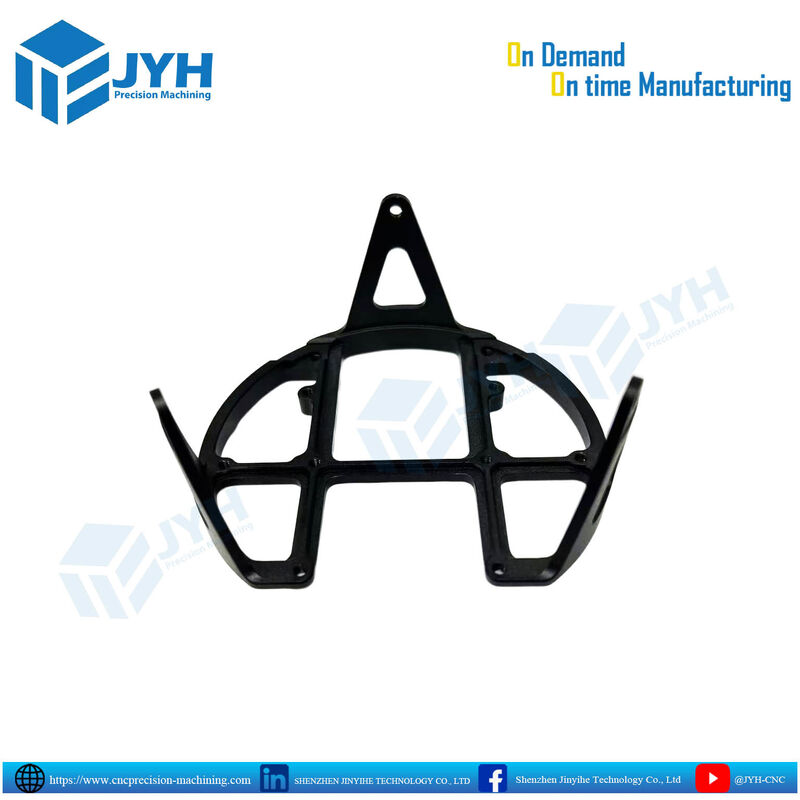

Custom High-Precision CNC Machined Aluminum Structural Mounting Bracket with Matte Black Anodized Finish

Engineered for demanding industrial, aerospace, and automotive applications, our Custom High-Precision CNC Machined Aluminum Structural Bracket delivers exceptional load-bearing strength, strict dimensional accuracy, and optimal weight distribution.

Manufactured using advanced multi-axis CNC milling centers by JYH Precision Machining, this component features complex geometric cutouts designed via CAD/CAM topology optimization. The result is a lightweight yet structurally rigid frame that minimizes stress concentration while maximizing mechanical performance. Finished with a durable black anodized coating, this bracket offers superior corrosion resistance, wear protection, and a sleek industrial aesthetic.

• Topology-Optimized Design: Skeletonized frame structure significantly reduces total assembly weight without compromising tensile or torsional strength.
• Tight Mechanical Tolerances: Machined to precise tolerances down to ±0.005 mm (±0.0002 in), ensuring perfect alignment and seamless fitment in multi-component assemblies.
• Advanced Surface Finish: Type II / Type III Black Anodizing provides excellent dielectric insulation, enhanced surface hardness, and protection against harsh environmental elements.
• Versatile Fastening: Features multi-point threaded holes and countersunk mounting points for secure, vibration-resistant installation.

Depending on your specific application load requirements and weight budgets, we offer custom machining in multiple high-grade aluminum alloys:

• ISO 9001:2015 certified production environment.
• Instant DFM (Design for Manufacturability) analysis for engineer submissions.
• 100% full-dimensional inspection prior to shipping.
• Custom packaging for global door-to-door delivery.
