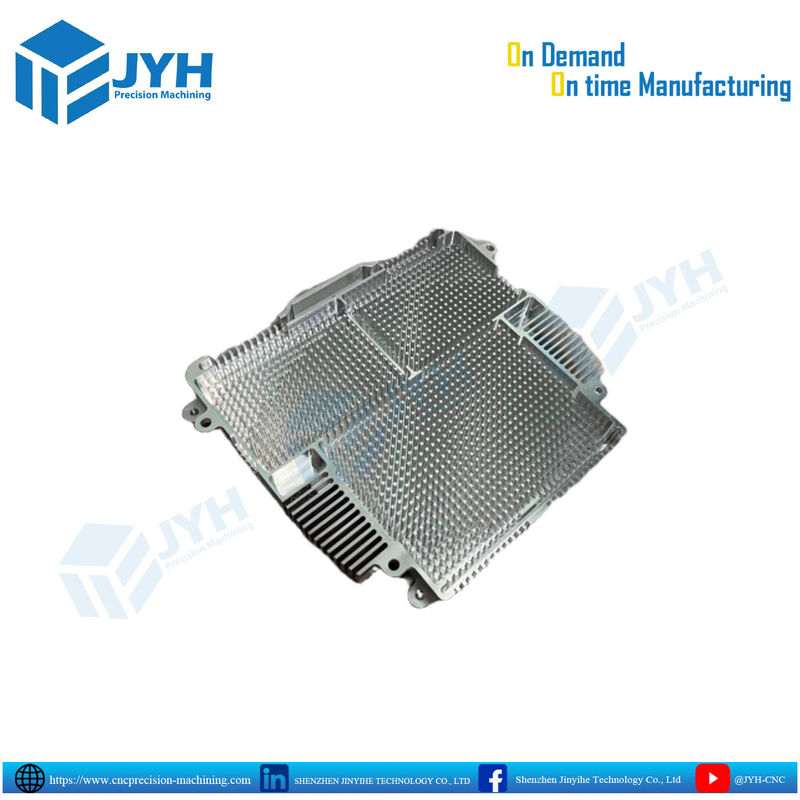

Custom CNC Machined High-Density Pin-Fin Heat Sink with ±0.01 mm Tolerance and Corrosion Resistant ECU Enclosure

• Optimized Pin-Fin Thermal Dissipation: Designed with a high-density cylindrical/square pin-fin array that maximizes surface-area-to-volume ratio, facilitating omnidirectional air/coolant flow for superior thermal management.
• Monolithic CNC Machining Integrity: Precision-milled from solid billet aluminum, ensuring zero thermal interface resistance between the heat-sink base and cooling fins (unlike bonded or staked fin designs).
• Tight Mechanical Tolerances: Machined to strict tolerances down to ± 0.01 mm, ensuring hermetic sealing mating surfaces, precise thread engagement, and exact fitment with PCB mounting points.
• Corrosion & Wear Resistance: Compatible with advanced surface finishes including Type II/III Hard Anodizing, Chromate Conversion Coating (Alodine/SurTec 650), and Nickel Plating.
• Integrated Structural Mounting: Features reinforced mounting ears, precision alignment dowel holes, and perimeter seal channels for IP67/IP68 rated environmental sealing.

At Shenzhen Jinyihe Technology Co., Ltd (JYH Precision Machining), we specialize in high-complexity, tight-tolerance mechanical components for demanding industries worldwide.

• On-Demand & On-Time Manufacturing: Agile production capacity scaling from rapid prototyping (1-5 units) to full OEM mass production.
• Advanced Multi-Axis CNC Fleet: Equipped with state-of-the-art high-speed milling machines capable of cutting intricate 3D pin-fin geometries without material distortion.
• Rigorous Quality Assurance: Full CMM inspection reports, material certifications (ROHS/REACH compliant), and surface roughness validation on every production batch.
