Name: Custom 5-Axis CNC Machined Structural Frame Housing with ±0.01 mm Tolerance and Multi-Lug Mounting Points
Brand: Shenzhen Jinyihe Technology Co., Ltd.
SKU: OEM/ODM
Price: 60.00 USD
Availability: InStock

Home > Products > CNC Precision Machining >

Custom 5-Axis CNC Machined Structural Frame Housing with ±0.01 mm Tolerance and Multi-Lug Mounting Points

5-Axis CNC Milling Structural Frame Housing

±0.01 mm Tolerance CNC Machined Enclosure

Multi-Lug Mounting Points Precision Machined Housing

Place of Origin:

China

Brand Name:

JYH

Certification:

ISO9001,IATF1969

Model Number:

OEM/ODM

Request A Quote

Custom 5-Axis CNC Machined Structural Frame Housing with ±0.01 mm Tolerance and Multi-Lug Mounting Points

Product Details

Manufacturing Process:

5-Axis CNC Milling, Precision Boring, Drilling, Tapping

Available Materials:

Aluminum: AL6061-T6, AL7075-T6, AL5082 Stainless Steel: SS304, SS316L, 17-4PH Alloy Steel: 4140, 4340, Carbon Steel Specialty: Titanium Grade 5, Brass, Copper

Machining Tolerances:

Standard: ±0.01 Mm

Surface Roughness:

As-machined Ra 1.6 µm (Fine Finish Ra 0.8 µm / Ra 0.4 µm Available)

Surface Finishing Options:

Anodizing (Type II / Hardcoat Type III), Bead Blasting, Passivation, Powder Coating, Electroless Nickel Plating

Quality Control:

CMM Inspection, 3D Optical Scanning, Pin Gauge Set, Thread Gauges, Material Test Reports (MTRs)

Production Volume:

Rapid Prototyping (1–10 Pcs), Low-Volume (100–1,000 Pcs), Mass Production (10,000+ Pcs)

Highlight:

5-Axis CNC Milling Structural Frame Housing

±0.01 mm Tolerance CNC Machined Enclosure

Multi-Lug Mounting Points Precision Machined Housing

Payment & Shipping Terms

Minimum Order Quantity

Packaging Details

Custom Packaging

Delivery Time

5-8 days

Supply Ability

Prototype to Mass production

RELATED PRODUCTS

Sandy Xu

Contact Now

Product Description

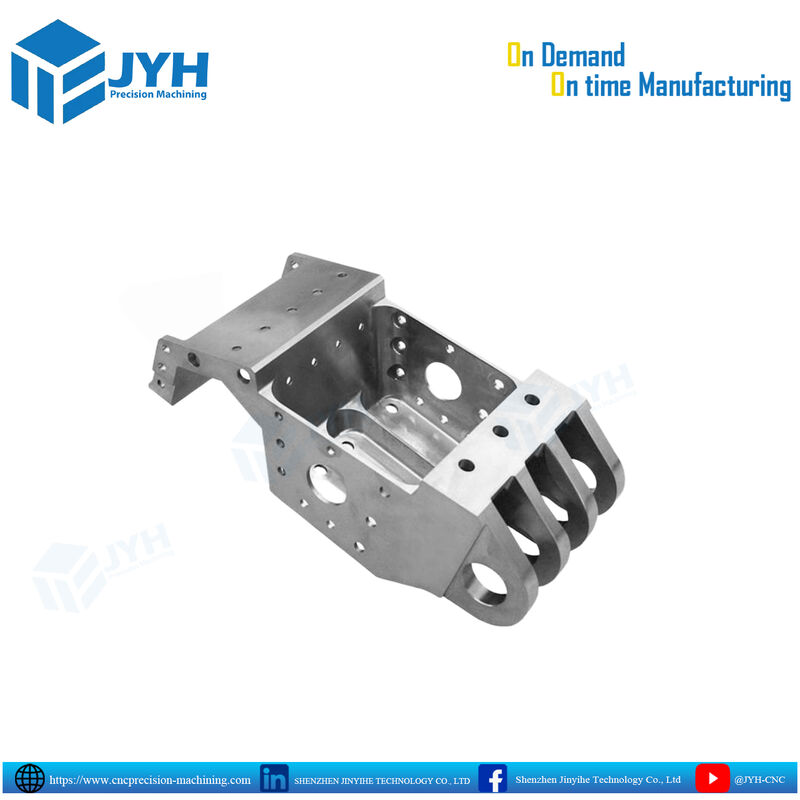

Custom 5-Axis CNC Machined Structural Frame Housing

At JYH Precision Machining, we engineer high-complexity, load-bearing structural housings tailored for high-reliability applications across aerospace, robotics, automotive, and industrial automation sectors.

This custom CNC-machined structural enclosure features multi-axis pocket milling, precise bore alignment, side mounting flanges, and multi-lug mounting points. Manufactured on advanced 5-axis CNC machining centers, this component guarantees tight dimensional tolerances, exceptional coplanarity, and structural integrity under dynamic stresses.

Technical Specifications & Manufacturing Capabilities

Specification Parameter	Details & Capability
Manufacturing Process	5-Axis CNC Milling, Precision Boring, Drilling, Tapping
Available Materials	Aluminum: AL6061-T6, AL7075-T6, AL5082 Stainless Steel: SS304, SS316L, 17-4PH Alloy Steel: 4140, 4340, Carbon Steel Specialty: Titanium Grade 5, Brass, Copper
Machining Tolerances	Standard: ±0.01 mm
Surface Roughness	As-machined Ra 1.6 µm (Fine finish Ra 0.8 µm / Ra 0.4 µm available)
Surface Finishing Options	Anodizing (Type II / Hardcoat Type III), Bead Blasting, Passivation, Powder Coating, Electroless Nickel Plating
Quality Control	CMM Inspection, 3D Optical Scanning, Pin Gauge Set, Thread Gauges, Material Test Reports (MTRs)
Production Volume	Rapid Prototyping (1–10 pcs), Low-Volume (100–1,000 pcs), Mass Production (10,000+ pcs)

Key Engineering Features & Benefits

Complex Geometry via 5-Axis Machining: Single-setup machining eliminates indexing errors, guaranteeing concentricity across all lateral and axial bores.

Optimized Strength-to-Weight Ratio: Deep pocket milling reduces component mass while maintaining rigid structural integrity for heavy load distribution.

Precision Bore Alignment: Inline side-wall bores are finished with micron-level accuracy to support smooth shaft insertion, bearing housing, or hinge placement.

Strict Quality Assurance: Every batch undergoes full CMM dimensional checks, material composition verification, and surface roughness analysis to meet ISO standards.

Comparison: 3-Axis vs. 5-Axis Machining for Complex Housings

Feature / Benefit	Standard 3-Axis Machining	JYH 5-Axis CNC Precision Machining
Setup Operations	Multiple setups required (risk of stacking errors)	Single setup for multi-angle feature machining
Tolerances Across Angles	Moderate (±0.02 mm to ±0.05 mm)	Ultra-Tight (±0.005 mm to ±0.01 mm)
Production Speed	Slower due to fixture re-positioning	Fast lead time with SMED fast-changeover setups
Complex Feature Access	Limited angle capability	Unrestricted access to angled bores and undercuts

Target Applications

Robotics & Automation: Servo motor mounting chassis, end-effector frames, robotic arm joint housings
Aerospace & Defense: Structural bracketry, avionics enclosures, sensor mounting frames
Industrial Equipment: Gearbox housings, hydraulic pump mounts, heavy-duty guide brackets
Automotive & EV: Powertrain sub-frames, suspension mounting blocks, high-stress testing mounts

Why Choose JYH Precision Machining?

On-Demand & On-Time Manufacturing: Agile scheduling powered by lean manufacturing practices (SMED) to minimize lead times
DFM Support: Free Design for Manufacturability feedback from senior mechanical engineers prior to production
End-to-End Solutions: Raw material sourcing, precision machining, post-treatment, assembly, and CMM inspection reports provided with every order

Ready to bring your engineering designs to life?
Contact our engineering team today with your 2D/3D CAD files (STEP, IGES, DWG) for a fast quote and complimentary DFM analysis!
