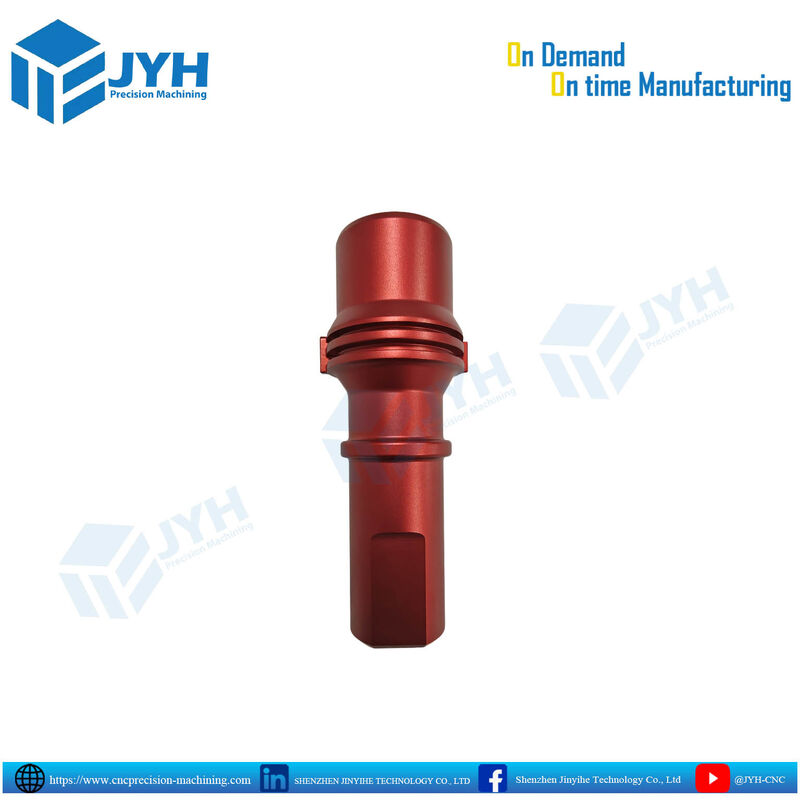

Name: Custom Precision CNC Machined Aluminum Stepped Shaft with Red Anodized Finish and ±0.005 mm Tolerance
Brand: Shenzhen Jinyihe Technology Co., Ltd.
SKU: OEM/ODM
Price: 60.00 USD
Availability: InStock

Home > Products > CNC Precision Machining >

Custom Precision CNC Machined Aluminum Stepped Shaft with Red Anodized Finish and ±0.005 mm Tolerance

Red Anodized Finish Stepped Shaft

±0.005 mm Tolerance CNC Machined Component

Aircraft-Grade Aluminum Precision Shaft

Place of Origin:

China

Brand Name:

JYH

Certification:

ISO9001,IATF1969

Model Number:

OEM/ODM

Request A Quote

Custom Precision CNC Machined Aluminum Stepped Shaft with Red Anodized Finish and ±0.005 mm Tolerance

Product Details

Machining Tolerance:

±0.01 Mm (tighter Tolerances Available)

Processes:

Machining

Min Workpiece Size:

1mm X 1mm X 1mm

Approval:

ISO9001, TS16949

Applied:

Industrial Equipment

Application:

Automotive, Aerospace, Medical, Etc.

Quality Control:

ISO 9001 Certified, 100% Inspection

Tolerance:

±0.001 Mm

Heat Treatment:

Available Upon Request

Cnc Machining:

CNC Machining Parts

Cnc Machines:

3-axis, 4-axis, 5-axis CNC Machines

Size:

Customized Size\Client's Drawings

Highlight:

Red Anodized Finish Stepped Shaft

±0.005 mm Tolerance CNC Machined Component

Aircraft-Grade Aluminum Precision Shaft

Payment & Shipping Terms

Minimum Order Quantity

Packaging Details

Custom Packaging

Delivery Time

5-8 days

Payment Terms

L/C,D/P,D/A,T/T

Supply Ability

Prototype to Mass production

RELATED PRODUCTS

Sandy Xu

Contact Now

Product Description

Custom Precision CNC Machined Aluminum Stepped Shaft with Red Anodized Finish

Engineered for high-performance mechanical assemblies, this high-precision aluminum component is manufactured via multi-axis CNC turning and milling. Featuring complex turned contours, stepped cylindrical shoulders, dynamic sealing grooves, and precision-machined wrench flats, it is built to deliver exacting dimensional accuracy and seamless integration into custom mechanical drives, fluid systems, or robotic actuators.

Fabricated from aircraft-grade aluminum alloy (EN AW-6082-T6 / 6061-T6), the part undergoes a precision electrolytic Type II anodizing process. The rich red anodized coating creates a corrosion-resistant aluminum oxide layer that significantly enhances surface hardness, wear resistance, and visual identification while maintaining strict micrometer-level mechanical tolerances.

Technical Specifications

Material Options	High-Grade Aluminum (EN AW-6082-T6 / 6061-T6 / 7075-T6)
Machining Process	Multi-Tasking CNC Turning & Milling (Swiss Lathe / Live Tooling)
Surface Finish	MIL-A-8625 Type II Anodized (Red)
Dimensional Tolerance	Down to ±0.005 mm (±0.0002 in)
Design Features	Retaining Ring Grooves, Stepped Shaft Diameters, Wrench Flats
Target Industries	Automotive, Robotics, Automation Equipment, Pneumatics & Fluid Control

Anodized Finish & Processing Advantages

Enhanced Surface Protection: Electrochemical anodizing yields a protective ceramic oxide layer that shields against surface wear, abrasion, and harsh operating environments.
Controlled Coating Thickness: Deposition layers (typically 10 to 25 μm) preserve tight tolerances on precision bearing journals and seal seats without requiring secondary grinding.
High Chemical & Thermal Stability: Resists oxidation, oil contamination, and elevated working temperatures without peeling or flaking.
Vibrant Color Identification: Vibrant red dye provides easy component differentiation, visual coding, and a sleek cosmetic finish for high-end OEM products.
