Name: CNC Machined Structural Bracket with 0.01mm Accuracy Lightweight Ribbed Structure and Customizable Dimensions
Brand: Shenzhen Jinyihe Technology Co., Ltd.
SKU: OEM/ODM
Price: 60.00 USD
Availability: InStock

Home > Products > CNC Precision Machining >

CNC Machined Structural Bracket with 0.01mm Accuracy Lightweight Ribbed Structure and Customizable Dimensions

0.01mm Accuracy Structural Bracket

Lightweight Ribbed Structure CNC Machined Bracket

Customizable Dimensions Precision Bracket

Place of Origin:

China

Brand Name:

JYH

Certification:

ISO9001,IATF1969

Model Number:

OEM/ODM

Request A Quote

CNC Machined Structural Bracket with 0.01mm Accuracy Lightweight Ribbed Structure and Customizable Dimensions

Product Details

Service:

Cutomized For Metal CNC Prototype

Materials:

Aluminium 6061

Application:

Automotive

Drawing Format:

PDF/X-T/IGS/STP And So On

Productname:

CNC Precision Machining

Feature:

High Precision

Surfacefinish:

Ra 0.8 µm

Accuracy:

0.01mm

Cnc Machines:

3-axis, 4-axis, 5-axis CNC Machines

Heattreatment:

Available Upon Request

Applied:

Industrial Equipment

Tolerance:

±0.01 Mm

Highlight:

0.01mm Accuracy Structural Bracket

Lightweight Ribbed Structure CNC Machined Bracket

Customizable Dimensions Precision Bracket

Payment & Shipping Terms

Minimum Order Quantity

Packaging Details

Custom Packaging

Delivery Time

5-8 days

Payment Terms

D/A,L/C,D/P,T/T

Supply Ability

Prototype to Mass production

RELATED PRODUCTS

Sandy Xu

Contact Now

Product Description

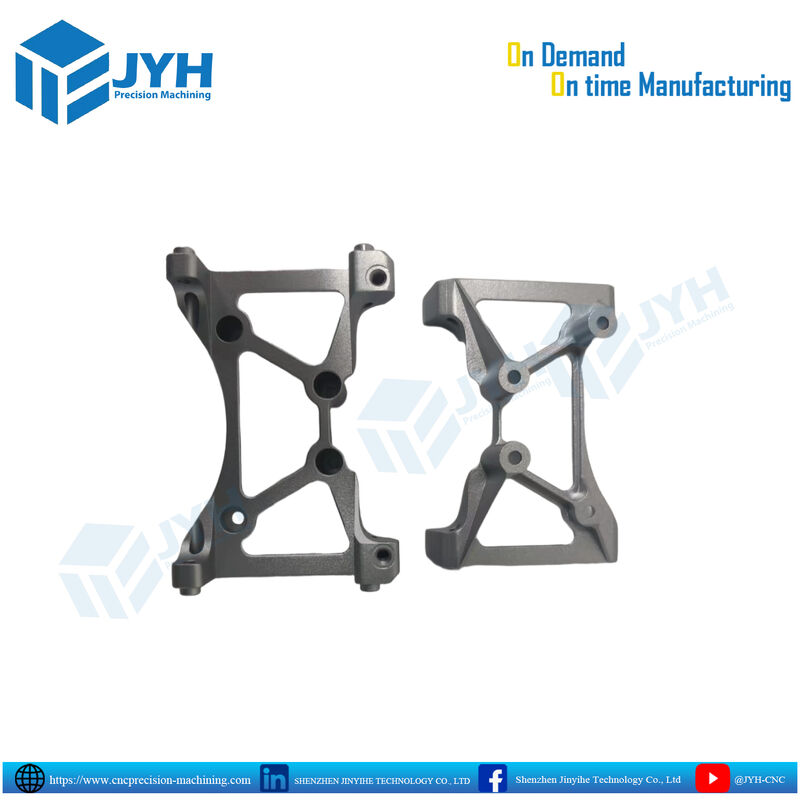

CNC Machined Structural Bracket

This custom CNC-machined structural bracket is designed with a lightweight ribbed structure, precision mounting holes, and reinforced support areas. The optimized geometry helps reduce unnecessary weight while maintaining structural rigidity and dimensional accuracy.

JYH Precision Machining manufactures custom brackets according to customer 2D drawings and 3D CAD models, supporting prototype, low-volume, and production orders.

Key Features

Feature	Specification
Manufacturing	CNC Milling / 5-Axis CNC
Materials	Aluminum, Magnesium, Steel, Titanium, etc.
Design	Ribbed, pocketed lightweight structure
Tolerance	According to drawing
Surface Finish	Anodizing, Hard Anodizing, Blasting, Polishing, etc.
Inspection	Dimensional Inspection / CMM
Production	Prototype to Mass Production

Applications

Suitable for robotics, UAV/drone systems, automotive, industrial machinery, electronics, automation equipment, and other precision mechanical assemblies.

Custom CNC Bracket Manufacturing

We can customize the bracket's dimensions, hole locations, threads, material, tolerances, surface finish, and marking according to your requirements.

Send us your 3D CAD file and 2D drawing for a fast quotation and DFM review.

JYH Precision Machining — From Prototype to Production. Precision Parts, Delivered Fast.
