Name: Custom CNC Machined Aluminum Parts with Lightweight Lattice Structure and High Dimensional Accuracy for Curved Geometry Applications
Brand: Shenzhen Jinyihe Technology Co., Ltd.
SKU: OEM/ODM
Price: 60.00 USD
Availability: InStock

Home > Products > CNC Precision Machining >

Custom CNC Machined Aluminum Parts with Lightweight Lattice Structure and High Dimensional Accuracy for Curved Geometry Applications

Lightweight Lattice Structure CNC Machined Aluminum Parts

High Dimensional Accuracy Precision Machined Components

Custom Curved Geometry Structural Aluminum Parts

Brand Name:

JYH

Certification:

ISO9001,IATF1969

Model Number:

OEM/ODM

Request A Quote

Custom CNC Machined Aluminum Parts with Lightweight Lattice Structure and High Dimensional Accuracy for Curved Geometry Applications

Product Details

Shape:

According To Drawing Of Customer

Weight:

0.2~3 Kg

Work Table:

1200*2000mm

Voltage:

380v

Nuts And Bolts:

For Hydrautics

Accuracy:

0.01mm

Optical Fiber:

Color

Maxworkpiecesize:

500mm X 500mm X 300mm

Application:

Automotive

Equipment:

Nest Pallet

Productname:

CNC Precision Machining

Packing:

As Customers Requirement

Stainless Steel:

Finished With Plating

Inspection:

Callipers , CMM , Etc.

High Light:

CNC Precision Machining,cnc Machining

Highlight:

Lightweight Lattice Structure CNC Machined Aluminum Parts

High Dimensional Accuracy Precision Machined Components

Custom Curved Geometry Structural Aluminum Parts

Payment & Shipping Terms

Minimum Order Quantity

Packaging Details

Custom Packaging

Delivery Time

5-8 days

Payment Terms

L/C,D/A,D/P,T/T

Supply Ability

Prototype to Mass production

RELATED PRODUCTS

Sandy Xu

Contact Now

Product Description

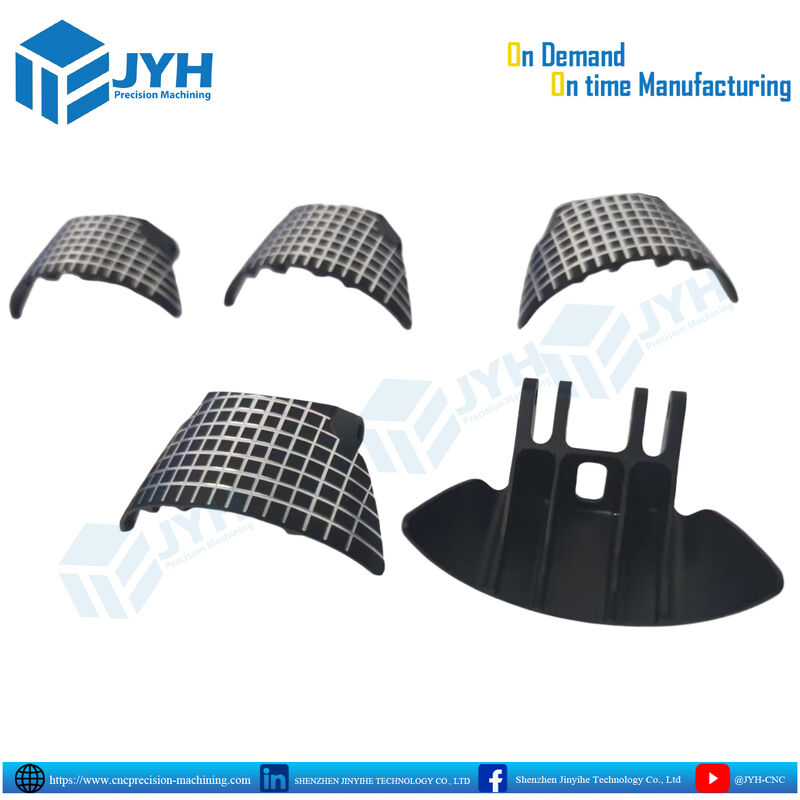

CNC Machined Aluminum Lattice & Curved Structural Parts

These custom CNC-machined aluminum components feature a lightweight curved geometry with a precision-machined lattice pattern, designed for applications where low weight, rigidity, and accurate fit are important. JYH Precision Machining manufactures complex aluminum parts directly from customer 3D CAD models and engineering drawings, supporting prototypes, low-volume production, and repeat manufacturing.

Key Features

Precision CNC-machined aluminum construction
Complex curved and 3D geometry
Lightweight lattice/grid structure
Thin-wall machining capability
Smooth contoured surfaces
High dimensional accuracy
Custom dimensions and geometry
Suitable for anodizing and other surface finishes

Available Aluminum Materials

Material	Main Characteristics	Typical Applications
6061-T6	Excellent machinability, strength, and corrosion resistance	General engineering, robotics, equipment
7075-T6	High strength-to-weight ratio	UAV, aerospace, high-performance components
6082-T6	Good strength and machinability	Structural and industrial components
2024-T3	High strength and fatigue performance	Aerospace and lightweight structures

Manufacturing & Finishing

Manufacturing: 3-Axis / 4-Axis / 5-Axis CNC Machining

Materials: Aluminum 6061-T6, 7075-T6, 6082-T6, 2024-T3

Finishes: Anodizing, hard anodizing, bead blasting, polishing, powder coating, and more

Inspection: Dimensional inspection and CMM inspection available

Production: Prototype, low volume, and mass production

Applications

UAV and drone components
Aerospace structures
Robotics
Automotive components
Industrial equipment
Lightweight mechanical assemblies
Research and development prototypes

Custom CNC Aluminum Machining

JYH can manufacture complex curved, lattice, thin-wall, and lightweight aluminum components according to your specifications. Send us your 3D CAD file and 2D drawing for quotation and DFM review.

From Prototype to Production. Precision Parts, Delivered Fast.
