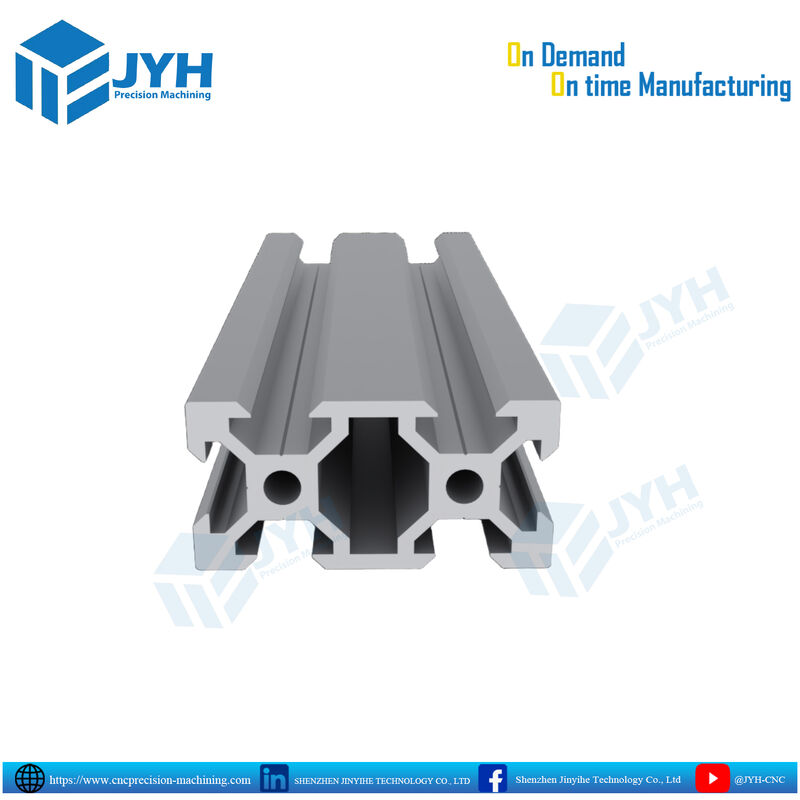

Custom Aluminum Extrusion Parts and Precision Aluminum Profiles with CNC Machined Components

At JYH CNC Precision Machining Company, we provide custom aluminum extrusion parts manufactured to meet a wide range of industrial, mechanical, and structural requirements. Aluminum extrusion is a versatile manufacturing process that forms aluminum alloy into specific cross-sectional profiles by forcing heated material through a specially designed die.

This process is ideal for producing custom aluminum profiles, structural frames, mounting rails, heat sinks, equipment housings, and other components with consistent cross-sectional geometry. Extruded profiles can also undergo secondary CNC machining, drilling, tapping, cutting, and surface finishing to achieve the dimensions and features required for final assembly.

From customized prototypes to high-volume production, we support customers with integrated manufacturing solutions based on their drawings, CAD models, and technical specifications.

Material availability, dimensional tolerances, profile size, and production quantities depend on the specific design and extrusion tooling requirements.

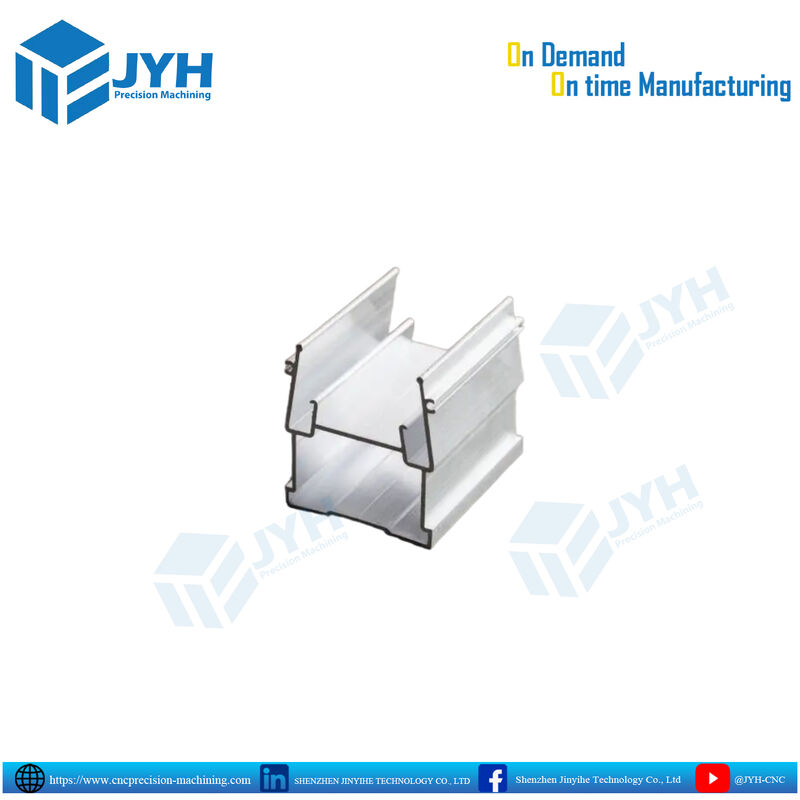

We manufacture aluminum extrusion profiles according to customer-specific cross-sectional designs. Customized profiles can integrate mounting grooves, channels, ribs, slots, and other features to suit the intended application.

Depending on the profile geometry and tooling feasibility, we can support solid profiles, hollow profiles, and complex cross-sections for structural, functional, and decorative applications.

Extruded profiles can be further processed to achieve precise dimensions and functional features. Secondary machining services include:

• CNC milling
• Precision drilling
• Thread tapping
• Slot and groove machining
• Hole pattern machining
• End-face machining
• Cutting to specified lengths
• Custom mounting features

Combining extrusion with CNC machining helps produce components that are ready for installation or assembly.

Choosing the right aluminum alloy is important for achieving the required balance of strength, corrosion resistance, machinability, and surface quality.

A versatile alloy offering good mechanical strength, corrosion resistance, and machinability. It is commonly used for structural components, machine parts, and precision-machined profiles.

Known for its good extrusion characteristics and surface finish, 6063 is widely used for architectural profiles, equipment frames, enclosures, and decorative components.

A structural alloy offering good strength and corrosion resistance, suitable for load-bearing components and industrial applications where its properties meet the design requirements.

The final alloy selection should consider the profile geometry, required mechanical properties, finishing process, and operating environment.

Aluminum extrusion parts can be supplied with different surface treatments to improve appearance, durability, and corrosion protection.

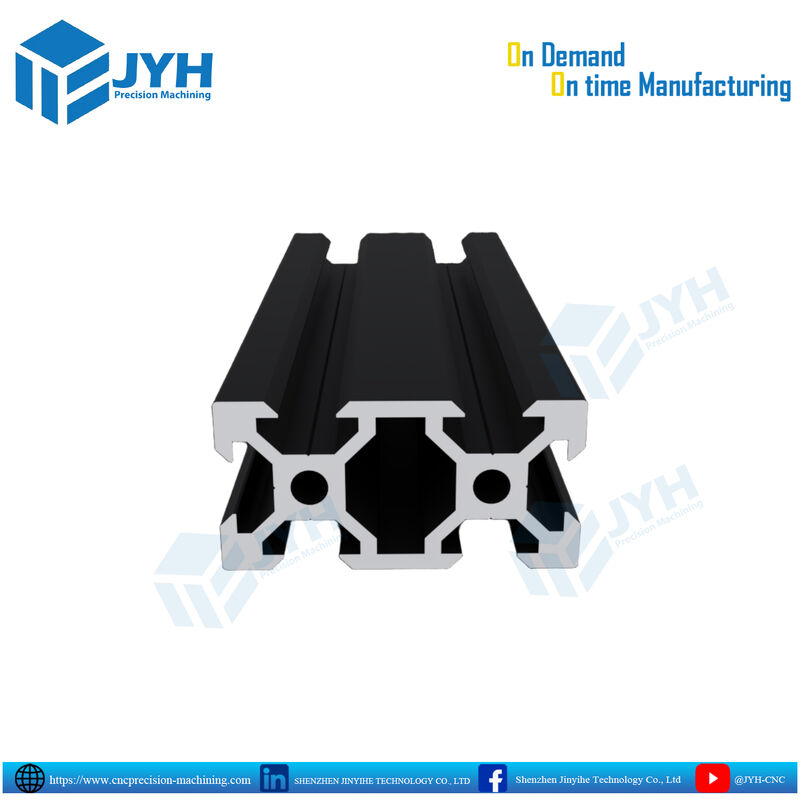

• Anodizing: Creates a protective oxide layer and supports natural, black, and other available colors.
• Powder Coating: Provides a durable colored finish for industrial and decorative applications.
• Sandblasting: Creates a more uniform surface texture before finishing.
• Brushing: Produces a directional surface texture.
• Polishing: Improves surface smoothness and appearance.
• Custom Finishing: Available according to project requirements.

Surface finishing is selected based on the intended application, dimensional requirements, and customer specifications.

Our custom aluminum extrusion manufacturing services can support a wide range of components, including:

• Aluminum structural profiles
• Industrial equipment frames
• Mounting rails and brackets
• Heat sink profiles
• Electronic equipment housings
• Aluminum channels and rails
• Machine guide profiles
• Support structures
• Enclosure frames
• Custom mechanical profiles
• CNC-machined extrusion components

Custom aluminum extrusion parts are widely used in:

• Industrial automation
• Robotics
• Electronics and electrical equipment
• Telecommunications
• LED lighting systems
• Thermal management systems
• Machinery manufacturing
• Transportation equipment
• Energy equipment
• Industrial workstations
• Structural frames and enclosures

Extrusion is well suited to producing long profiles with a consistent cross-section, making it useful for structural and assembly applications.

The process can reduce the need to machine a complex profile entirely from solid material, depending on the design.

Aluminum offers a favorable strength-to-weight ratio for many structural and mechanical applications.

Custom profiles can incorporate grooves, channels, ribs, and mounting features to simplify installation and reduce the number of separate components.

Once the extrusion tooling and manufacturing parameters are established, the process is suitable for repeat orders and higher production volumes.

We inspect aluminum extrusion parts according to customer drawings and agreed technical requirements. Depending on the project, quality checks may include:

• Cross-sectional dimensions
• Overall length
• Hole positions and diameters
• Straightness and flatness
• Critical machined features
• Surface appearance and finish
• Material documentation
• Dimensional inspection reports

For components requiring secondary CNC machining, critical dimensions can be checked after machining to verify conformity with the final drawing.

JYH offers an integrated approach to custom aluminum component manufacturing, combining aluminum extrusion with secondary machining, surface finishing, and quality inspection.

Our services help customers coordinate multiple manufacturing requirements through one supplier, from the initial profile design to the finished component.

We support customized projects requiring aluminum extrusion, CNC machining, anodizing, powder coating, and assembly, with production solutions tailored to the component design and order quantity.
