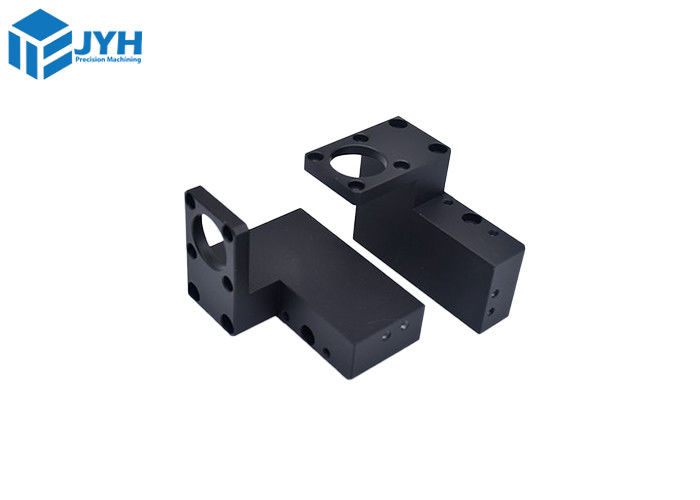

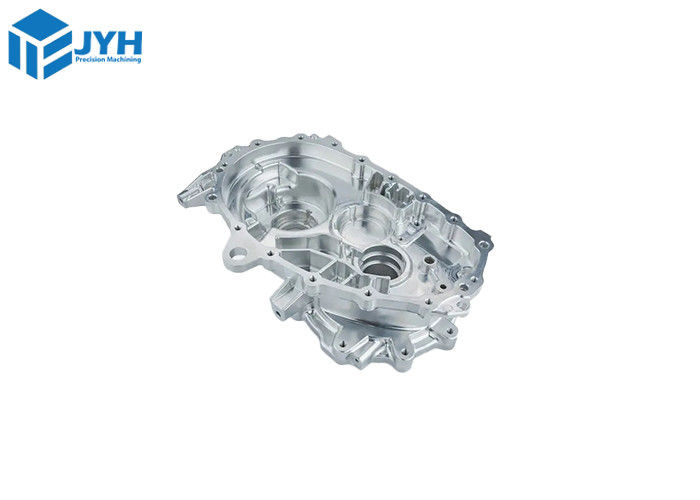

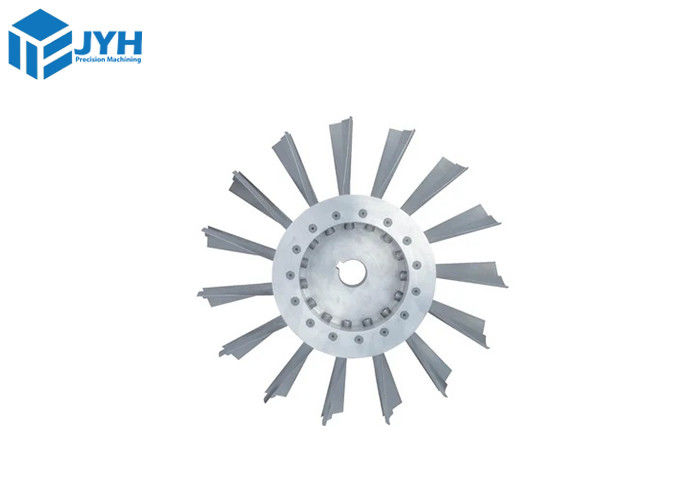

OEM 5 Axis Custom Machined Metal Parts Precision Tolerance For Complex Structure
| Place of Origin | China |
|---|---|
| Brand Name | JYH Technology |
| Certification | ISO9001 Certificate of quality system/16949 |
| Model Number | metal prototype |
| Minimum Order Quantity | 1 Piece |
| Price | USD 10-200 pieces |
| Packaging Details | For small parcels less than 25KG, we generally adopt paper cartons; For goods over 25KG, we will use custom wooden cases. |
| Delivery Time | 2-5 works day |
| Payment Terms | T/T/Paypal, Western Union |
| Supply Ability | 1000 pieces one week |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | Custom Machined Metal Parts | Material | AL 6061 Serie/Stainless Steel/Magnesium Alloy/titanium Alloy/copper/aluminum Bronze |
|---|---|---|---|
| Tolerance | +/-0.001 Mm To +/-0.005mm | Process Way | CNC 5 Axis Machining/Lathe/milling/Turning |
| Surface Finish | Electroplating/Passivation/Blackening And So On | Lead Time | 1-5 Days |
| Express Way | DHL/FEDEX/UPS | ||
| High Light | OEM Custom Machined Metal Parts,5 Axis Custom Machined Metal Parts |
||
Product Description
OEM 5 Axis Custom Machined Metal Parts Precision Tolerance For Complex Structure
Precision CNC Machining for Functional Prototypes and End-use Parts
Custom 5 Axis Machining metal parts with high precision +/-0.001mm tolerance for some parts
with more complex structure.At JYH technology, we offer high precision cnc machining tolerance to meets
our customers’ needs. Our standard tolerances for CNC machining metals are compliant with DIN-2768-1-fine,
while for plastics parts it is DIN-2768-1-medium, a standard tolerance for a CNC machining service is typically ± 0.005”.
The tightest machining tolerances possible are in the range of ±0.001”.
Advantages of Precision Machining
Machining complexity often brings with it high-level requirements. To ensure that your parts meet your needs,
we include design feedback from applications engineers. You’ll also get:
- Tolerances as tight as +/-0.002 in. (0.0508mm)
- Tolerances adhere to ISO 2768
- Fulfillment of quality requirements (including CoC, FAI, ISO 9001, and AS9100)
- Fully machined features (no material left behind)
Try JYH technology Now!All information are secure and confidential by us.
Tolerance details
| Type |
Tolerance |
| Linear dimension |
+/- 0.015 mm +/- 0.002 inch |
| Hole diameters (not reamed) | +/- 0.015 mm +/- 0.002 inch |
| Shaft diameters | +/- 0.015 mm +/- 0.002 inch |
| Part size's limit | 850 * 650 *550 mm 39.0 * 23.5 * 23.5 inch |
Parts Certifications
ISO 9001:215 | AS9100D | ITAR Registered
Precision Machined Part Size Standards
| Classification | Minimum Size (mm) | Maximum Size (mm) | Common Applications |
|---|---|---|---|
| Ultra-Precision Components | 0.1 | 1 | Watch components, micro devices |
| Micro Machined Parts | 1.1 | 10 | Medical devices, small electronics |
| Small Machined Parts | 10.1 | 50 | Aerospace, automotive sensors |
| Medium Machined Parts | 50.1 | 200 | Automotive, defense, industrial tools |
| Large Machined Parts | 200.1 | 1000+ | Heavy machinery, construction |
Quality Inspection
- In addition to our stringent in-process controls, all components must pass a thorough final inspection.
we have a coordinate measuring machine, salt spray testing machines, profile projectors and other precision
measuring devices, etc.
- Customers' CAD drawings can be directly imported in the coordinate measuring machines (CMM) for a
direct comparison to the dimensions that are taken from the physical part.
- All testing is conducted in a 20 degree Celsius climate-controlled inspection room and the CMM is calibrated to
GB/T 16857.2-2006 (ISO10360-2:2001) standards. All components and sub-assemblies are 100% inspected,
identified with a logo if required and a final inspection is generated pertaining to all the critical dimensions.
Our payment method
Our shipping method
Our workshop
JYH technology, Your Professional CNC Machining Low Volume Manufacturing Services Partner!
