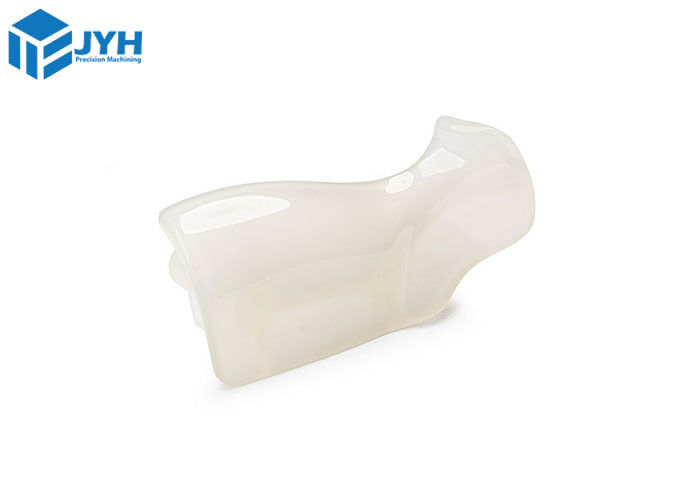

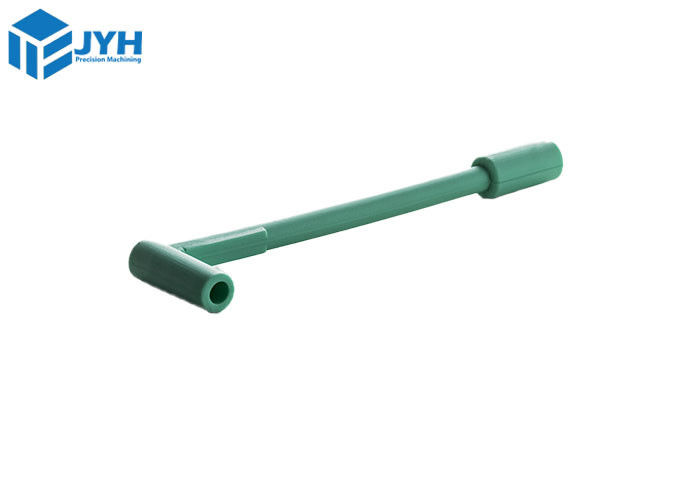

Urethane Vacuum Mold Casting Polished Glossy paint Surface
| Place of Origin | China |
|---|---|
| Brand Name | Vacuum Casting Service For Rapid Prototyping |
| Certification | ISO9001 Certificate of quality system/16949 |
| Model Number | Customized |
| Minimum Order Quantity | 10 piece |
| Price | USD 5-100 pieces,negotiable |
| Packaging Details | 1.Use boxes made of corrugated cardboard,Wrap with bubbles facing inward or Custom wooden cases larger than 25KG. 2.Custom blister box. |
| Delivery Time | 9-15 works day |
| Payment Terms | T/T, Western Union,Paypal |
| Supply Ability | 100000 piecs one weeks |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Surface Finish | Polished , Transparent , Glossy Paint , Silk-screen Printing , Pad Printing , Soft-touch | Product | Medical Parts, Drone Parts,Robot Parts |
|---|---|---|---|
| Material | ABS , PC (Polycarbonate) , PMMA (Acrylic) And Can Be Customized | Keyword | Vacuum Casting Rapid Prototype And Silicone Rapid Prototyping |
| Mould Life | 100-200 Shots | Color | Any Color,As Your Required |
| Highlight | Urethane Vacuum Mold Casting,Vacuum Mold Casting Polished,cast polyurethane parts Glossy Paint |
||
Product Description
Vacuum Casting For Plastic Rapid Prototyping And Urethane Casting Parts
Urethane Casting :
Urethane Casting is a specialized method used to create accurate replicas of master patterns.
This involves using affordable silicone molds and liquid casting resins. The resulting copies exhibit similar quality
to plastic injection molded parts, but they are much quicker and cost-effective to produce.
Reliable vacuum casting service for prototypes and low-volume production parts at competitive pricing. Highly detailed elastomer parts with excellent quality and faster turnarounds.
The advantages of Urethane Casting:
- Suitable for Small Production Runs
- Achieves Consistent Self-Colored Parts
- Minimal InitiaInvestment Required
- Delivers Production-Quality Components
- Wide Array of Material Options
- Enables Creation of Rubber-Like Parts and Over molds
Urethane Casting Tolerance Guidelines:
| Part size / dimension | Tolerance | Angularity |
| < 11’’ (300 mm) | ± .005’’ (0.125 mm) | ± 0.5° |
| < 24’’ (600 mm) | ± .010’’ (0.250 mm) | ± 1.0° |
| < 36’’ (900 mm) | ± 1/16’’ (0.400 mm) |
± 1.0° |
Size limitations for Urethane Casting:
|
Requirement
|
Specifications
|
|
Maximum part dimensions
|
2000 x 800 x 850 mm
|
|
Minimum wall thickness
|
0.65 mm (recommended wall thickness 1.5 mm)
|
|
Duplication quantities
|
20-30 copies (depend complexity of the mold and casting materials)
|
Vacuum Casting Process
Creating polyurethane vacuum cast parts involves three main steps: master pattern creation,
mold fabrication, and part casting.
1. Master Pattern Creation:
Crafting patterns from your CAD designs is the initial step. These 3D solids are made through CNC machining or 3D plastic printing like SLA/SLS. You can provide patterns or let us create them. Patterns should endure up to 40°C heat.

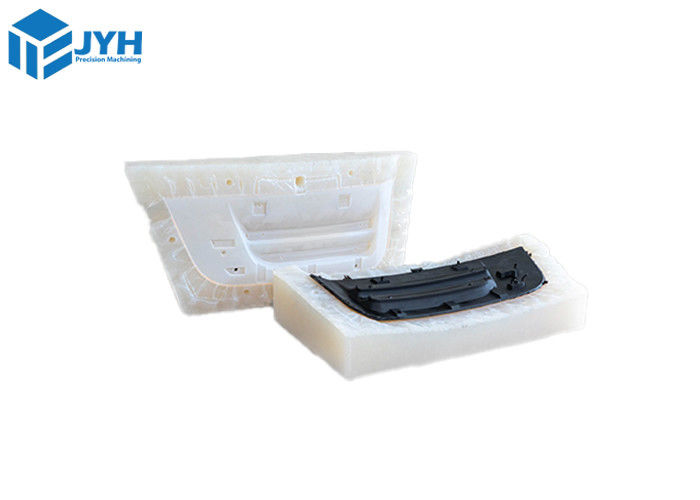

2. Mold Fabrication:
Liquid silicone forms the casting molds. It's poured around the master pattern within a casting box, cured in an oven for 16 hours. Afterward, the mold is opened, and the master pattern is removed, yielding a negative cavity mirroring the original. Our silicone molds typically yield around 20 copies of the master pattern.
Why Choose JYH- precision for Urethane Casting Parts Services?
In the realm of vacuum casting, a multitude of manufacturers are available for selection. Opting for the correct one holds
paramount importance to achieve your anticipated outcomes. Consider the following factors that make JYH Precision machining an ideal
choice for your vacuum casting requirements.
At JYH Precision, we believe that quality and speed should go hand in hand. Our approach combines extensive industry expertise with cutting-edge tools and technologies, enabling us to provide top-notch vacuum casting services within tight timelines (usually 5 to 7 days). |
Vacuum casting is just a part of our capabilities. we provide an array of supplementary finishing services that contribute to bringing your product to its full potential. These services encompass machining, media blasting, printing, painting, and beyond. |
We recognize that your requirements are distinct, and unnecessary expenses are undesirable. Hence, we refrain from imposing minimum order volumes or dollar values for our vacuum casting services. we ensure swift and precise quotes within 1 hours or less for almost all projects. |
Vacuum casting is frequently utilized for prototyping, we understand that many of the products . To facilitate their refinement, we extend comprehensive design for manufacturing assistance to our clients.
|
Vacuum Casting Finishing:
|
Glossy paint |
High-gloss paint is renowned for its exceptional shine and ability to reflect light, creating a surface finish that imparts a nearly mirror-like appearance to objects. |
|
Transparent |
This method allows for achieving exceptional transparency and purity in high-purity plastic materials used for components, combined with a polishing process. |
|
Soft-touch |
This technique involves the application of a soft-touch coating surface finish to elements like rubberized buttons and coatings. Primarily utilized to enhance the ergonomic comfort of the produce. |
|
Painting
|
Simple process that apply a color on your parts, we have a large range of colors and style. |
|
Laser Etching
|
Utilize laser beams to modify object surface characteristics and personalize components according to your preferences. |
|
Silk Screen printing |
Screen printing serves as a versatile printing method for ink transfer onto surfaces. Operators skillfully employ tools such as paper and a squeegee to execute this process. Additionally, stencils can be utilized strategically to block ink transfer to specific areas. This technique is particularly valuable for creating intricate designs with multiple colors. |
|
Tampography |
Pad Printing is an innovative technique for imprinting a 2-D image onto a 3-D object. This method involves utilizing an etched plate, often referred to as a cliche, in conjunction with a specialized pad to seamlessly transfer the desired image. |
Vacuum Casting Materials
|
Acrylic-Like |
Acrylic-Like is a rigid and uncomplicated polyurethane plastic designed to mimic acrylic (PMMA). It's used to craft components that need some level of translucency, such as light panels, safety screens, and automotive taillights.
|
|
ABS-Like |
ABS-Like is a versatile polyurethane plastic that imitates ABS thermoplastic. Widely used, it's a reliable option suitable for various parts.
|
|
Opaque Elastomer |
Opaque Elastomer is a polyurethane plastic designed to replicate diverse rubber-like substances such as TPE, TPU, and silicone rubber.
|
FAQ :
- What makes JYH’s vacuum casting service unique?
Our vacuum casting service is renowned for its outstanding quality and rapid turnaround.
Our proficient technicians blend decades of expertise with cutting-edge technologies to swiftly
create exceptional prototypes and engineering models. Elevating the appeal of your components
is also within our purview, as we provide an array of finishing services such as machining, media blasting,
printing, painting, and more.
- Can JYH’s design services, industrial design support or product development support as an extension of its vacuum casting services?
Indeed, as a complement to our vacuum casting services, we provide an extended offering specialized in
design-for-manufacturing support. While this service was previously exclusively available for approved orders,
we have now extended it to all incoming RFQs. Additionally, we are pleased to offer light assembly services
tailored to fulfill your specific requirements
- What are JYH’s quality standards for its vacuum casting services?
To guarantee the utmost quality for your completed components, our team follows a rigorous quality control procedure.
This initiates with the validation and thorough testing of all materials. Throughout the production phase, we vigilantly manage
variables such as temperature, humidity, and other processing conditions, aiming to uphold unparalleled uniformity in your parts.
Shipping way:
QC checking before ship the product:
Payment term:
After service:
Package method:
