ISO9001 Vacuum Casting Rapid Prototyping Plastic ABS Rapid Prototype Molding

Vacuum Casting Small Batch Production And ABS Plastic Rapid Prototyping Parts

Vacuum Casting ​:

  Vacuum casting is a swift, budget-friendly method for replicating top-notch plastic parts, akin to injection-molded items. It employs dual-component polyurethanes and silicone molds crafted from a 3D-printed prototype. This approach is ideal for testing fit and function, marketing needs, or producing limited runs of final-use components.

1. Rapid prototyping
       and full-scale production

2. Used in over
       20 countries

3. ISO 9001 accredited


The advantages of Urethane Casting​:

• Suitable for Small Production Runs
• Achieves Consistent Self-Colored Parts
• Minimal InitiaInvestment Required
• Delivers Production-Quality Components
• Wide Array of Material Options
• Enables Creation of Rubber-Like Parts and Over molds

Urethane Casting​ Tolerance Guidelines:

Size limitations for Vacuum Casting:

Vacuum Casting Process

   Creating polyurethane vacuum cast parts involves three main steps: master pattern creation,

mold fabrication, and part casting.

1. Master Pattern Creation:

   Crafting patterns from your CAD designs is the initial step. These 3D solids are made through CNC machining or 3D plastic printing like SLA/SLS. You can provide patterns or let us create them. Patterns should endure up to 50°C heat.

2. Mold Fabrication:

   Liquid silicone forms the casting molds. It's poured around the master pattern within a casting box, cured in an oven for 15 hours. Afterward, the mold is opened, and the master pattern is removed, yielding a negative cavity mirroring the original. Our silicone molds typically yield around 25 copies of the master pattern.

Our Vacuum Casting Services

Experience high-quality production parts with Vacuum Casting, also known as Urethane or Polyurethane casting. At HLH, we offer a vast selection of plastic materials and can cast parts ranging from small headphones to large 2-meter car bumpers. Skip the lengthy lead times and tooling costs – choose Vacuum Casting for efficient solutions.

How does vacuum casting work?

The process involves 3 main stages:

• Building a master model
• Creating the silicone tool and
• Producing the parts

Building a master model:   To achieve precise results in vacuum casting, start with a top-notch master model. Crafted via 3D printing or CNC machining, it's meticulously refined for ideal surface texture and detail replication.
Creating the silicone mould tool:   Create precise silicone molds by encasing the master model in a casting box filled with liquid silicone. Maintain a 40°C temperature for 8-16 hours until the silicone sets. Once cured, cut open the mold to reveal a perfect fit for your master model.
Producing the parts:   Fill the hollow mold with polyurethane (PU) resin through a funnel to ensure even distribution and prevent air bubbles. Seal the mold and let it cure at 70°C in a casting machine. After cooling, remove the shaped material, and perform any required post-processing. Typically, this process can be repeated 10-20 times before the mold's shape starts to deteriorate, affecting accuracy.

Why Choose JYH- precision for Urethane Casting Parts​ Services?

   In the realm of vacuum casting, a multitude of manufacturers are available for selection. Opting for the correct one holds

paramount importance to achieve your anticipated outcomes. Consider the following factors that make JYH an ideal

choice for your vacuum casting requirements.

Vacuum Casting Materials

Materials

Select from a wide range of materials for your vacuum casting projects at JYH.

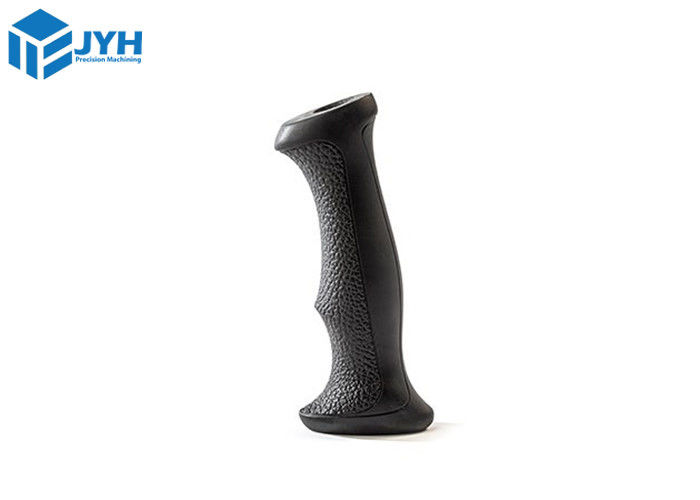

• Rubber-like Polyurethanes

DESCRIPTION

Our versatile rubber-like polyurethanes, when paired with silicone molds, create premium prototypes and small batches of end-use parts with diverse material properties.

KEY CHARACTERISTICS

• Superb surface quality, similar to TPE, TPU, and silicone rubber.
• Great for shock absorption needs.
• Cost-effective for prototypes or small batches.
• Max part size: 1,900 x 900 x 750 mm (max volume: 10 liters).

• ABS-like Polyurethanes

DESCRIPTION

Our ABS-like polyurethanes offer diverse material properties for creating high-quality prototypes or small production runs using silicone molds.

KEY CHARACTERISTICS

• High-quality surface and intricate details, mimicking injection molding.
• Materials are flame-retardant, food-safe, and UV-resistant.
• Affordable for prototypes or small production runs .
• Max part size: 1,900 x 900 x 750 mm (max volume: 10 liters).

• PE/PP-like Polyurethanes

DESCRIPTION

Our versatile PE/PP-like polyurethanes, when paired with silicone molds, create top-notch prototypes and small batches of final parts.

KEY CHARACTERISTICS

• Superb surface detail, injection-molded appearance, and lightweight strength.
• Offers various cost-effective finishes.
• Ideal for prototyping and small production runs.
• Max part size: 1,900 x 900 x 750 mm (max volume: 10 liters).

Benefits Of Vacuum Casting

Vacuum casting offers efficient manufacturing of intricate shapes with high precision, cost-effectiveness, and versatility:

• Easily create complex shapes with precision.
• Simultaneously produce multiple components for enhanced efficiency.
• Rapidly prototype using quality urethane for small batches.
• Diverse material properties with different polyurethanes.
• Economical manufacturing due to low polyurethane costs.
• Efficient silicone mold production compared to metal molds.

In the end

Vacuum casting offers cost-effective, efficient production compared to traditional methods like injection molding and die casting. It excels in small batch production and rapid prototyping due to its low cost.

However, it's less efficient for mass production as it's limited to casting a small number of products at once. Vacuum casting is perfect for custom, low-volume manufacturing due to its adaptability and versatility.
