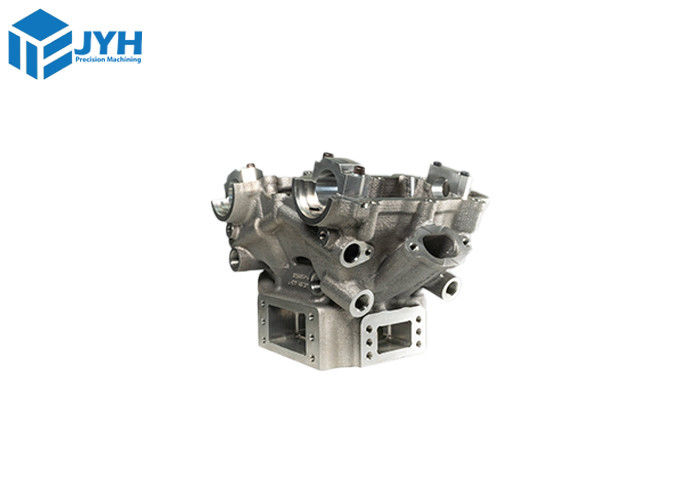

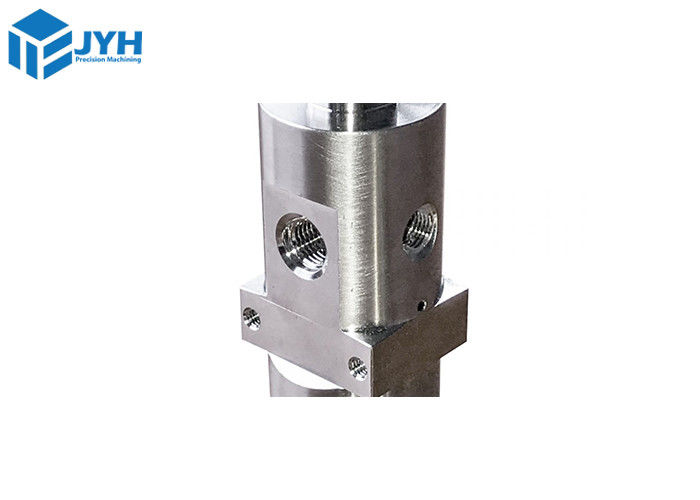

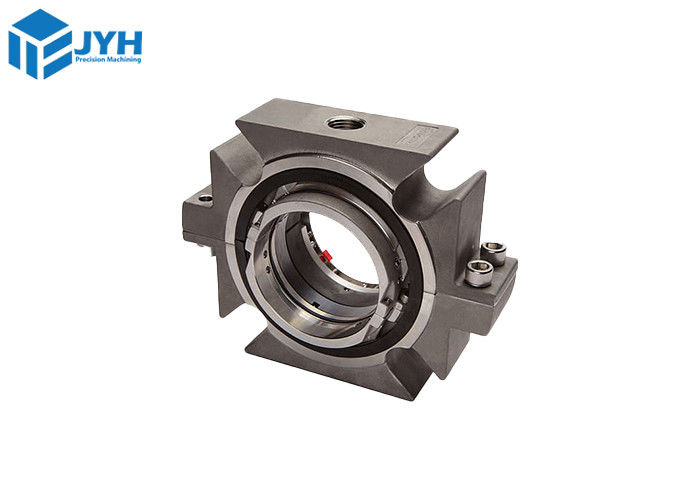

Precise CNC 5 Axis CNC Machining Services Metal Prototype For UAV Parts

Place of Origin China
Brand Name JYH Technology
Certification ISO9001 Certificate of quality system/16949
Model Number metal prototype
Minimum Order Quantity 1 Piece
Price USD 10-200 pieces
Packaging Details For small parcels less than 25KG, we generally adopt paper cartons; For goods over 25KG, we will use custom wooden cases.
Delivery Time 2-5 works day
Payment Terms T/T/Paypal, Western Union
Supply Ability 1000 pieces one week

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name 5 Axis CNC Machining UAV Parts Tolerance +/-0.001 Mm To +/-0.005mm
Lead Time 5-10 Working Days Material AL 6061-T6 Serie/Stainless Steel/Magnesium Alloy/Titanium Alloy/Copper
Express Way DHL/FEDEX/UPS Process Way CNC 5 Axis Machining/Lathe/milling/Turning
Surface Finish Anodized/Electroplating/Passivation/Blackening And So On Payment Choose T/T & Paypal
High Light

Precise 5 Axis CNC Machining Services

,

Aerospace parts 5 Axis CNC Machining Services

,

CNC 5 Axis CNC Machining Parts

Leave a Message
Product Description

5 Axis CNC Machining Services For Precise Complex Products To Test Prototype







Our ISO 9001 certification shows that we fabricate 5-axis milled parts to meet the tightest tolerance requirements.

Our standard tolerance for CNC-milled plastics is ISO-2768-m and ISO-2768-f for metals.

Get high-quality and precise complex parts with top-notch dimensional stability.

5-axis machining services offer unparallel speed and flexibility.



Our experienced team and manufacturing capabilities help rapidly design and fabricate complex, time-sensitive components.

With world-class equipment, expertise, and experience, JYH uses two outstanding setups to provide precise, complex parts.



Try JYH technology Now! All information are secure and confidential by us!





Parts Certifications






ISO 9001:215 | AS9100D | ITAR Registered



►Free & Automatic DFM feedback
►Tolerances down to ±0.0004″ (0.01mm)
►24/7 engineering support



Precise CNC 5 Axis CNC Machining Services  Metal Prototype For UAV Parts 0







5 Axis CNC Machining Facilities





JYH implements strict quality control protocols to ensure that every client receives superior-quality products.

We have dedicated workshops with state-of-the-art equipment for a wide range of operations.

This way, we incorporate meticulous inspection in our 5-axis CNC machining processes.



Precise CNC 5 Axis CNC Machining Services  Metal Prototype For UAV Parts 1







Simultaneous 5 Axis CNC Machining



3+2 Axis CNC Machining
♦Fast, effective, and continuous 5-axis CNC machining with improved transitioning and surface quality. Here, we use 5-axis machining center that can continuously adjust the movements on all five axes without stopping. Our 5-axis CNC machining has intelligent functionalities to ensure efficient continuous processes and transitions. ♦Take advantage of the optimal 3+2 axis machining technology for your applications. The process keeps the part fixed in a specific orientation to allow the usual 3-axis machining process. Our 3+2 axis machining uses shorter, more rigid cutting tools to offer the parts better dimensional stability. Get complex CNC machined parts with tight tolerances at lower costs and cycle time.







Tolerance for 5 Axis CNC Machining Services





Type

Tolerance
Linear dimension

+/- 0.015 mm
+/- 0.002 inch

Hole diameters (not reamed) +/- 0.015 mm
+/- 0.002 inch

Shaft diameters +/- 0.015 mm
+/- 0.002 inch

Part size's limit 860 * 660 *650 mm
39.0 * 23.5 * 23.5 inch







5 Axis CNC Machining Part Size Standards



Classification Minimum Size (mm) Maximum Size (mm) Common Applications
Ultra-Precision Components 0.1 1 Watch components, micro devices
Micro Machined Parts 1.1 10 Medical devices, small electronics
Small Machined Parts 10.1 50 Aerospace, automotive sensors
Medium Machined Parts 50.1 200 Automotive, defense, industrial tools
Large Machined Parts 200.1 1000+ Heavy machinery, construction





The five axes in 5-axis CNC machining refer to the following directions of movement:



  • X-axis: Horizontal movement from left to right.
  • Y-axis: Horizontal movement from front to back.
  • Z-axis: Vertical movement up and down.
  • A-axis: Rotational movement around the X-axis.
  • B-axis: Rotational movement around the Y-axis.



Surface Finish Options for 5 Axis CNC Machining Parts





Our part finishing services are exceptional as our teams are experts in plastic, composite, and

metal surface finishing.Furthermore, we have state-of-the-art machines and infrastructure to bring your idea to life.



Precise CNC 5 Axis CNC Machining Services  Metal Prototype For UAV Parts 2



Applications of 5 Axis Milling





Our 5-axis milling services is your best bet when it comes to manufacturing complex, highly precise components

for a wide range of industries. Our manufacturing capabilities allow us to accelerate the production of several components,

including:





►Automotive components: Engine housing, light guides, valves, engine covers, inspection jigs;


►Aerospace parts: Fuselage sections, bulkheads, landing gear components
Medical and Surgical tools: Forceps, scalpels, spacers, clamps, cutters, surgical scissors;


►Military components: Submarine parts, turbine blades, engine parts, weapons, sensors;
Military components: Submarine parts, turbine blades, engine parts, weapons, sensors.






Quality Inspection



  • In addition to our stringent in-process controls, all components must pass a thorough final inspection.

we have a coordinate measuring machine, salt spray testing machines, profile projectors and other precision

measuring devices, etc.



  • Customers' CAD drawings can be directly imported in the coordinate measuring machines (CMM) for a

direct comparison to the dimensions that are taken from the physical part.



  • All testing is conducted in a 20 degree Celsius climate-controlled inspection room and the CMM is calibrated to

GB/T 16857.2-2006 (ISO10360-2:2001) standards. All components and sub-assemblies are 100% inspected,

identified with a logo if required and a final inspection is generated pertaining to all the critical dimensions.



Precise CNC 5 Axis CNC Machining Services  Metal Prototype For UAV Parts 3



Our payment method



Precise CNC 5 Axis CNC Machining Services  Metal Prototype For UAV Parts 4





Our shipping method



Precise CNC 5 Axis CNC Machining Services  Metal Prototype For UAV Parts 5



Frequently Asked Questions





► When should I choose 5-axis CNC machining?



The flexibility of 5-axis CNC machining allows the creation of complex components with complex shapes and geometrical details.

The stability of the machining tool also gives more consistent and smoother surface finishes.

Therefore, you should choose 5-axis machining whenever you need to produce complex parts with tight tolerances.







► What’s the maximum part size for 5-axis CNC machining?



Our 5-axis milling machines can accommodate a length of 42 inches bar stock.

This allows us to work on a wide range of projects for various applications.



► How much does your CNC machining service cost?



The cost of your CNC machining projects is not fixed as it depends on the characteristics of your project

such as the design, and tolerances. Machining times of the material to be used in the project also contribute to this pricing.

For example, if you’re making a part that has a combined machining and material cost of $2 and a setup cost of $200,

one part will cost $202. However, if you make 200 parts, each would cost $3!






Our workshop



Precise CNC 5 Axis CNC Machining Services  Metal Prototype For UAV Parts 6

Precise CNC 5 Axis CNC Machining Services  Metal Prototype For UAV Parts 7





   JYH technology, Your Professional CNC Machining Low Volume Manufacturing Services Partner!
