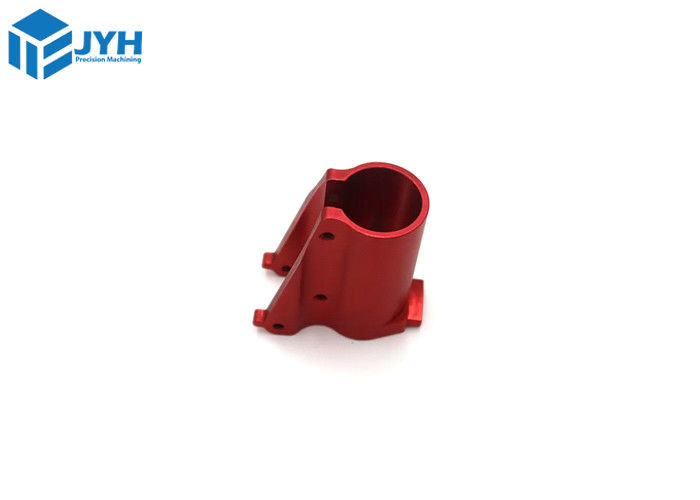

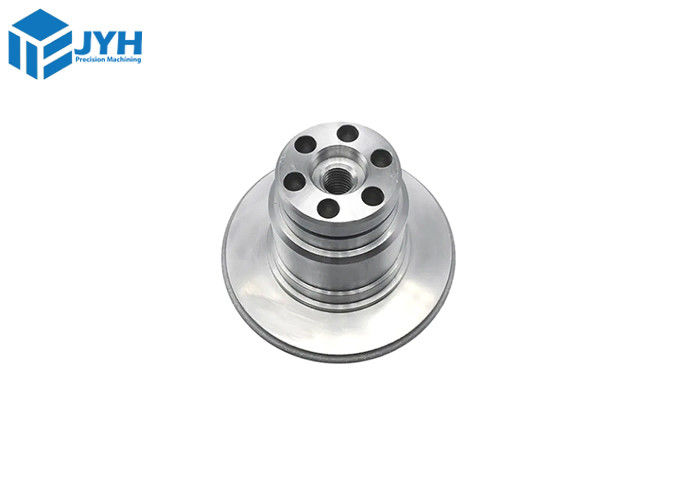

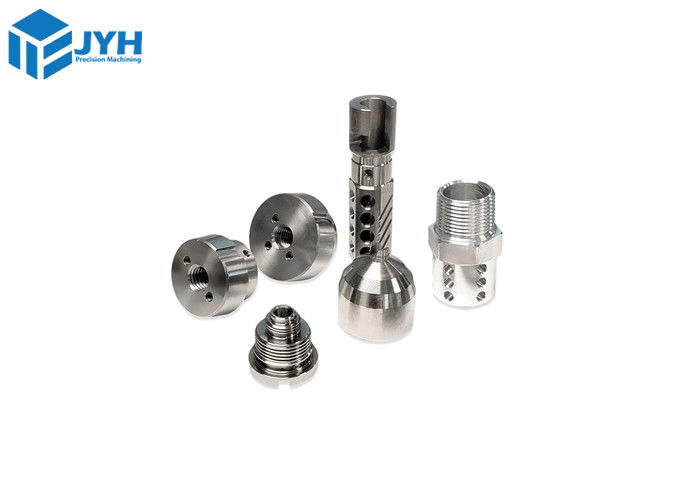

5 Axis CNC Machining Aerospace Parts Services With Corrosion Resistant Material
| Place of Origin | China |
|---|---|
| Brand Name | JYH Technology |
| Certification | ISO9001 Certificate of quality system/16949 |
| Model Number | metal prototype |
| Minimum Order Quantity | 1 Piece |
| Price | USD 10-200 pieces |
| Packaging Details | For small parcels less than 25KG, we generally adopt paper cartons; For goods over 25KG, we will use custom wooden cases. |
| Delivery Time | 2-5 works day |
| Payment Terms | T/T/Paypal, Western Union |
| Supply Ability | 1000 pieces one week |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Tolerance | +/-0.001 Mm To +/-0.005mm | Express Way | DHL/FEDEX/UPS |
|---|---|---|---|
| Lead Time | 5-10 Working Days | Material | AL 6061 Serie/Stainless Steel/Magnesium Alloy/Titanium Alloy/Copper |
| Process Way | CNC 5 Axis Machining/Lathe/milling/Turning | Surface Finish | Anodized/Electroplating/Passivation/Blackening And So On |
| High Light | 5 Axis CNC Machining Aerospace Parts,CNC Machining Aerospace Parts Corrosion Resistant,5 Axis aerospace cnc machined parts |
||
Product Description
5 Axis CNC Machining Aerospace Parts Services With Corrosion Resistant Material
Our ISO 9001 certification shows that we fabricate 5-axis machining parts to meet the tightest tolerance requirements.
Our standard tolerance for CNC milling plastics is ISO-2768-M and ISO-2768-F for metals.
Get high-quality and precise complex parts with top-notch dimensional stability.
5 axis machining services offer unparallel speed and flexibility.
Parts Certifications
ISO 9001:2015 | AS9100D | ITAR Registered
►Free & Automatic DFM feedback
►Tolerances down to ±0.0004″ (0.01mm)
►24/7 engineering support
5 Axis CNC Machining Facilities
JYH implements strict quality control protocols to ensure that every client receives superior-quality products.
We have dedicated workshops with state-of-the-art equipment for a wide range of operations.
This way, we incorporate meticulous inspection in our 5-axis CNC machining processes.
|
Simultaneous 5 Axis CNC Machining
|
3+2 Axis CNC Machining |
| ♦Fast, effective, and continuous 5-axis CNC machining with improved transitioning and surface quality. Here, we use 5-axis machining center that can continuously adjust the movements on all five axes without stopping. Our 5-axis CNC machining has intelligent functionalities to ensure efficient continuous processes and transitions. | ♦Take advantage of the optimal 3+2 axis machining technology for your applications. The process keeps the part fixed in a specific orientation to allow the usual 3-axis machining process. Our 3+2 axis machining uses shorter, more rigid cutting tools to offer the parts better dimensional stability. Get complex CNC machined parts with tight tolerances at lower costs and cycle time. |
Product Advantages:
- High Precision: Our 5-axis machines can achieve complex geometries and tight tolerances, ensuring accurate.
- Versatility: We can work with various materials, allowing for flexibility in meeting different project needs.
- Efficiency: The 5-axis capability reduces the need for multiple setups, minimizing production time and costs.
- Complex Designs: Our technology enables the machining of intricate and challenging designs.
Tolerance for 5 Axis CNC Machining Services
| Type |
Tolerance |
| Linear dimension |
+/- 0.015 mm +/- 0.002 inch |
| Hole diameters (not reamed) | +/- 0.015 mm +/- 0.002 inch |
| Shaft diameters | +/- 0.015 mm +/- 0.002 inch |
| Part size's limit | 860 * 660 *650 mm 39.0 * 23.5 * 23.5 inch |
CNC 5 Axis CNC Machining Capabilities:
| Item |
Factory Capabilities
|
Network Capabilities |
| Maximum Part Size | 22 in. x 14 in. x 3.75 in. (559mm x 356mm x 95.3mm) | 25.5 in. x 25.5 in. x 11.8 in. (650mm x 650mm x 300mm) |
| Minimum Part Size | 0.25 in. x 0.25 in (6.35mm x 6.35mm) | 0.019 in. (0.50mm) |
| Tolerances | +/- 0.005 in. (+/- 0.13mm) | +/-0.001 in. (0.020mm) |
| Radious | Sharp inside corners on a part will be radius (rounded) as a natural result of the CNC machining process. | |
| Text |
Plastic and soft metals:
Minimum width of 0.018 in. (0.457mm), depth of 0.0118 in. (0.3mm). Example text size would be 16 point Arial Rounded MT font.
Hard metals:
Minimum width of 0.033 in. (0.838mm) and depth of 0.0118 in. (0.3mm). Example text size would be 22 point Arial Rounded MT font.
Hard metals:
Minimum width of 0.033 in. (0.838mm) and depth of 0.0118 in. (0.3mm). Example text size would be 22 point Arial Rounded MT font.
|
|
CNC PROCESS FLOW DIAGRAM
The CNC process flow for JYH Precision Machining, like many precision machining companies,
involves several key steps to turn raw materials into finished precision parts.
Here's a general overview of the CNC process flow:
- Design and Engineering
- Material Procurement
- Programming
- Tool Selection
- Setup
- Machining
- Quality Control
- Secondary Operations
- Final Inspection
Surface Finish Options for 5 Axis CNC Machining Parts
Our part finishing services are exceptional as our teams are experts in plastic, composite, and
metal surface finishing.Furthermore, we have state-of-the-art machines and infrastructure to bring your idea to life.
Applications of 5 Axis Milling
Our 5-axis milling services is your best bet when it comes to manufacturing complex, highly precise components
for a wide range of industries. Our manufacturing capabilities allow us to accelerate the production of several components,
including:
►Automotive components: Engine housing, light guides, valves, engine covers, inspection jigs;
►Aerospace parts: Fuselage sections, bulkheads, landing gear components
Medical and Surgical tools: Forceps, scalpels, spacers, clamps, cutters, surgical scissors;
►Military components: Submarine parts, turbine blades, engine parts, weapons, sensors;
Military components: Submarine parts, turbine blades, engine parts, weapons, sensors.
Quality Inspection
- In addition to our stringent in-process controls, all components must pass a thorough final inspection.
we have a coordinate measuring machine, salt spray testing machines, profile projectors and other precision
measuring devices, etc.
- Customers' CAD drawings can be directly imported in the coordinate measuring machines (CMM) for a
direct comparison to the dimensions that are taken from the physical part.
- All testing is conducted in a 20 degree Celsius climate-controlled inspection room and the CMM is calibrated to
GB/T 16857.2-2006 (ISO10360-2:2001) standards. All components and sub-assemblies are 100% inspected,
identified with a logo if required and a final inspection is generated pertaining to all the critical dimensions.
Our payment method
Our shipping method
Frequently Asked Questions
► When should I choose 5-axis CNC machining?
The flexibility of 5-axis CNC machining allows the creation of complex components with complex shapes and geometrical details.
The stability of the machining tool also gives more consistent and smoother surface finishes.
Therefore, you should choose 5-axis machining whenever you need to produce complex parts with tight tolerances.
► What’s the maximum part size for 5-axis CNC machining?
Our 5-axis milling machines can accommodate a length of 42 inches bar stock.
This allows us to work on a wide range of projects for various applications.
► How much does your CNC machining service cost?
The cost of your CNC machining projects is not fixed as it depends on the characteristics of your project
such as the design, and tolerances. Machining times of the material to be used in the project also contribute to this pricing.
For example, if you’re making a part that has a combined machining and material cost of $2 and a setup cost of $200,
one part will cost $202. However, if you make 200 parts, each would cost $3!
