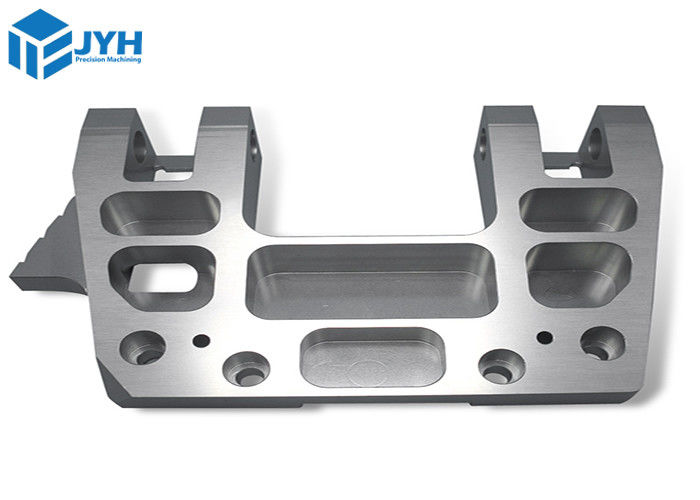

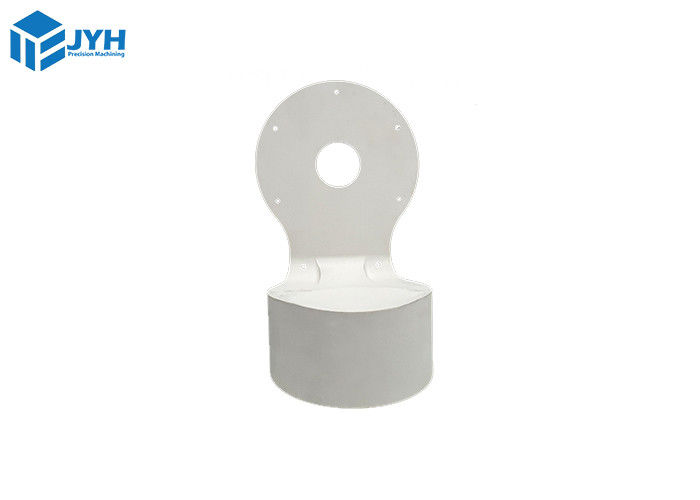

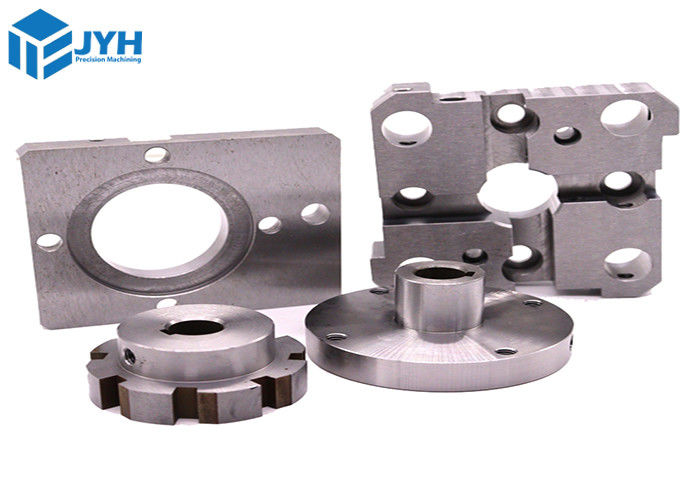

Precision Complex 5 Axis High Speed CNC Machining Electroplating Parts

Place of Origin China
Brand Name JYH Technology
Certification ISO9001 Certificate of quality system/16949
Model Number metal prototype
Minimum Order Quantity 1 Piece
Price USD 10-200 pieces
Packaging Details For small parcels less than 25KG, we generally adopt paper cartons; For goods over 25KG, we will use custom wooden cases.
Delivery Time 2-5 works day
Payment Terms T/T/Paypal, Western Union
Supply Ability 1000 pieces one week

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Tolerance +/-0.001 Mm To +/-0.005mm Express Way DHL/FEDEX/UPS
Lead Time 5-10 Working Days Material AL 6061 Serie/Stainless Steel/Magnesium Alloy/Titanium Alloy/Copper
Process Way CNC 5 Axis Machining/Lathe/milling/Turning Surface Finish Anodized/Electroplating/Passivation/Blackening And So On
High Light

5 Axis High Speed Cnc Machining Electroplating

,

JYH 5 Axis High Speed CNC Machining

,

cnc machining axis Electroplating

Leave a Message
Product Description

5 Axis CNC Machining Services For Precision Complex Design Sample And Prototypes







Get high-precision, accuracy, intricate machined parts with extremely complex geometries with our 5 axis

CNC machining services. Competitive pricing and fast turnaround.





Parts Certifications






ISO 9001:215 | AS9100D | ITAR Registered



Precision Complex 5 Axis High Speed CNC Machining Electroplating Parts 0





►Free & Automatic DFM feedback
►Tolerances down to ±0.0004″ (0.01mm)
►24/7 engineering support





5 Axis CNC Machining Facilities



JYH implements strict quality control protocols to ensure that every client receives superior-quality products.





Precision Complex 5 Axis High Speed CNC Machining Electroplating Parts 1

Precision Complex 5 Axis High Speed CNC Machining Electroplating Parts 2



Tolerance for 5 Axis CNC Machining Services





Type

Tolerance
Linear dimension

+/- 0.015 mm
+/- 0.002 inch


Hole diameters (not reamed) +/- 0.015 mm
+/- 0.002 inch


Shaft diameters +/- 0.015 mm
+/- 0.002 inch


Part size's limit 850 * 650 *550 mm
39.0 * 23.5 * 23.5 inch







5 Axis CNC Machining Part Size Standards



Classification Minimum Size (mm) Maximum Size (mm) Common Applications
Ultra-Precision Components 0.1 1 Watch components, micro devices
Micro Machined Parts 1.1 10 Medical devices, small electronics
Small Machined Parts 10.1 50 Aerospace, automotive sensors
Medium Machined Parts 50.1 200 Automotive, defense, industrial tools
Large Machined Parts 200.1 1000+ Heavy machinery, construction



Surface Finish Options for 5 Axis CNC Machining Services





Our part finishing services are exceptional as our teams are experts in plastic, composite, and metal surface finishing.

Furthermore, we have state-of-the-art machines and infrastructure to bring your idea to life.



Precision Complex 5 Axis High Speed CNC Machining Electroplating Parts 3



Applications of 5 Axis Milling





Our 5-axis milling services is your best bet when it comes to manufacturing complex, highly precise components

for a wide range of industries. Our manufacturing capabilities allow us to accelerate the production of several components,

including:





►Automotive components: Engine housing, light guides, valves, engine covers, inspection jigs;


►Aerospace parts: Fuselage sections, bulkheads, landing gear components
Medical and Surgical tools: Forceps, scalpels, spacers, clamps, cutters, surgical scissors;


►Military components: Submarine parts, turbine blades, engine parts, weapons, sensors;
Military components: Submarine parts, turbine blades, engine parts, weapons, sensors.










Quality Inspection



  • In addition to our stringent in-process controls, all components must pass a thorough final inspection.

we have a coordinate measuring machine, salt spray testing machines, profile projectors and other precision

measuring devices, etc.



  • Customers' CAD drawings can be directly imported in the coordinate measuring machines (CMM) for a

direct comparison to the dimensions that are taken from the physical part.



  • All testing is conducted in a 20 degree Celsius climate-controlled inspection room and the CMM is calibrated to

GB/T 16857.2-2006 (ISO10360-2:2001) standards. All components and sub-assemblies are 100% inspected,

identified with a logo if required and a final inspection is generated pertaining to all the critical dimensions.



Precision Complex 5 Axis High Speed CNC Machining Electroplating Parts 4



Our payment method



Precision Complex 5 Axis High Speed CNC Machining Electroplating Parts 5





Our shipping method



Precision Complex 5 Axis High Speed CNC Machining Electroplating Parts 6



Frequently Asked Questions





► When should I choose 5-axis CNC machining?



The flexibility of 5-axis CNC machining allows the creation of complex components with complex shapes and geometrical details.

The stability of the machining tool also gives more consistent and smoother surface finishes.

Therefore, you should choose 5-axis machining whenever you need to produce complex parts with tight tolerances.







► What’s the maximum part size for 5-axis CNC machining?



Our 5-axis milling machines can accommodate a length of 42 inches bar stock.

This allows us to work on a wide range of projects for various applications.



► How much does your CNC machining service cost?



The cost of your CNC machining projects is not fixed as it depends on the characteristics of your project

such as the design, and tolerances. Machining times of the material to be used in the project also contribute to this pricing.

For example, if you’re making a part that has a combined machining and material cost of $2 and a setup cost of $200,

one part will cost $202. However, if you make 200 parts, each would cost $3!






Our workshop



Precision Complex 5 Axis High Speed CNC Machining Electroplating Parts 7





   JYH technology, Your Professional CNC Machining Low Volume Manufacturing Services Partner!
